- Plasma bag capacity (250 ml): 30 (single layer); 60 (double layer)
- Plasma bag capacity (850 ml): 20 (single layer)
- Set Temperature: – 50°C
- Freezing time to -30°C (250 ml): 26 min
- Freezing time to -30°C (850 ml): 45 min
- Operating temp. (pre-cooling): -40 °C
- Operating temp. (ECO): -43 °C
- Climate class (ambient temperature range): +10°C to +32°C
- Certifications: EU MDR Class IIa | SCoPE | US FDA Class II
- Cooling technology: Plates conduction
- External dimensions (WxDxH): 42.5 x 32.7 x 75.2 in | 1080 x 830 x 1910 mm
- Net weight: 1323 lb | 600 kg
- Frequency: 50-60 Hz
- Supply voltage: 380-400V
- Energy consumption: 0.7 kWh/24h
- Noise level: 73 dB
- Refrigerant Type: R449a
- Display: 7" touchscreen screen
- Remote monitoring: °B Connected software
- Access control: Password or badge
- Data export: SD card | USB port

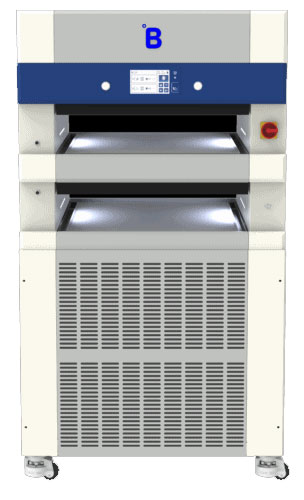

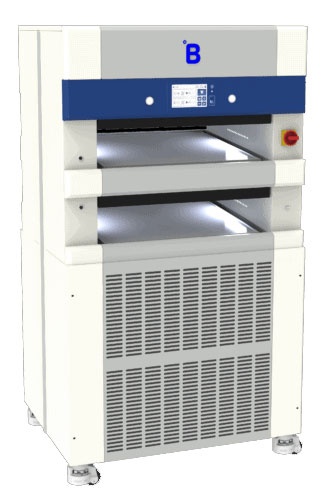

B Medical Systems Plasma Contact Shock Freezer
Item#: CSF61L-380-400-50-60B Medical Systems Plasma Contact Shock Freezers are specifically designed to rapidly freeze plasma in accordance with medical standards for blood banks and transfusion centers. These freezers offer one of the shortest freezing times available on the market and the largest model can freeze 48 bags of 350ml to a core temperature below -30°C in under 30 minutes. Both models, CSF 61 and CSF 101, are classified as medical devices Class II(a) and accredited as AABB standards-compliant.
INNOVATIVE FREEZING TECHNOLOGY
- Two cooling plates inclined at 5° for a superfast freezing cycle
- Two levels that operate independently, allowing simultaneous freezing and defrosting as necessary
- Linear actuators that self-adjust to apply the proper force against your plasma bags
- No exposure to extremely low temperatures, avoiding the crazing of the bags
- Homogeneous cooling of bags despite the presence of air bubbles or uneven filling
HIGH-PERFORMANCE COOLING SYSTEM
- Dual-stage compressors
- Multiple injection valves
- Inclined freezing plates
- Eco mode
- Low environmental impact refrigerant
INTEGRATED MONITORING SOLUTION FOR COMPLETE TRACEABILITY
- °B Connected universal software for remote monitoring, recording, and long-term archiving
- Electronic reports through °B Connected compliant with FDA 21 CFR Part 11
- 7” color touchscreen display at eye level with access to all functions
- Bar code scanner
- Batch management
- Advanced audio-visual alarm system with remote transmission
- USB port and SD card slot for easy export of data
