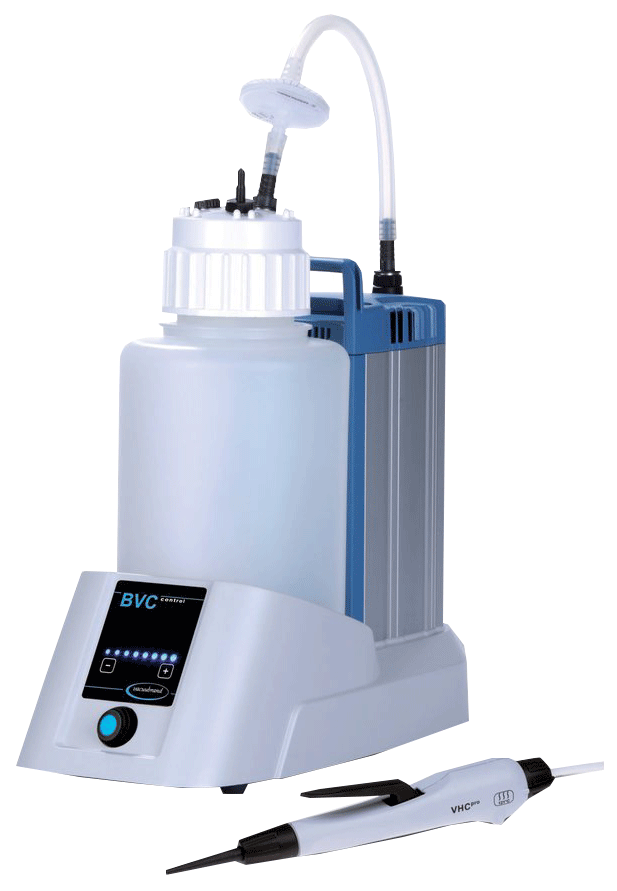

BioChem-VacuuCenter fluid aspiration system BVC control
Item#: 20727203The BioChem-VacuuCenter BVC control serves for efficient and convenient aspiration of supernatants. The vacuum level - and thus the suction force - is exactly adjustable by the electronic touch panel and allows a sensitive and reproducible operation. The chemically resistant diaphragm vacuum pump is automatically turned on and off as needed, which reduces the low noise level even further. The BVC control is available in two complete equipment options with different collection flasks. The 2l borosilicate glass bottle with a protective coating has a very high chemical resistance. For larger amounts of liquids the 4l bottle of unbreakable polypropylene (PP) is used. The smooth surfaces allow an easy cleaning of the systems.
$2,880.00 $2,736.00
- Vacuum controller: Touchpanel
- Number of heads / stages: 1 / 1
- Max. pumping speed at 50/60 Hz: 0.7 / 0.85 (m3/h)
- Max. pumping speed at 50/60 Hz: 0.4 / 0.5 (cfm)
- Ultimate vacuum (abs.): 150 / 112 (mbar/torr)
- Control range: 150 - 850 mbar (adjustable)
- Collection bottle: 4l Polypropylene
- Ambient temperature range (operation): 10 – 40 °C
- Ambient temperature range (storage): -10 – 60 °C
- Max. back pressure (abs.): [bar] 1.1
- Inlet connection: Suction controller
- Outlet connection: Hose nozzle DN 8 mm / silencer
- Rated motor power: 0.04 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Degree of protection: IP 40
- Dimensions: 408L x 194W x 500H (mm)
- Weight: 7.3kg
- Noise level at 50 Hz, typ: 45 dBA
- Items supplied/Included: Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, aspiration hand set VHCpro and protection filter, ready for use with manual.
- Powerful and long-lasting chemistry diaphragm pump for universal economical use
- Extremely compact, space saving and low noise and thus the ideal tool in the workplace
- Easy operation due to electronically adjustable suction power via touch panel, for strong or sensitive suction
- Autoclavable collection bottle designed to reduce aerosol and foam formation; with hydrophobic protection filter 0.2 µm, autoclavable quick-couplings available as accessory
- Ready to accept a second aspiration hand controller (VHCpro) to support two users
Optional Accessories for purchase:
- Protection filter 0.2 µm hydrophob (638266)
- Suction Controller VacuuHandControl VHCpro (688061)
- Extension kit second suction controller connection (699943)
- Quick-fit coupling suction controller to bottle (635807)
- Quick-fit coupling bottle to pump (635808)
