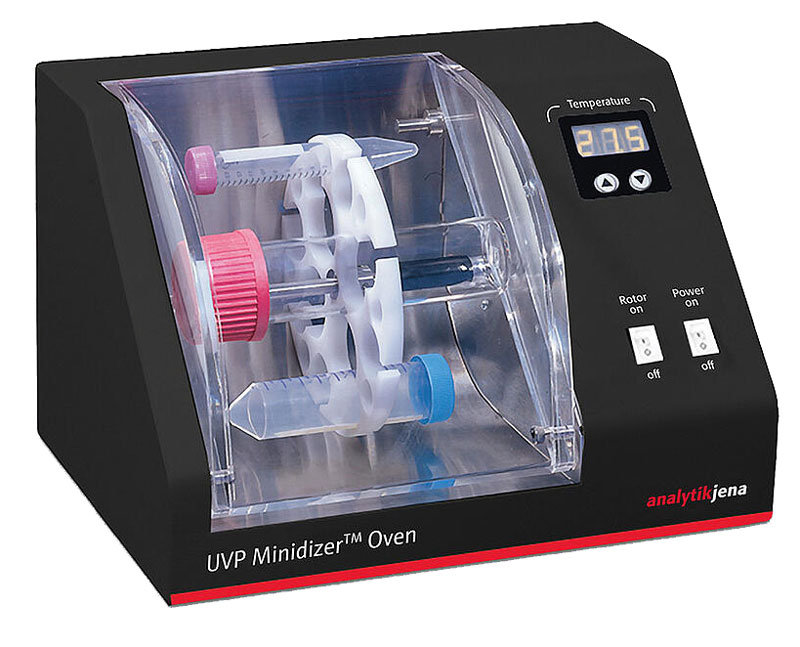

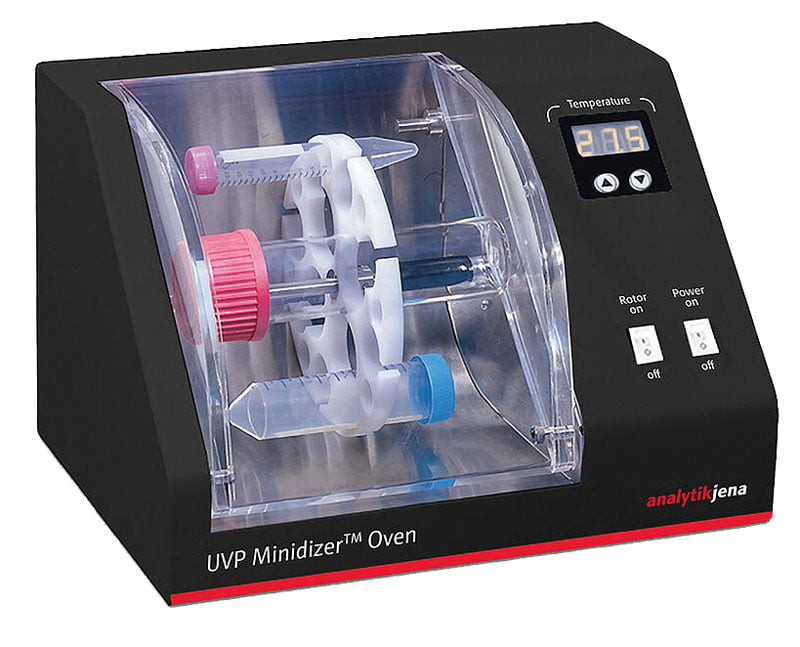

HB-500 Minidizer Hybridization Oven

Item#: 95-0330-01

The HB-500 Minidizer Hybridization Oven is a cost-effective device with low space requirements for temperature incubation of membranes during blotting procedures. The Minidizer operates with a state-of-the-art microprocessor as well as temperature and variable speed controls. The instrument enables consistent saturation of samples, whether for washing or hybridizing. Internal stainless steel construction enables the environment to be easily kept clean. The oven accommodates four 35 x 150 mm bottles, four 50 ml and eight 15 ml conical plastic bottles. The carousel pops out of the chamber for easy insertion or removal of bottles.

Request a Quote

Supplier: UVP

Number of Hybridization chambers: 1
Min. Temperature: 10 °C above RT
Max. Temperature: 80 °C
Temperature Accuracy: ± 0.5° C to 68° C
Temperature Uniformity: ± 0.1° C to 68° C
Rotor Speed: 12 upm
Bottles (30 cm): 4
Bottles (15 cm): 4
50 ml tubes: 5
15 ml tubes: 5
Footprint (W x D): 33 x 20 cm
Height / Weight: 23 cm / 5.1 kg

3/8” thick acrylic door for easy viewing of samples and blocking of ß-emission
Easy to clean interior made of stainless steel
Cover swings open for easy access to the bottle carousel; the carousel pops out of chamber for easy insertion of bottles
Heating element: 500 watts
Maximum power consumption: 475 Watt
