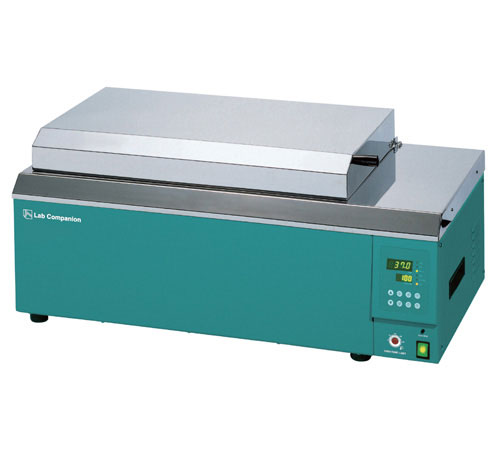

Lab Companion BS-11 Shaking Heating Bath with Spring wire rack and Gable cover (25L)
Item#: AAH44113UShaking Type precision water bath with 180rpm Shaking function
- Temperature control and shaking can be set independently.
- Spring wire Rack as standard accessory.
- 120V 60Hz; 66lbs
$3,850.00 $3,657.50
- Bath volume (L / cu ft): 25 / 0.9
- Temperature
- Working temp. range (℃ / ℉): Amb. +5 to 100 / Amb. +9 to 212
- Temp. stability at 50℃ (±℃ / ℉): 0.1 / 0.18
- Shaking system
- Motion type: Reciprocal
- Frequency (rpm): 20 to 180
- Stroke length (mm / inch): 30 / 1.2 (25, 35 / 1.0, 1.4 available)
- Dimension
- Bath opening / depth (W x L x D) (mm / inch): 319 x 300 x 235 / 12.6×11.8 x 9.3
- Exterior (W x L x H) (mm / inch): 550 x 440 x 355 / 21.7 x 17.3 x 14
- Net weight (kg / lbs): 30 / 66
- Electrical requirements (120V, 60Hz, A): 8.8
- Plug Type: Type B l NEMA 5
- Cat. No.: AAH44113U
Structural Functional Features
- Simultaneous maintains the sample at a precise temperature while providing a reciprocal Shaking environment of up to 180 rpm.
- Excellent temperature variation due to shaking motion.
- Drain valve for easy draining of bath solution.
- Upper part is made of stainless steel and is easy to maintain.
- Convenient for carrying and moving with handles on the left and right sides.
- Vibration is minimized during shaking by using BLDC motor.
- Convenient structure for sample handling due to the dropped location of the internal bath and device control part.
Use Convenience Features
- Simultaneously displays temperature and shaking speed.
- Temperature control and shaking can be set independently.
- Prevents sample run-off thanks to smooth shaking start.
- Microprocessor PID method for precise temperature control.
- Optimized temperature control with temperature autotuning.
- Calibration function minimizes temperature difference.
- Wait On/Off timer. (up to 99 hours 59 minutes)
- Automatic restart of operation when power is restored after sudden power failure.
Outstanding Safety
- Top-rated overheating prevention system.
(registration 10-0397583) - Over temperature limit function.
- Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
Inner Gable Cover
- Standard provided cover minimizes water evaporation.
- Gable roof-shape interior prevents condensed water from falling onto specimen.
- Convenient use at high temperatures with cover handle.

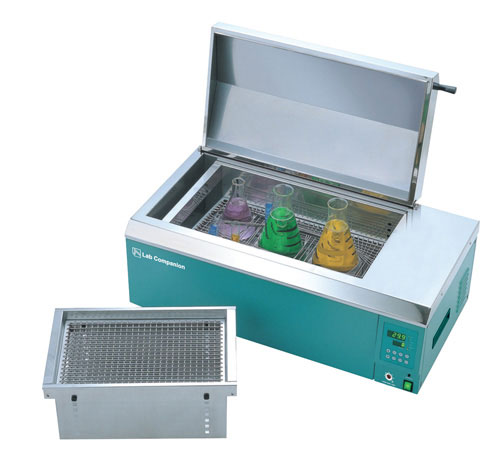

Spring Wire Rack
- One supplied made of stainless steel.
- Easy to maintain as structure makes for convenient attachment to body.
- It has a lattice-shaped double spring structure, which makes it easy to fix various kinds of experiment containers and the height can also be easily adjusted.
