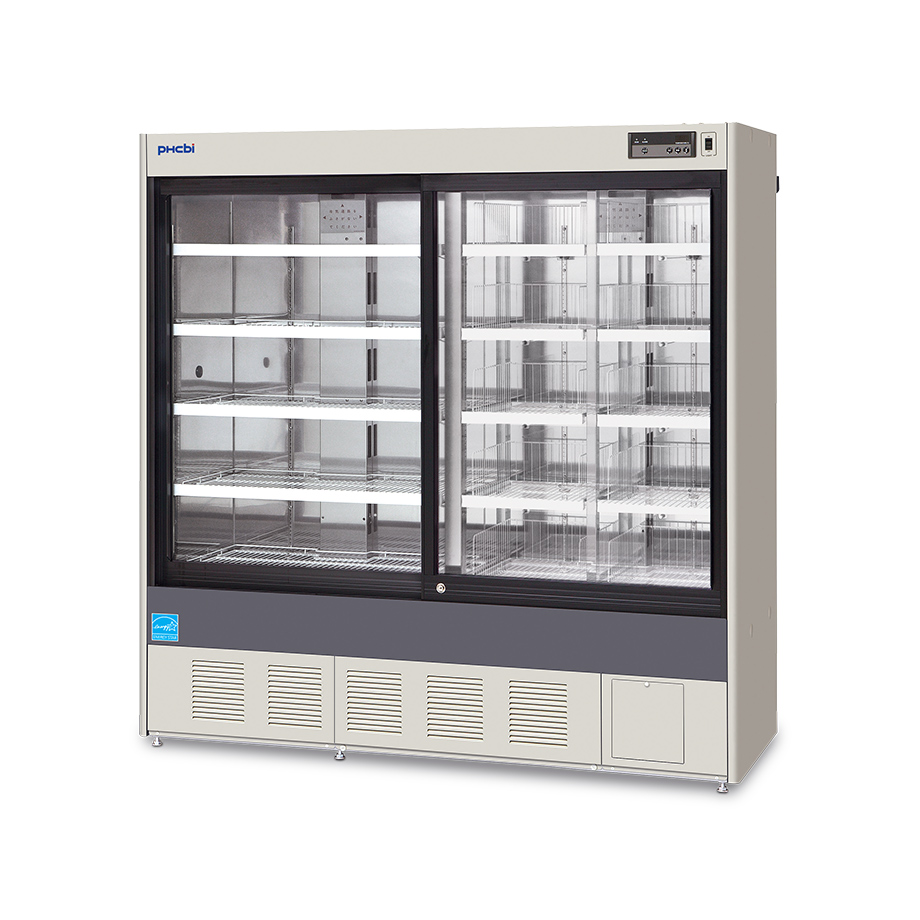

PHCbi MPR Series 36.3 Cu. Ft. Laboratory Refrigerator | Sliding Glass Door | Standard and Roll-Out Shelves

Item#: MPR-1014R-PA

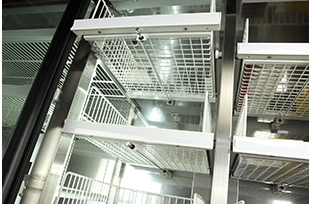

The MPR-1014R-PA Pharmaceutical & Laboratory Refrigerator from PHCbi is designed to meet regulatory guidelines and strict temperature requirements necessary for all of your temperature sensitive storage needs. MPR-1014R-PA refrigerators feature a slim, space-saving profile for easy retrieval of your products, without the concern for swinging door clearances. This refrigerator is also designed with a chemical resistant stainless steel interior and a unique interior layout with 5 adjustable, polyester coated wire shelves and 10 polyester coated roll-out basket shelves. Internal fans ensure gentle air circulation to provide uniform top to bottom temperature control after frequent door openings while a highly efficient hermetic compressor is utilized to provide efficient cooling and maintain a set temperature level. MPR Series Pharmaceutical Refrigerators include features for even the strictest applications with advanced temperature controls, precise uniformity & temperature stability, alarms and monitoring.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
REQUEST A QUOTE
Supplier:
Tags: , , , , , , , , , , , ,
  • Capacity: 36.3 cu. ft. / 1029L
  • Door(s): double sliding, glass
  • Defrost System: cycle
  • Temperature Range: +2°C to +14°C
  • Exterior Dimension: 70.5”H x 70.9”W x 23.6”F-B
  • Interior Dimension: 51.2”H x 66.9”W x 18.3”F-B
  • Alarm: standard
  • Leveling Legs: standard
  • Shelves: 15 total; 5 adjustable, wire shelves (Load: 110 lbs. per shelf) and 10 wire roll-out basket shelves. (Load: 44 lbs. per basket shelf)
  • Door Lock: key lock standard
  • Electrical Requirements: 115V/60 Hz, NEMA 5-15P Plug
  • Access Port: 30 mm on back wall
  • Net Weight: 569 lbs.
  • Warranty: 3 years parts and labor

Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.

  • Wide Operating Range: Temperature readings are displayed in gradients of 1°C for settable temperatures ranging from 2° to 14°C.
  • Microprocessor Controls: Comprehensive set point and alarm, monitoring with diagnostic functions are based on PHC-built microprocessor controller with digital display of all input/ output functions, adjustable temperature range 2°C to 14°C.
  • Validated Storage: PHC's plenum design features uniform cold air flow distribution throughout the chamber to ensure temperature uniformity – essential for validated storage requirements.
  • Ergonomic Design: The ergonomic design of the MPR series refrigerators provides a clear view of stored items through the large framed windows. The slim profile allows for easy reach retrieval of the products.
  • Safety: Audible and flashing LED visual alarms alert you to the unlikely event of either a high or low temperature condition. If the inside temperature rises abnormally, an overshooting prevention circuit automatically switches off the fan motor or heater.
  • Effective Temperature Control: A thermistor sensor monitors temperature inside the chamber. The microprocessor and the electronic temperature controls ensure that the set temperature is maintained. Even with frequent door openings, the circulation fan provides rapid temperature adjustment for a highly reliable, stable preservation environment unaffected by ambient temperature.
  • Cabinet Construction: Due to the space saving design, less installation space is required. The use of two easy-to-open, double-paned sliding glass doors tightly seal to maintain uniformity. Rigid polyurethane foam insulation construction acts to keep cold air inside the unit and effectively protects against the intrusion of warm air. Chemical resistant stainless steel interior surfaces of the cabinet ensure long
  • Warranty: 2 years parts and labor; 3 years compressor parts
Optional Features and Accessories:
  • Single or dual point temperature monitor
  • Digital temperature recorder with data logger
  • Built-in 6”, 7-day chart recorder with pen(s)
  • Free-standing 6”, 7-day chart recorder with pen(s)
  • Chart recorder paper
  • Replacement chart recorder pens
  • Electronic lock
  • Additional access port
  • Glass/window black out tinting
  • 4-20ma Output Module
  • Refrigerator Monitoring - LabAlert™
  • 1 Year Ext. Warr
Optional Validation Services
  • Validation Documents IQ/OQ
  • Validation Documents IQ/OQ/PQ
  • Pre-delivery Calibration
  • Pre-deliver Temperature Mapping
  • Factory Acceptance Test

PHCbi MPR-1014-PA & MPR-1014R-PA Pharmaceutical Refrigerators Spec Sheet

Download

CAD Drawing for Models MPR-1014-PA | MPR-1014R-PA Pharmaceutical Refrigerators

Download

User Manual for Model MPR-1014-PA/MPR-1014R-PA Pharmaceutical Refrigerators

Download

PHCbi Laboratory & Medical Refrigerators and Freezers Brochure

Download

PHCBI Vaccine Storage Brochure

Download

PHCbi Laboratory Equipment Validation Services

Download

PHCbi Refrigerators Warranty

Download

PHCBI Covid-19 Vaccine Storage Solutions Flyer

Download

PHCbi Cold Chain Refrigerator and Biomedical Freezer Portfolio

Download

You may also like…

  •

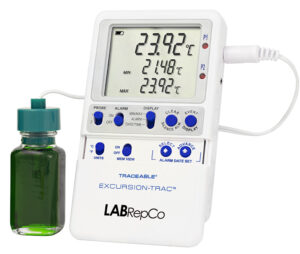

    NIST Traceable® Excursion-Trac™ Refrigerator/Freezer Data Logging Thermometer for Vaccine Storage (1 Probe)

    Item #: LABC3-6430-3 $171.00 $162.45 VIEW PRODUCT

  • Laboratory & Medical Refrigeration Battery Backup Systems

    Item #: BATTERYBACKUP VIEW PRODUCT

Request a Proposal

Related Products

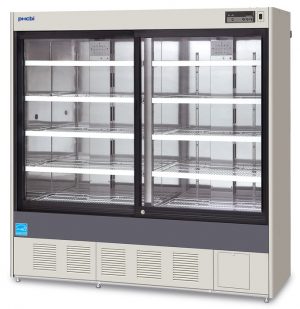

  • PHCbi MPR Series 36.5 Cu. Ft. Laboratory Refrigerator | Sliding Glass Door

    Item #: MPR-1014-PA   VIEW PRODUCT
  • Sale!

    PHCbi MPR Series 12.2 Cu. Ft. Medical-Grade Refrigerator | Sliding Glass Door

    Item #: MPR-S300H-PA $6,211.00 $4,100.00 VIEW PRODUCT
  • Sale! 19.4 Cu. Ft. Pharmaceutical ECO Refrigerator

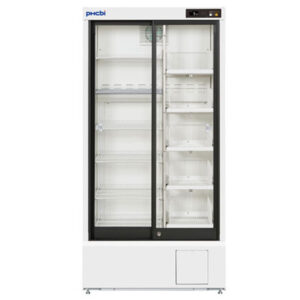

    PHCbi MPR Series 19.4 Cu. Ft. ECO Pharmaceutical Refrigerator | Sliding Glass Door

    Item #: MPR-S500RH-PA $9,546.00 $6,301.00 VIEW PRODUCT
  • Sale!

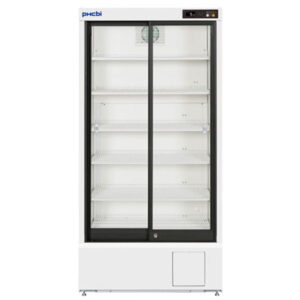

    PHCbi MPR Series 19.5 Cu. Ft. ECO Pharmaceutical Refrigerators | Sliding Glass Door

    Item #: MPR-S500H-PA $8,900.00 $5,874.00 VIEW PRODUCT
  • Sale! Futura PLUS+ Series 38 Cu. Ft. Laboratory Refrigerator Sliding G


    Futura PLUS+ Series 38 Cu. Ft. Laboratory Refrigerator | Sliding Glass Door

    Item #: LABL-38-SG $9,940.00 $7,455.00 VIEW PRODUCT
  • PHCbi formerly Panasonic MPR Series 48 Cu. Ft. Laboratory Refrigerator Hinged Glass Door with Drawers

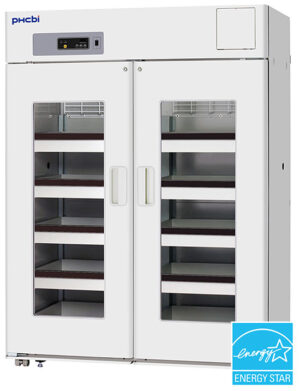

    PHCbi MPR Series 48 Cu. Ft. Laboratory Refrigerator | Hinged Glass Door | Drawers

    Item #: MPR-1412R-PA   VIEW PRODUCT
  • PHCbi formerly Panasonic MPR Series 48 Cu. Ft. Laboratory Refrigerator Hinged Glass Door with shelves

    PHCbi MPR Series 48.2 Cu. Ft. Laboratory Refrigerator | Hinged Glass Door

    Item #: MPR-1412-PA   VIEW PRODUCT
  • Sale!

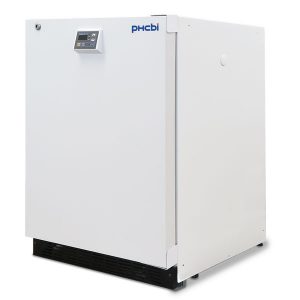

    PHCbi PR Series 5.0 Cu. Ft. Solid Door Undercounter Medical Refrigerator
