- Capacity: 3.0 cu. ft. / 84L
- Area Footprint (nominal): 4.05 sq. ft.
- Door(s): 1 exterior, 1 interior lid
- Storage Capacity:
- 42 standard 2” boxes (42,000 x 2ml vials)
- 30 standard 3” boxes (30,000 x 4ml vials)
- Temperature Range: -60°C to -80°C (in 1°C increments)
- Exterior Dimension: 37.2"H x 21.6"W x 27.0"F-B
- Interior Dimension: 16.7”H x 15.9"W x 19.3”F-B
- Access Port: 2, center, left back wall, and front right chamber floor, 0.6"
- Casters: 4 (2 leveling feet on front base)
- Alarm: standard
- Door Lock: front
- Voltage: 115V, 60Hz
- Net Weight: 148 lbs.
- Warranty: 5 years parts and labor

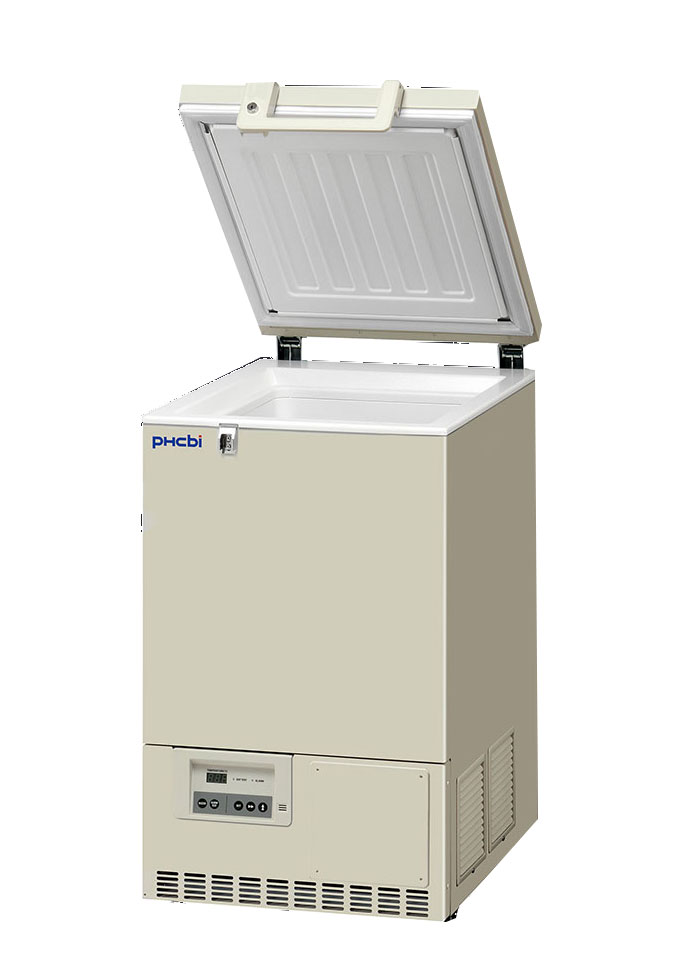

PHCbi VIP® Series 3.0 Cu. Ft. Ultra-Low Temp Chest Freezer (-86°C) | 115V | Capacity: 42 x 2″ Boxes
Item#: MDF-C8V1-PAThe VIP® Series from PHCbi offers a stable, space saving storage solution with improved energy consumption for all of your high value biologicals. The microprocessor controller digitally displays all input/output functions while the high-performance refrigeration system with VIP® PLUS rigid polyurethane foam provides superior temperature uniformity. This ultra-low temp chest freezer maximizes storage capacity within a space-saving footprint while keeping energy consumption to a minimum. In conjunction with the optional liquid nitrogen and CO2 back-up systems, the MDF-C8V1-PA Chest Freezer offers a small volume long-term preservation and storage solution for specimens, components, and materials testing within a hospital and laboratory setting. Freezer racks available for this model, click here to view options.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Enter Promo Code at Checkout: PHCSHIPFREE
$11,585.00 $7,647.00
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Microprocessor Controls:
- Comprehensive set-point, alarm, monitoring, and diagnostic functions based on PHC-built microprocessor controller with digital display of all input/output functions.
- PHC-Designed Refrigeration and Compressors:
- Designed by PHC specifically for rugged ultra-low temperature applications in a laboratory environment. CFC-free refrigerants only.
- High-performance refrigeration system with foam-in-place cabinet insulation maximizes interior temperature uniformity and protects against fluctuating ambient temperatures.
- High Density Blown-In Foam Insulation and Heated Gasket Seal:
- In ultra-low temperature freezers, effective insulation is critical. The insulation used in PHC ultra-low freezers is two layers of rigid, foamed-in-place polyurethane, placed together to form a double-insulation wall. This design prevents the insulation layers from distortion and cracking that might occur due to temperature differences inside and out.
- Frost and icing on the top edges and gaskets are prevented by utilization of a heated mullion, which recycles heat from the refrigeration system without affecting chamber uniformity.
- Built-In Temperature & Power Failure Alarms (Lamp/Buzzer):
- In case of power failure or an irregular rise in temperature, a high capacity, rechargeable battery-operated indicator lamp and alarm will be activated.
- Optional CO2 and LN2 back-up systems are available and are self-activated when a power outage occurs. This equipment helps ensure that the contents will be protected in the event of any power failure or mechanical trouble.
- Warranty: 5 years parts and labor
Optional Features and Accessories:
- CO2 backup system
- 7-day, 6” circular chart recorder
- Chart recorder pens
- Chart recorder paper
- Freezer racks and inventory system
- Freezer monitoring - LabAlert™ System
Optional Validation Services
- Validation Documents IQ/OQ
- Validation Documents IQ/OQ/PQ
- Pre-delivery Calibration
- Pre-deliver Temperature Mapping
- Factory Acceptance Test
- 4-20ma Output Module
