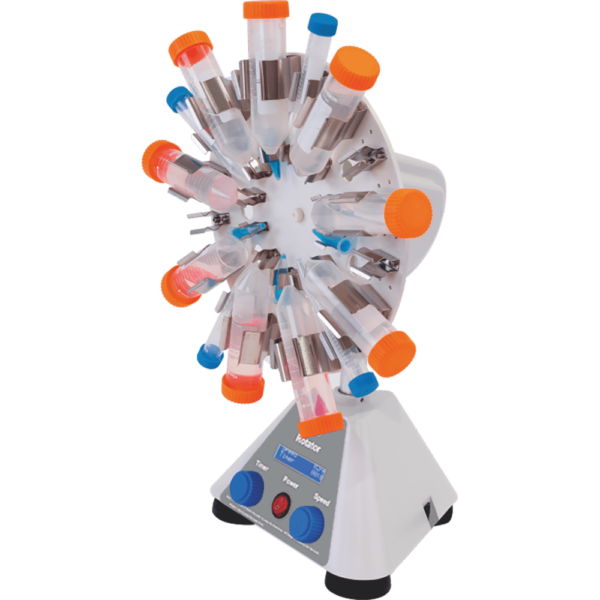

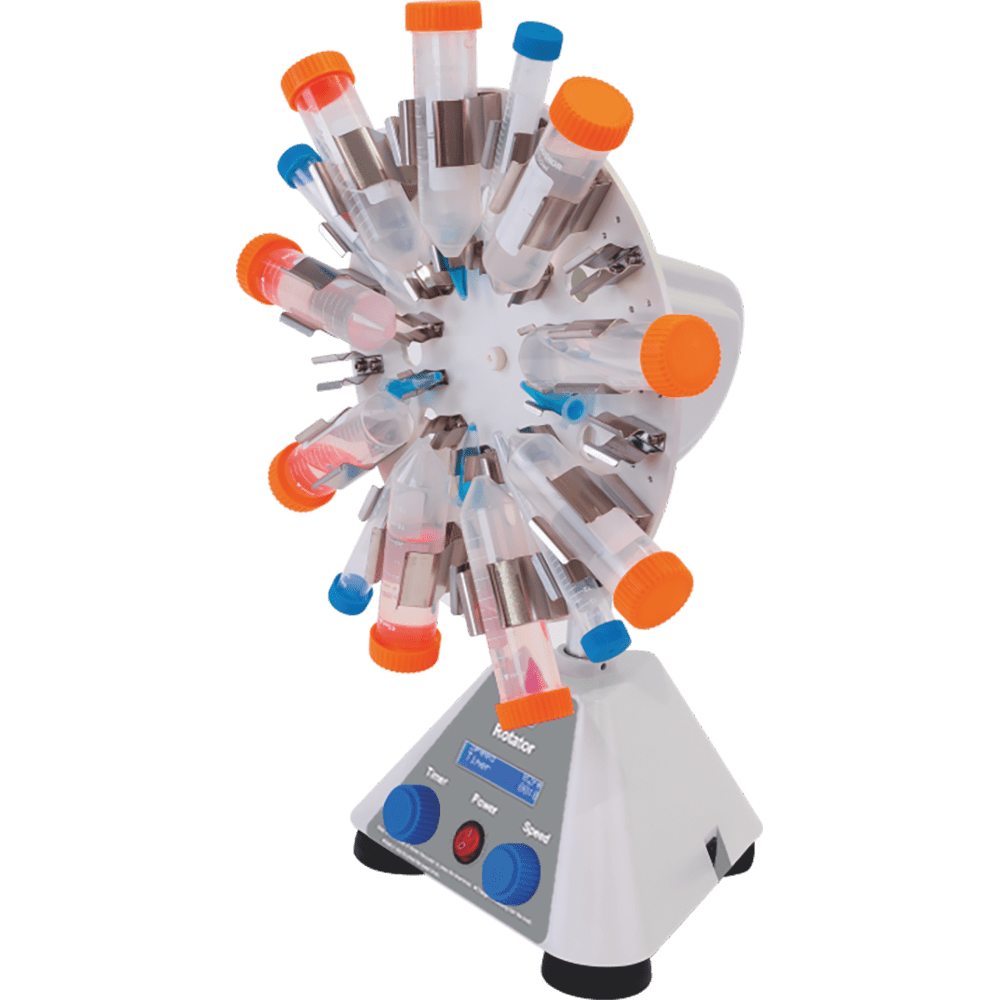

Crystal Tech TR-04UA Adjustable Speed Tube Rotator
Item#: TR-04UACrystal Tech TR-04UA Adjustable Speed Tube Rotator is designed for consistent end over end mixing of biological samples in clinical, research, and academic laboratories. The system provides adjustable rotation speeds, programmable timer control, and an adjustable tilt angle to support a wide range of laboratory protocols including blood sample preparation, reagent mixing, and cell suspension processing.
Key Features
- Adjustable rotation speed from 2 to 80 RPM
- Programmable timer with automatic stop
- Adjustable tilt angle for different mixing protocols
- LCD display for monitoring speed and time
- Compatible with cold rooms and incubators
- High-capacity carousel supports multiple tube sizes
Typical Applications
- Blood sample mixing
- Cell culture preparation
- Reagent blending
- Molecular biology workflows
- Clinical laboratory testing
- Sample preparation for research studies
$891.00 $757.35
- Speed: 2~80 RPM
- Speed Accuracy: ±1 RPM
- Tilt Angle: 90°C~180°C (Any Angle in Range)
- Timer: 0~99h59min
- Carousel Diameter: Ø250mm (Ø9.84in)
- Capacity: 12x50mL / 18x15mL / 48x2mL / 9x50mL + 9x15mL + 12x2mL
- Display: LCD
- Accessories Included in standard Packaging: TRA22 (Carousel for 12x50mL Tubes)
- Ambient Humidity: 5°C~40°C
- Relative Humidity: ≤80%
- Power Supply: AC110V, 60Hz
- Max. Power: 6W
- Dimensions W x D x H: 215 x 334 x 405 mm (13.2 x 8.5 x 15.9 in)
- Net Weight: 4 kg (8.8 lb)
- Protection Level: IP21
- Certifications: CE
- The title angle is adjustable for accommodating different applications
- Variable sizes of Tube Holders and Carousels are available to accommodate various sizes of Tubes
- All units are compatible with a cold room and incubator environment
- TR-04UA and TR-05UA models have speed adjustment, continuous and timer mode with automatic stop
