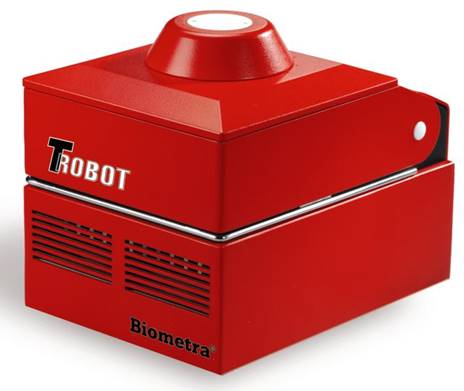

Biometra TRobot 384-well Robotic PCR Thermal Cycler

Item#: 050-992
The TRobot PCR Thermal Cycler from Biometra is an automated PCR machine specifically designed for integration in robotic environments. This robotic PCR machine uses a small amount of bench space and consists of two separate parts; the block module which can be placed in the robotic enclosure, and the controller which can be located outside of the PCR workstation for easy access. The block module features a motorized heated lid and a uniquely designed motorized plate lifter to elevate plates from the block for easy removal. In addition, the TRobot Manager Software can be directly linked to any origin robot software, allowing for quick, easy access to all thermocycler functions. Overall, the TRobot is an efficient PCR machine that delivers high sample throughput making it the perfect solution for integration in robotic systems.
Request a Quote
Supplier:
Tag:

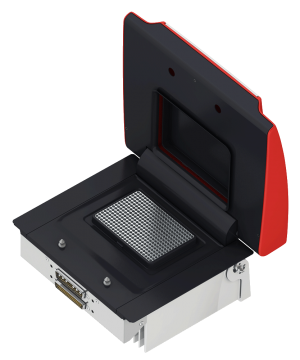

  • Block Capacity 384 well microplates
  • Block Material Aluminum (384 well)
  • Block Exchangeable Possible
  • Temperature Range -3 to 99º C
  • Temperature Gradient No
  • Max. Heating Rate 1.0º C/sec (aluminum block)
  • Max. Cooling Rate 1.0º C/sec (aluminum block)
  • Temperature Uniformity +/- 0.5º C
  • Control Accuracy +/- 0.1º C
  • Lid Temperature Range 30º C to 99º C
  • Temperature Uniformity of Air Cushion Highest homogeneity
  • Lid Height Adjustment Motorized lid and motorized plate lifter
  • Program Memory 250 average programs; unlimited on PC
  • Auto restart after power failure Yes
  • Additional Program Features TRobot Manager software for PC
  • Noise Emission Very low
  • Power Consumption Max. 350 Watt
  • Dimension (W x H x D) 17 x 23 x 20 cm (thermocycler)
  • 19 x 44 x 125 cm (controller)
  • Weight 5.9 kg (thermocycler)
  • 7.0 kg (controller)
  • Block Material: Anodized aluminum
  • Motorized lid and plate lifter
  • Same fast speed and temperature uniformity as traditional bench top thermal cyclers
  • Separate thermal cycler and controller for optimization and disk space

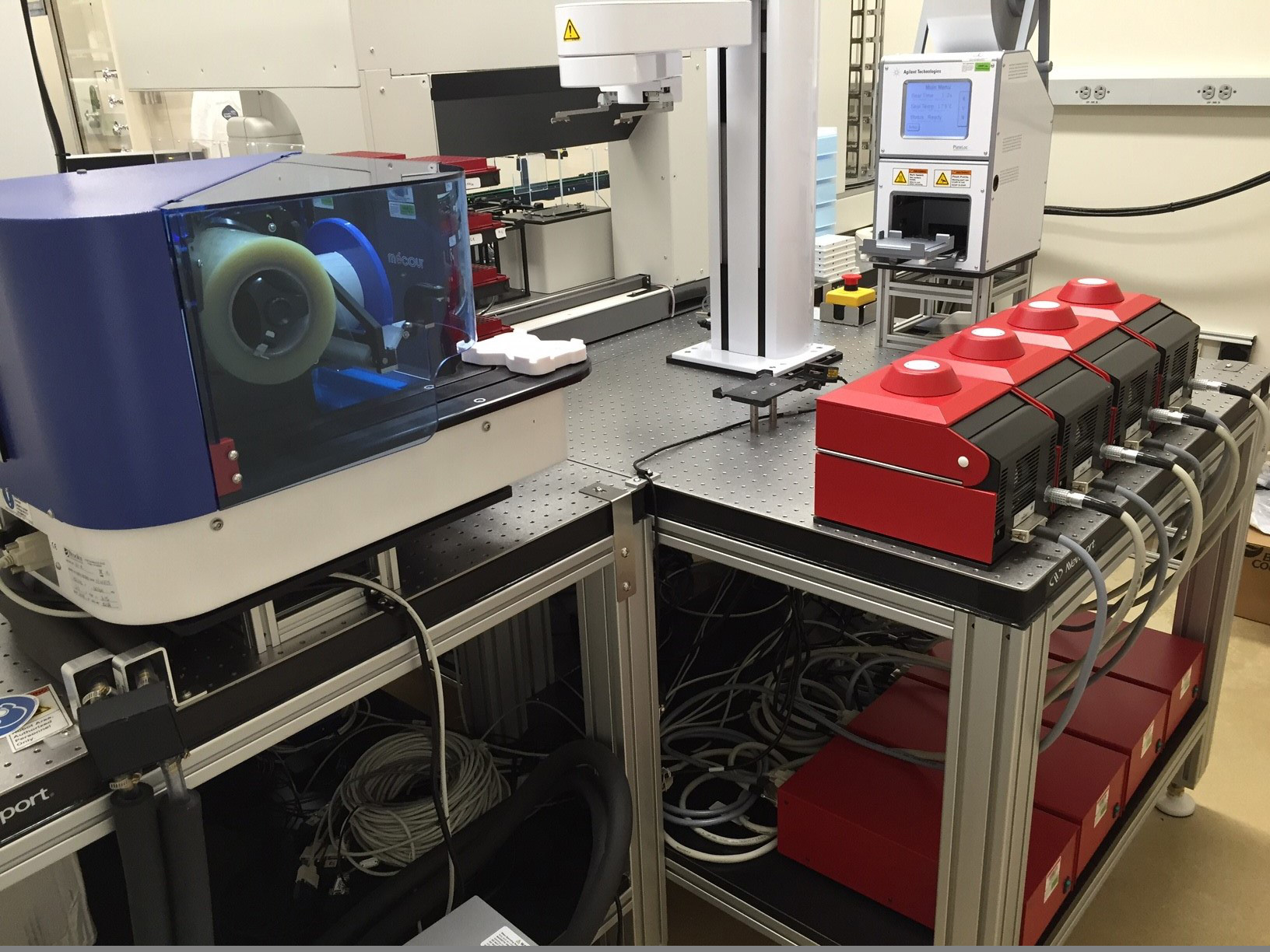

  • Small footprint - many cyclers can be placed side by side in a parallel configuration
