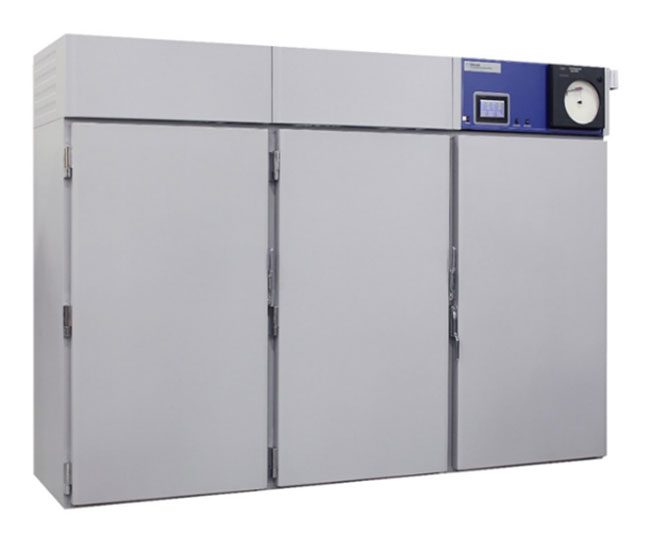

ES2000 Model A-TW “Triplewide” Warm Temp-Only Chamber | 114 Cu. Ft.
Item#: ES2000-A-TWThe ES2000 Model A-TW “Triplewide” Warm Temp-Only Chamber provides large-capacity temperature-controlled storage for demanding laboratory and industrial applications. With an expansive 114.8 cu. ft. interior and three solid swing doors, the chamber maintains temperatures from +35°C to +70°C with ±1°C volumetric uniformity and horizontal airflow for consistent distribution throughout the chamber. A touchscreen LCD controller, programmable audible and visual alarms, and NFPA 70E-compliant wiring separation ensure safe, reliable operation and monitoring. Built with a durable 304 stainless steel interior and engineered for a 20-year design life, the ES2000 Model A-TW also offers customizable options including redundant refrigeration, internal lighting, and corrosion-resistant coil coatings.
- Cu. Ft.: 114.8
- Door(s): (3) solid swing doors (glass viewing window available upon request)
- Temperature Range: +35°C to +70°C (+/- 1°C Volumetric Uniformity)
- Exterior Dimensions: 123” W x 34.5” D x 91.5” H
- Interior Dimensions: 116” W x 28.5” D x 60” H
- 304 SS interior (SS exterior and 316 SS available upon request)
- Alarms: Audible and visual; numerous programmable
- Casters: Yes, plus leveling bolts
- Shelves: (12) included; (57) max; adjustable
- Door Lock: Front
- Access port: 1-inch port standard; 2-inch and 3-inch available upon request
- Electrical Requirements: 208/230V, single phase, 30A (120V or 220-240V 50Hz with CE mark available upon request)
- Shipping Weight: 1420 lbs.
- Touchscreen LCD controller
- High and low voltage wiring separated for safe servicing (NFPA 70E Compliant)
- 2-way (RS-485) or 1-way (4-20mA) communication to controller
- Horizontal air flow across full vertical height of chamber for uniform distribution
- Integrated refrigeration equipment on top of chamber
- Redundant refrigeration system available upon request
- 3A duplex receptacle available upon request
- Chart recorder available upon request
- Electrofin coil coating for corrosive environments available upon request
- Internal lighting available upon request
- UPS available upon request
- 20-year design life
- MET listed
- Warranty: 12 months parts and labor
-
