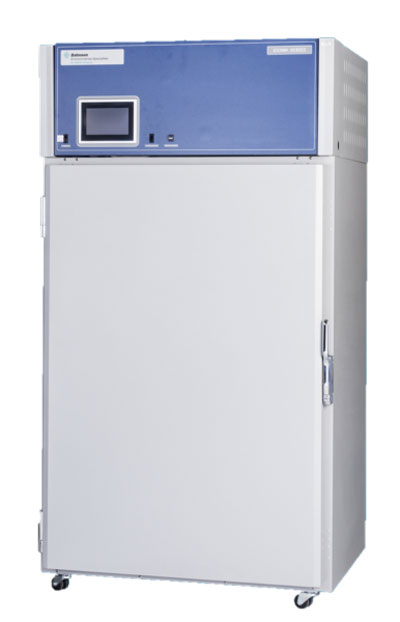

ES2000 Model AM-C “Compact” Temp + RH Chamber

Cu. Ft.: 25.2
Door(s): (1) solid swing door (glass viewing window available upon request)
Temperature Range: +35°C to +70°C (+/- 0.3°C Volumetric Uniformity)
Humidity Range: 10 to 96% RH (+/- 3.0% Volumetric Uniformity)
Exterior Dimensions: 41” W x 34.5” D x 76.5” H
Interior Dimensions: 34” W x 28.5” D x 45” H
304 SS interior (SS exterior and 316 SS available upon request)
Alarms: Audible and visual; numerous programmable
Casters: Yes, plus leveling bolts
Shelves: (4) included; (14) max; adjustable
Door Lock: Front
Access port: 1-inch port standard; 2-inch and 3-inch available upon request
Electrical Requirements: 208/230V, single phase, 30A (120V or 220-240V 50Hz with CE mark available upon request)
Shipping Weight: 500 lbs.

Touchscreen LCD controller
High and low voltage wiring separated for safe servicing (NFPA 70E Compliant)
2-way (RS-485) or 1-way (4-20mA) communication to controller
Horizontal air flow across full vertical height of chamber for uniform distribution
Integrated refrigeration equipment on top of chamber
Condensation removed via optional pump or heated pan
Dry Air Tower to extend low humidity performance available upon request
3A duplex receptacle available upon request
Chart recorder available upon request
Class I Div 2 construction available upon request
Electrofin coil coating for corrosive environments available upon request
Internal lighting available upon request
UPS available upon request
20-year design life
MET listed
Warranty: 12 months parts and labor
