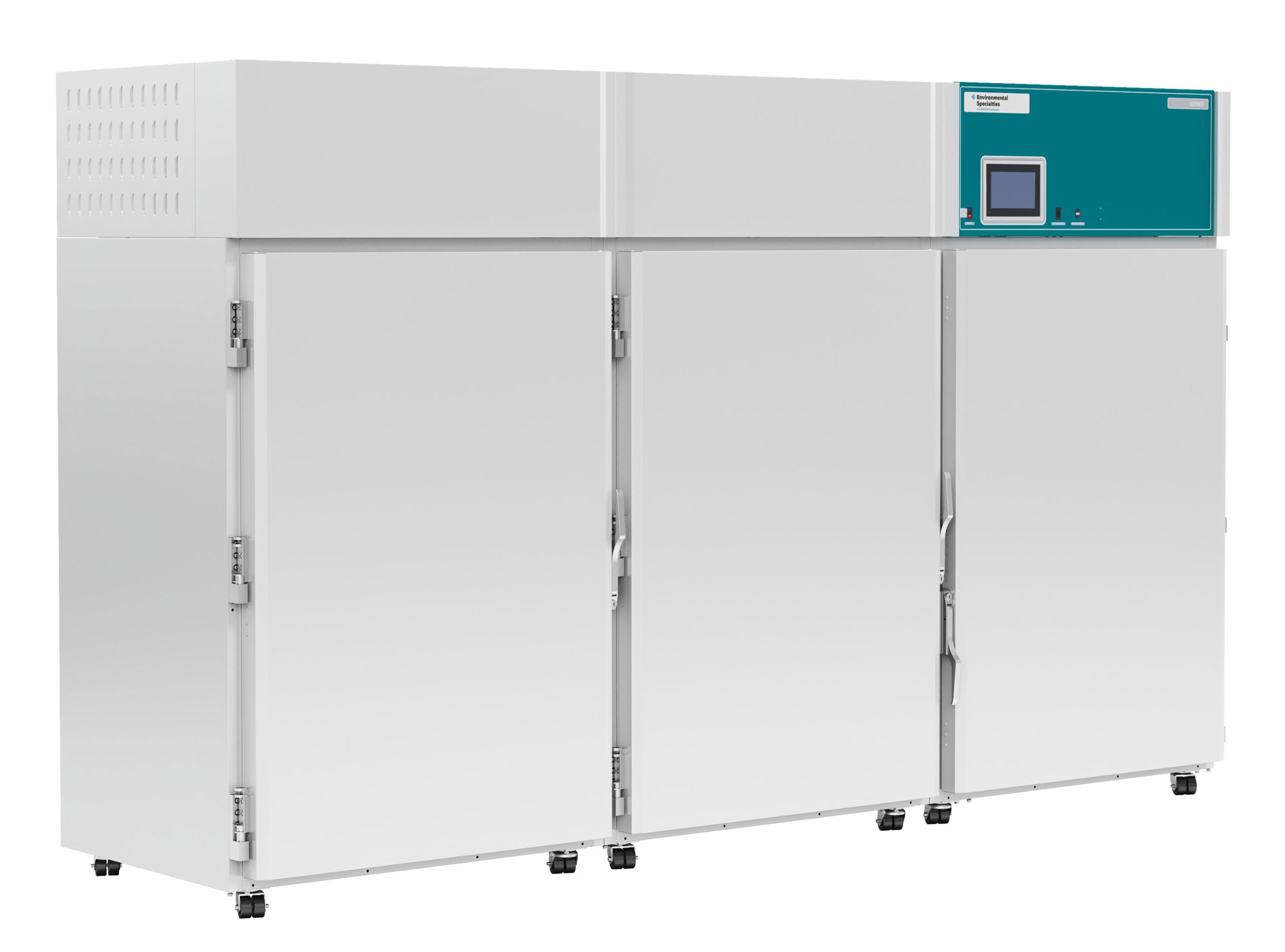

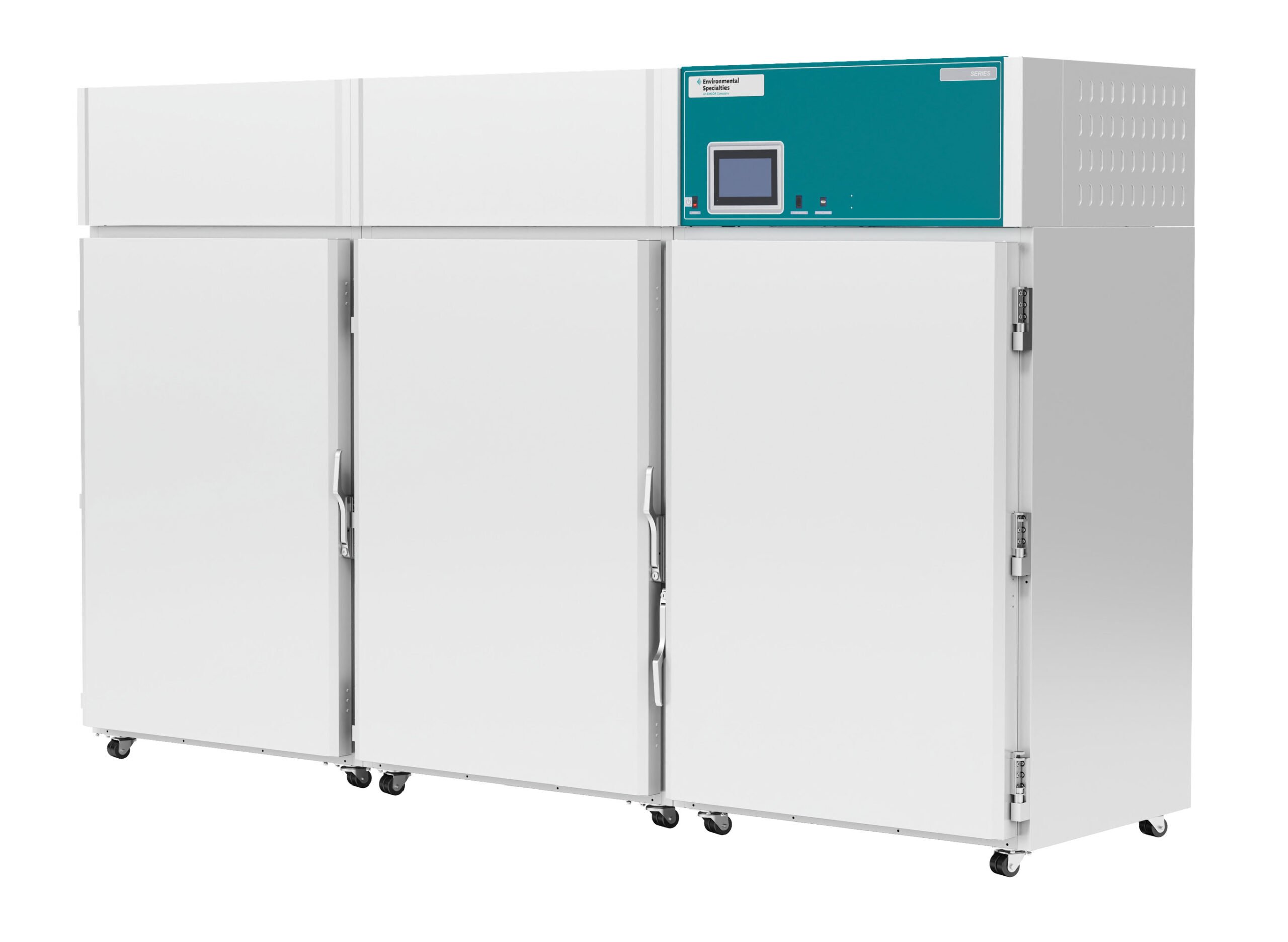

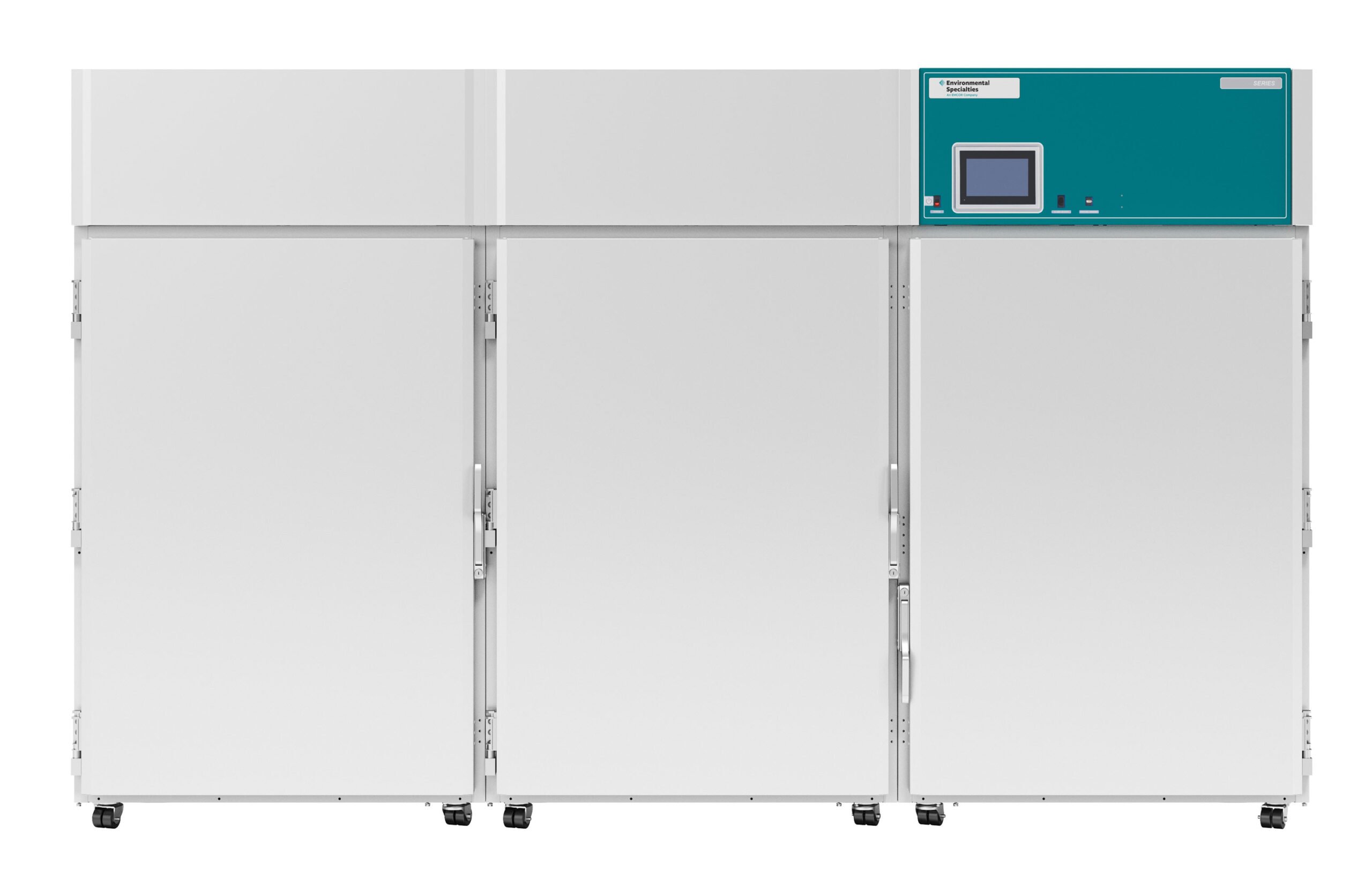

ES2000 Model C-TW “Triplewide” Temp-Only Chamber | 114 Cu. Ft.
Item#: ES2000-C-TWThe ES2000 Model C-TW “Triplewide” Temp-Only Chamber provides high-capacity temperature-controlled storage for laboratory and industrial applications requiring stable environmental conditions. With an expansive 114.8 cu. ft. interior and three solid swing doors, the chamber delivers precise temperature uniformity and consistent horizontal airflow distribution throughout the workspace. A touchscreen LCD controller, programmable alarms, and NFPA 70E-compliant wiring separation ensure safe and reliable operation, while the durable 304 stainless steel construction and 20-year design life support long-term performance in demanding environments.
- Cu. Ft.: 114.8
- Door(s): (3) solid swing doors (glass viewing window available upon request)
- Temperature Range: +2°C to +70°C (+/- 1.0°C Volumetric Uniformity)
- Exterior Dimensions: 123” W x 34.5” D x 91.5” H
- Interior Dimensions: 116” W x 28.5” D x 60” H
- 304 SS interior (SS exterior and 316 SS available upon request)
- Alarms: Audible and visual; numerous programmable
- Casters: Yes, plus leveling bolts
- Shelves: (12) included; (57) max; adjustable
- Door Lock: Front
- Access port: 1-inch port standard; 2-inch and 3-inch available upon request
- Electrical Requirements: 208/230V, single phase, 30A (120V or 220-240V 50Hz with CE mark available upon request)
- Shipping Weight: 1520 lbs.
- Touchscreen LCD controller
- High and low voltage wiring separated for safe servicing (NFPA 70E Compliant)
- 2-way (RS-485) or 1-way (4-20mA) communication to controller
- Horizontal air flow across full vertical height of chamber for uniform distribution
- Integrated refrigeration equipment on top of chamber
- Redundant refrigeration system available upon request
- Condensation removed via optional pump or heated pan
- 3A duplex receptacle available upon request
- Chart recorder available upon request
- Electrofin coil coating for corrosive environments available upon request
- Internal lighting available upon request
- UPS available upon request
- 20-year design life
- MET listed
- Warranty: 12 months parts and labor
-
