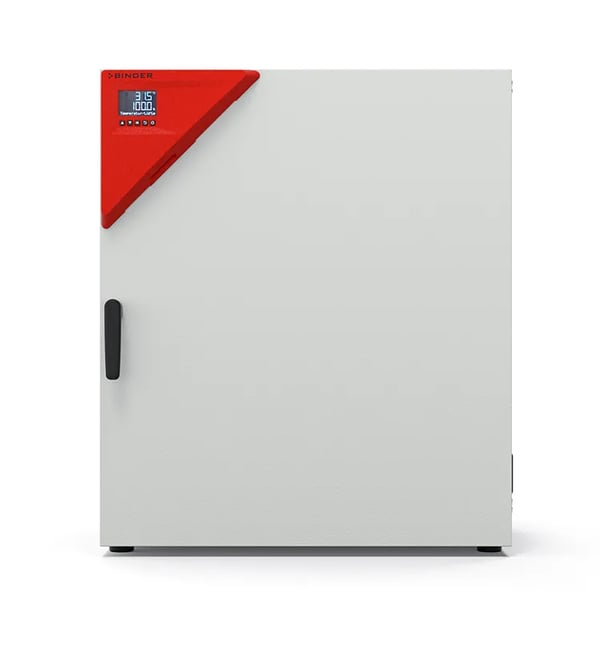

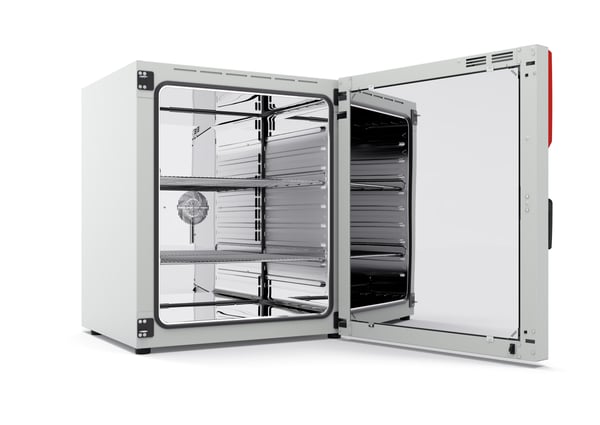

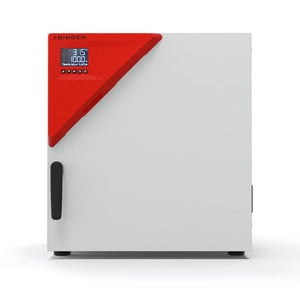

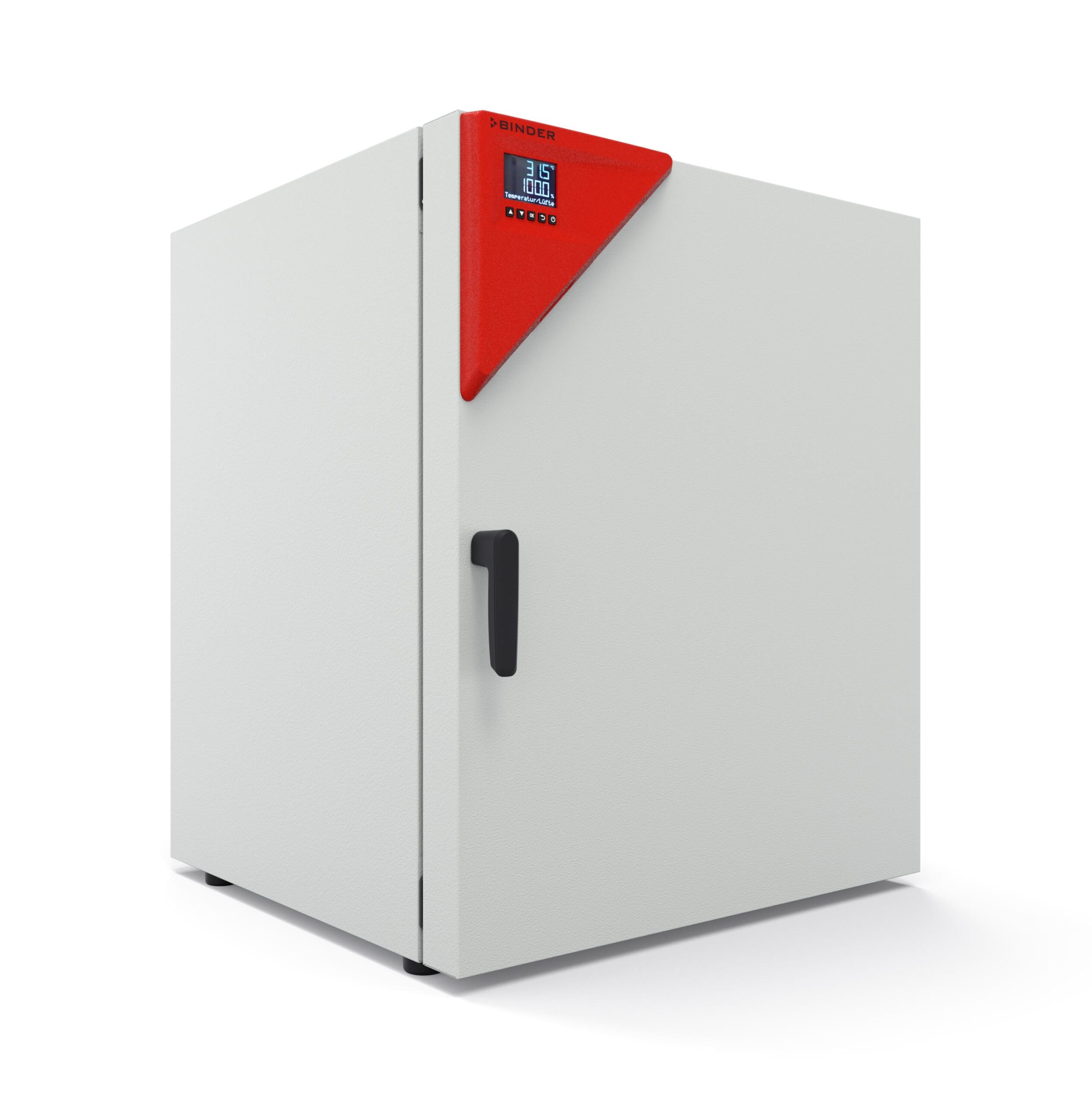

BINDER FP260 Drying & Heating Chamber with Forced Convection & Program Functions, 9.1 cu.ft. (120V)

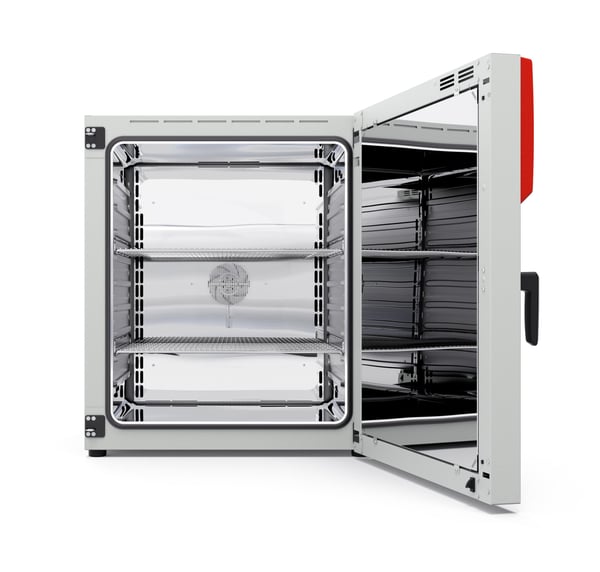

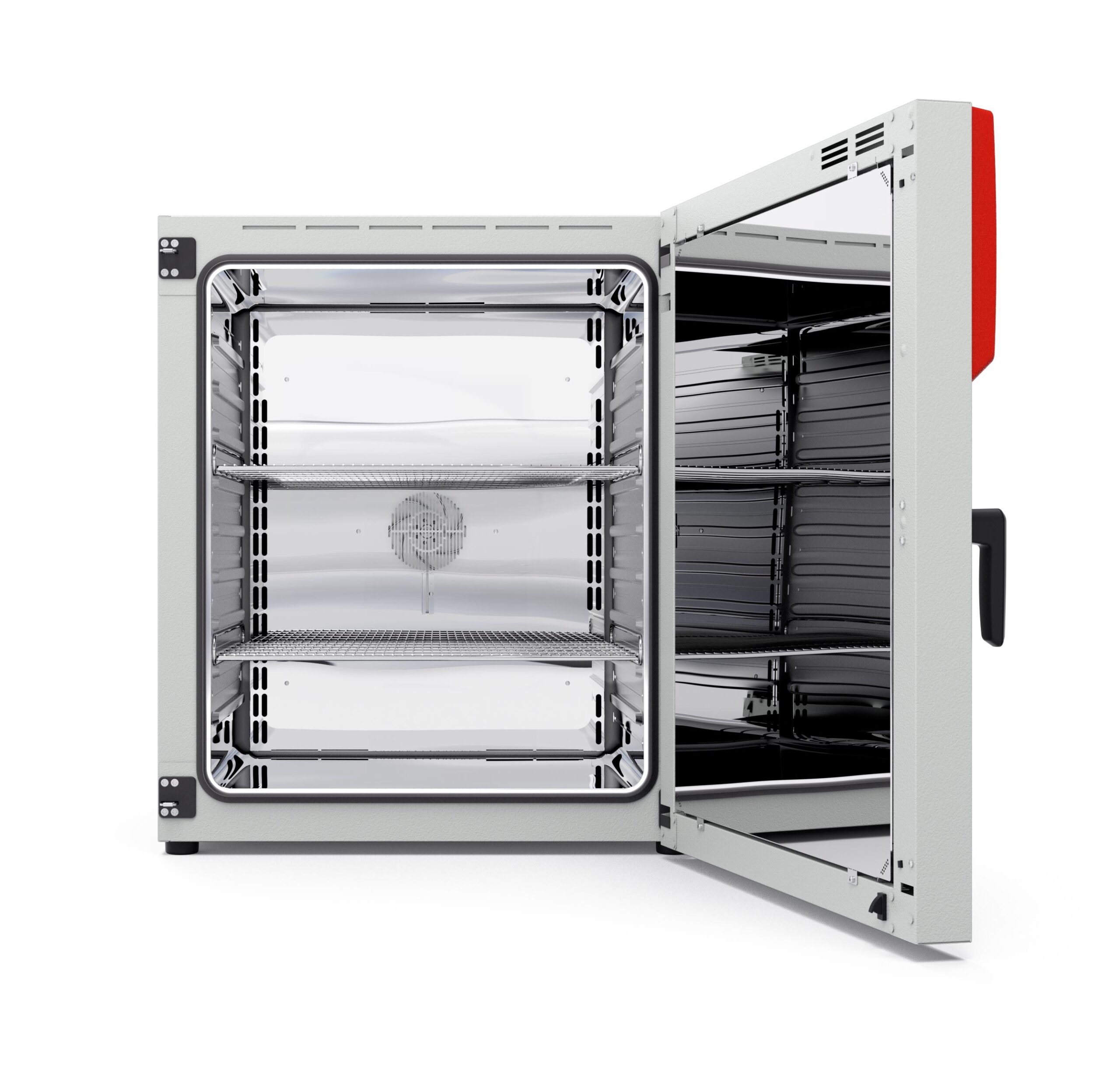

BINDER FP260 Drying & Heating Chamber with Forced Convection & Program Functions | 9.1 cu.ft. | 120V - Image 2

BINDER FP260 Drying & Heating Chamber with Forced Convection & Program Functions | 9.1 cu.ft. | 120V

Name: BINDER FP260 Drying & Heating Chamber with Forced Convection & Program Functions | 9.1 cu.ft. | 120V
Brand: BINDER
SKU: 9010-0369
Availability: InStock

Item#: 9010-0369

The BINDER FP260 Drying and Heating Chamber is a forced-convection oven designed for precise drying, heating, and thermal testing in laboratory and industrial environments. Its 9.1 cu. ft. chamber offers temperatures up to 300°C, APT.line™ technology for excellent temperature accuracy, and adjustable fan speed for optimized airflow and reproducible performance across a wide range of applications. With interval and real-time programming, Ethernet connectivity, USB data logging, and advanced selectable temperature safety features, the FP260 provides flexible, process-oriented control for demanding research, quality control, and production workflows.

~~$7,793.00~~ $7,403.35

Request a Quote

Supplier: BINDER

Performance Data Temperature

Temperature range +12 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 1.7
Temperature fluctuation at 150 °C [± K]: 0.4
Heating-up time to 150 °C [min]: 19
Recovery time aer 30 seconds door open at 150 °C [min]: 6

Tabellen

Air change (approx.) at 100 °C [x/h]: 9

Electrical data

Rated Voltage [V]: 120
Power frequency [Hz]: 60
Nominal power [kW]: 2.5
Unit fuse [A]: 3 x 16
Phase (Nominal voltage): 3~

Measures

Interior volume [cu.ft.]: 9.1
Net weight of the unit (empty) [lbs]: 212
Permitted load [lbs]: 595
Load per rack [lbs]: 88
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Internal Dimensions

Depth [in]: 25.67
Height [in]: 30.73
Width [in]: 20.17

Doors

Unit Doors: 1

Housing dimensions not incl. fittings and connections

Depth net [in]: 31.91
Height net [in]: 37.9
Width net [in]: 30.97

Environment-specific data

Sound-pressure level [dB(A)]: 43

Fixtures

Number of shelves (std./max.): 2/8

Temperature range: +10 °C above ambient temperature up to +300 °C
High temperature accuracy thanks to APT.line™ technology
Adjustable fan speed
Controller with interval and real-time programming
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Units up to 115 liters are stackable
Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
Ergonomic handle design
Computer interface: Ethernet
Internal data logger, measured values can be read out in open format via USB

BINDER FP260 Drying & Heating Chamber with Forced Convection & Program Functions | 9.1 cu.ft. | 120V

BINDER Model FP 260 Drying Chamber Data Sheet

BINDER Drying Chambers Brochure

BINDER FP Series User Manual
