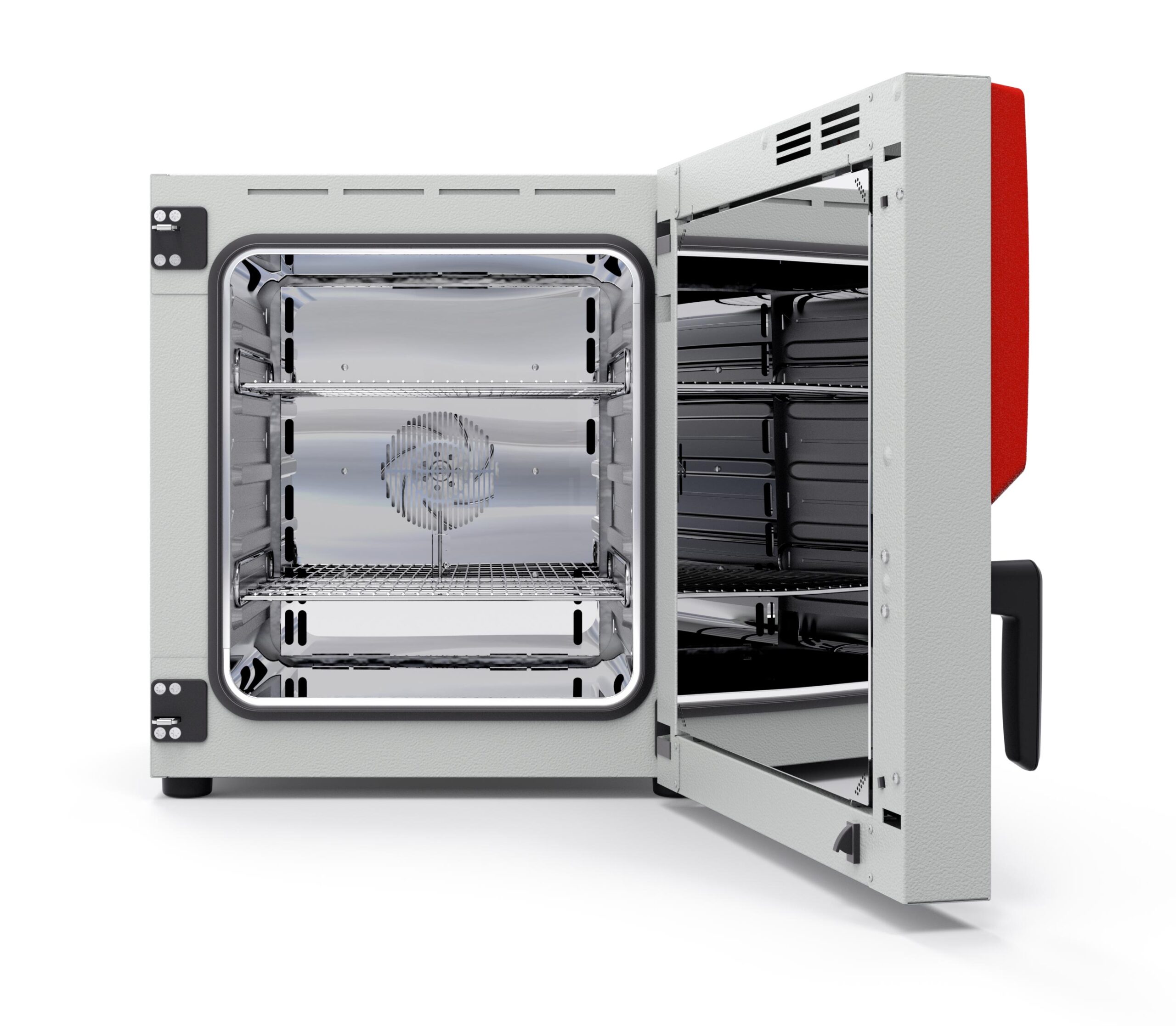

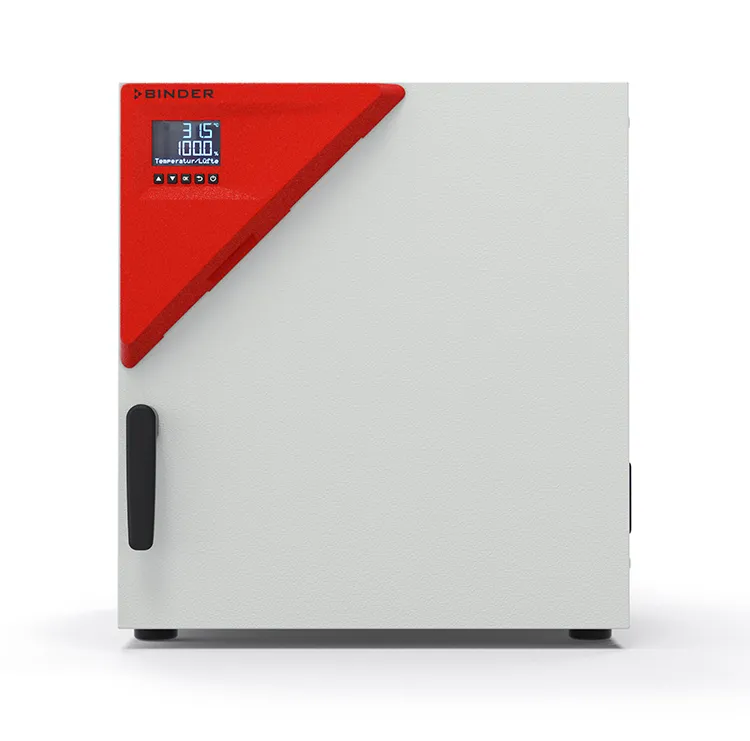

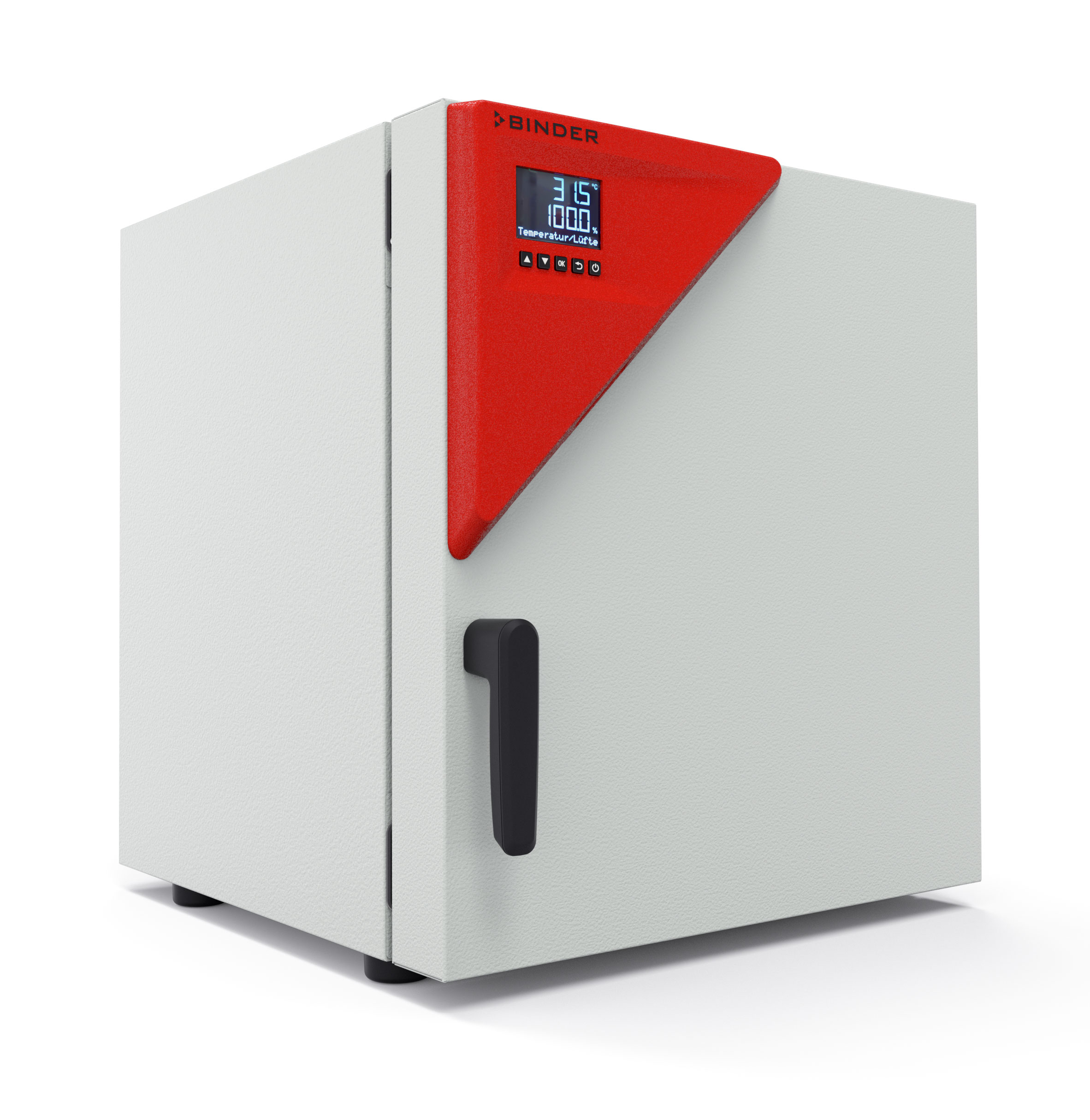

BINDER FP56 Drying & Heating Chamber with Forced Convection & Program Functions | 2.1 cu.ft. | 120V
Item#: 9010-0367- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
- Advanced programming options
$4,022.00 $3,619.80
Performance Data Temperature
- Temperature range +10 °C above ambient temperature to [°C]: 300
- Temperature variation at 150 °C [± K]: 1.4
- Temperature fluctuation at 150 °C [± K]: 0.4
- Heating-up time to 150 °C [min]: 15
- Recovery time after 30 seconds door open at 150 °C [min]: 4
Tabellen
- Air change (approx.) at 100 °C [x/h]: 80
Electrical data
- Rated Voltage [V]: 120
- Power frequency [Hz]: 60
- Nominal power [kW]: 1.2
- Unit fuse [A]: 16
- Phase (Nominal voltage): 1~
Measures
- Interior volume [cu.ft.]: 2.1
- Net weight of the unit (empty) [lbs]: 97
- Permitted load [lbs]: 154
- Load per rack [lbs]: 66
- Wall clearance back [in]: 6.3
- Wall clearance sidewise [in]: 3.94
Internal Dimensions
- Depth [in]: 15.76
- Height [in]: 15.76
- Width [in]: 13.47
Doors
- Unit Doors: 1
Housing dimensions not incl. fittings and connections
- Depth net [in]: 22.06
- Height net [in]: 24.51
- Width net [in]: 23.48
Environment-specific data
- Sound-pressure level [dB(A)]: 43
Fixtures
- Number of shelves (std./max.): 2/5
- Temperature range: +10 °C above ambient temperature up to +300 °C
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with interval and real-time programming
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Units up to 115 liters are stackable
- Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
- Ergonomic handle design
- Computer interface: Ethernet
- Internal data logger, measured values can be read out in open format via USB
