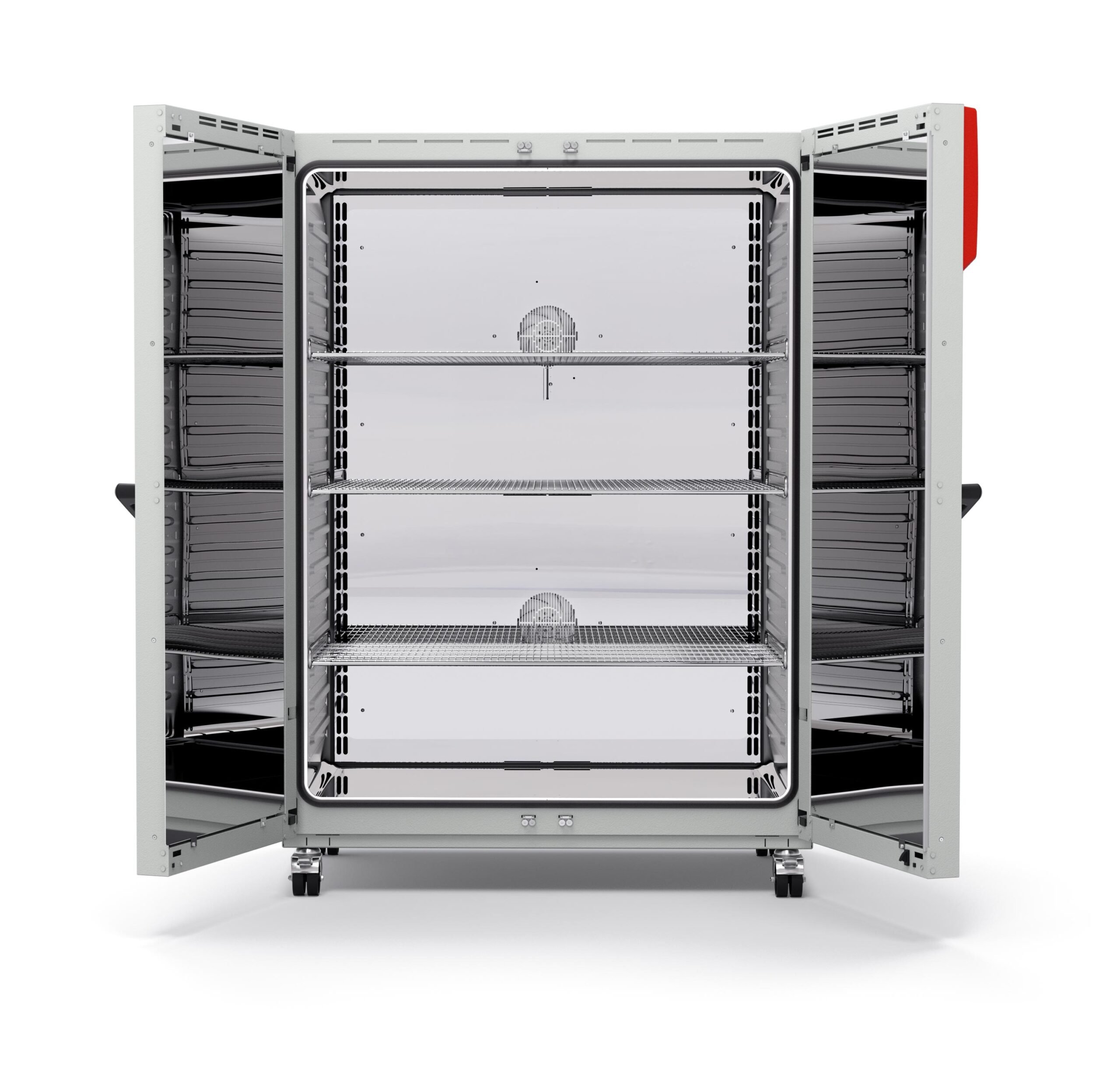

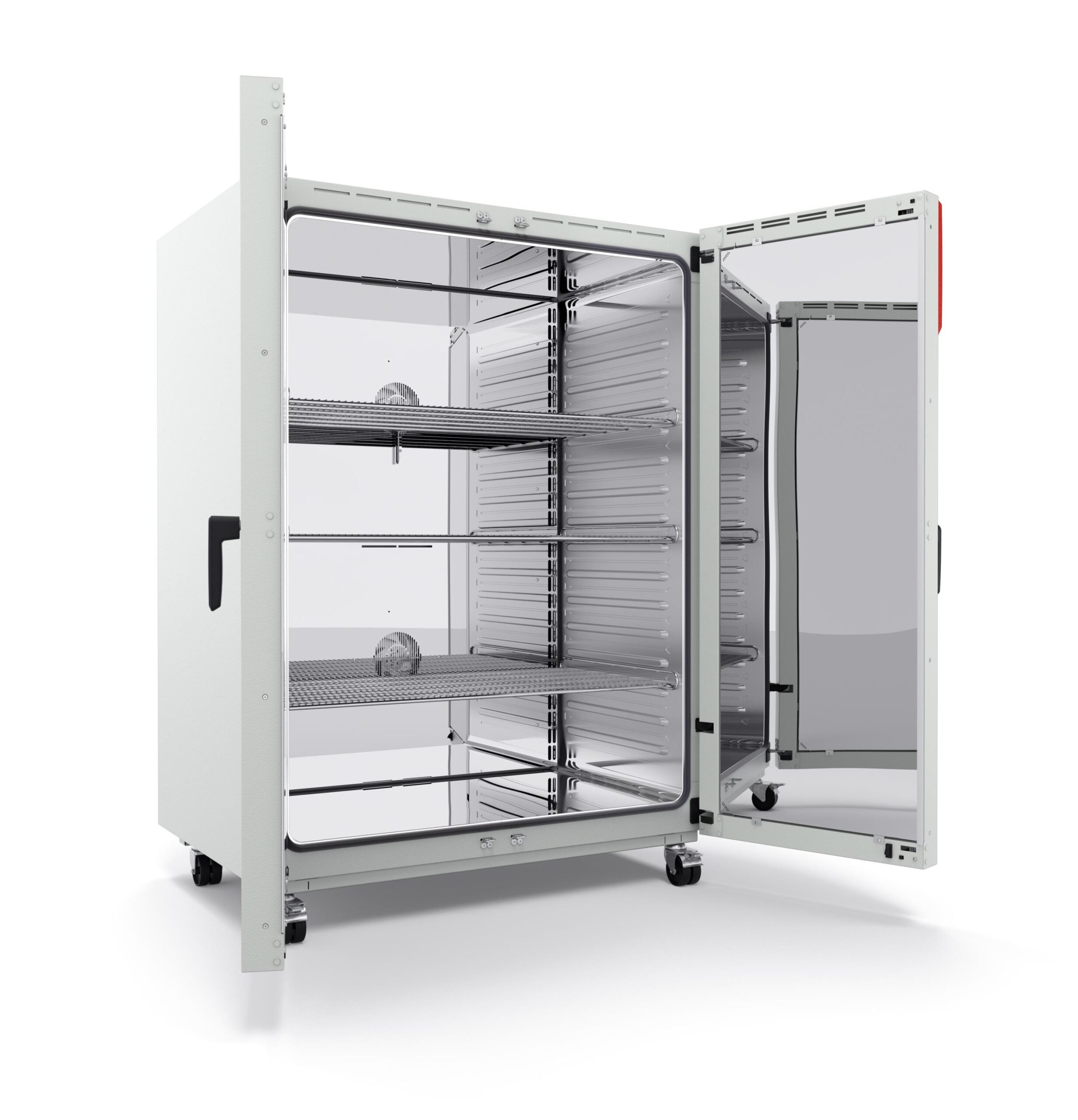

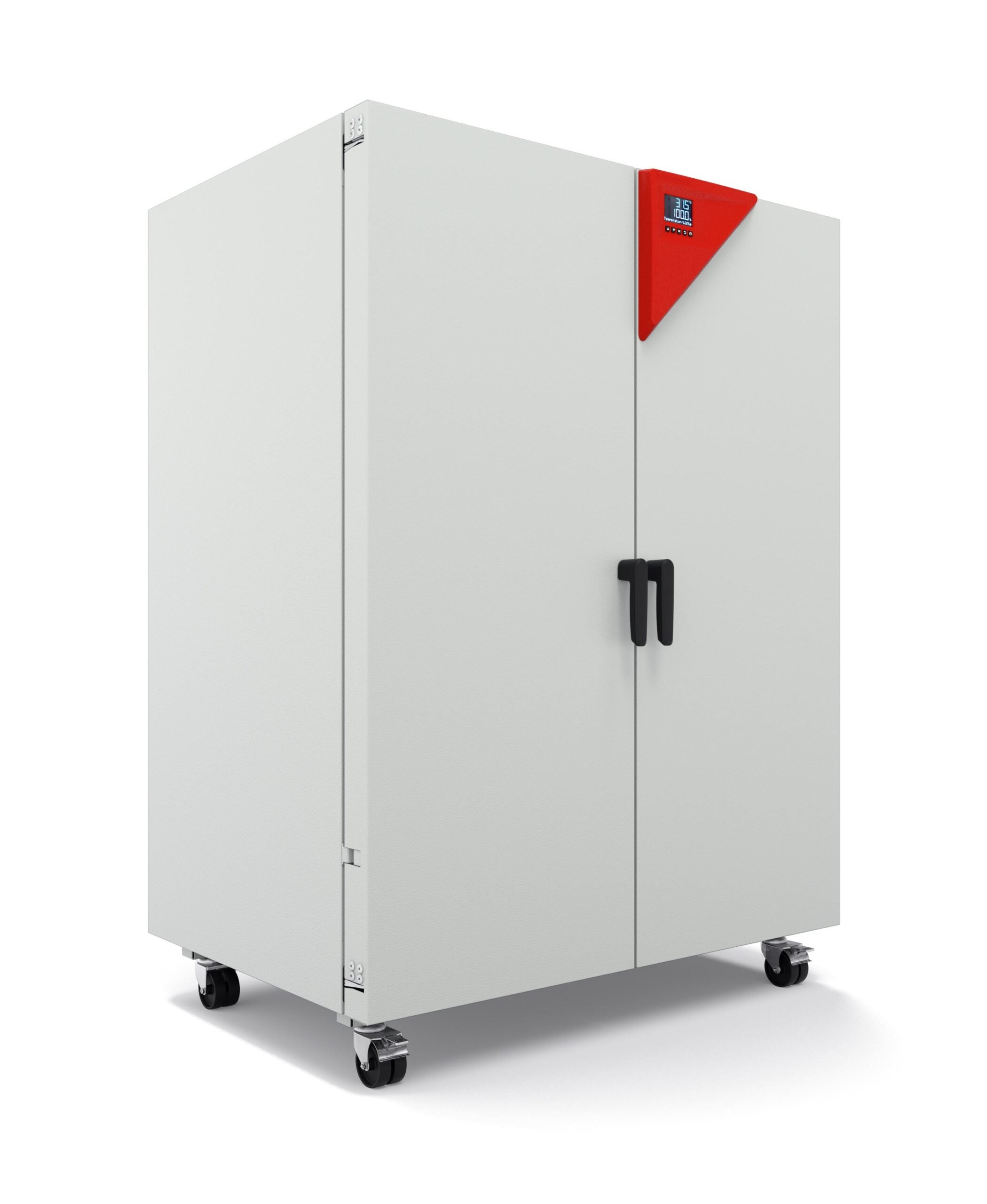

BINDER FP720 Drying & Heating Chamber with Forced Convection & Program Functions, 26.2 cu.ft. (208V)

BINDER FP720 Drying & Heating Chamber with Forced Convection & Program Functions | 26.2 cu.ft. | 208V - Image 2

BINDER FP720 Drying & Heating Chamber with Forced Convection & Program Functions | 26.2 cu.ft. | 208V

Item#: 9010-0370

Uniform drying conditions thanks to APT.line™ technology
Identical test conditions throughout the chamber interior independent of sample size and quantity
Outstanding thermal insulation saves operation costs
Advanced programming options

~~$13,473.00~~ $12,799.35

Request a Quote

Supplier: BINDER

Performance Data Temperature

Temperature range +12 °C above ambient temperature to [°C]: 300
Temperature variation at 150 °C [± K]: 2.4
Temperature fluctuation at 150 °C [± K]: 0.6
Heating-up time to 150 °C [min]: 25
Recovery time aer 30 seconds door open at 150 °C [min]: 6

Tabellen

Air change (approx.) at 100 °C [x/h]: 5

Electrical data

Rated Voltage [V]: 208
Power frequency [Hz]: 60
Nominal power [kW]: 4.5
Unit fuse [A]: 3 x 16
Phase (Nominal voltage): 3~

Measures

Interior volume [cu.ft.]: 26.2
Net weight of the unit (empty) [lbs]: 428
Permitted load [lbs]: 694
Load per rack [lbs]: 99
Wall clearance back [in]: 6.3
Wall clearance sidewise [in]: 3.94

Internal Dimensions

Depth [in]: 39.4
Height [in]: 51.2
Width [in]: 22.62

Doors

Unit Doors: 2

Housing dimensions not incl. fittings and connections

Depth net [in]: 45.7
Height net [in]: 62.6
Width net [in]: 32.15

Environment-specific data

Sound-pressure level [dB(A)]: 43

Fixtures

Number of shelves (std./max.): 2/16

Temperature range: +10 °C above ambient temperature up to +300 °C
High temperature accuracy thanks to APT.line™ technology
Adjustable fan speed
Controller with interval and real-time programming
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Units up to 115 liters are stackable
Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
Ergonomic handle design
Computer interface: Ethernet
Internal data logger, measured values can be read out in open format via USB

BINDER FP720 Drying & Heating Chamber with Forced Convection & Program Functions | 26.2 cu.ft. | 208V

BINDER Model FP 720 Drying Chamber Data Sheet

BINDER Drying Chambers Brochure

BINDER FP Series User Manual
