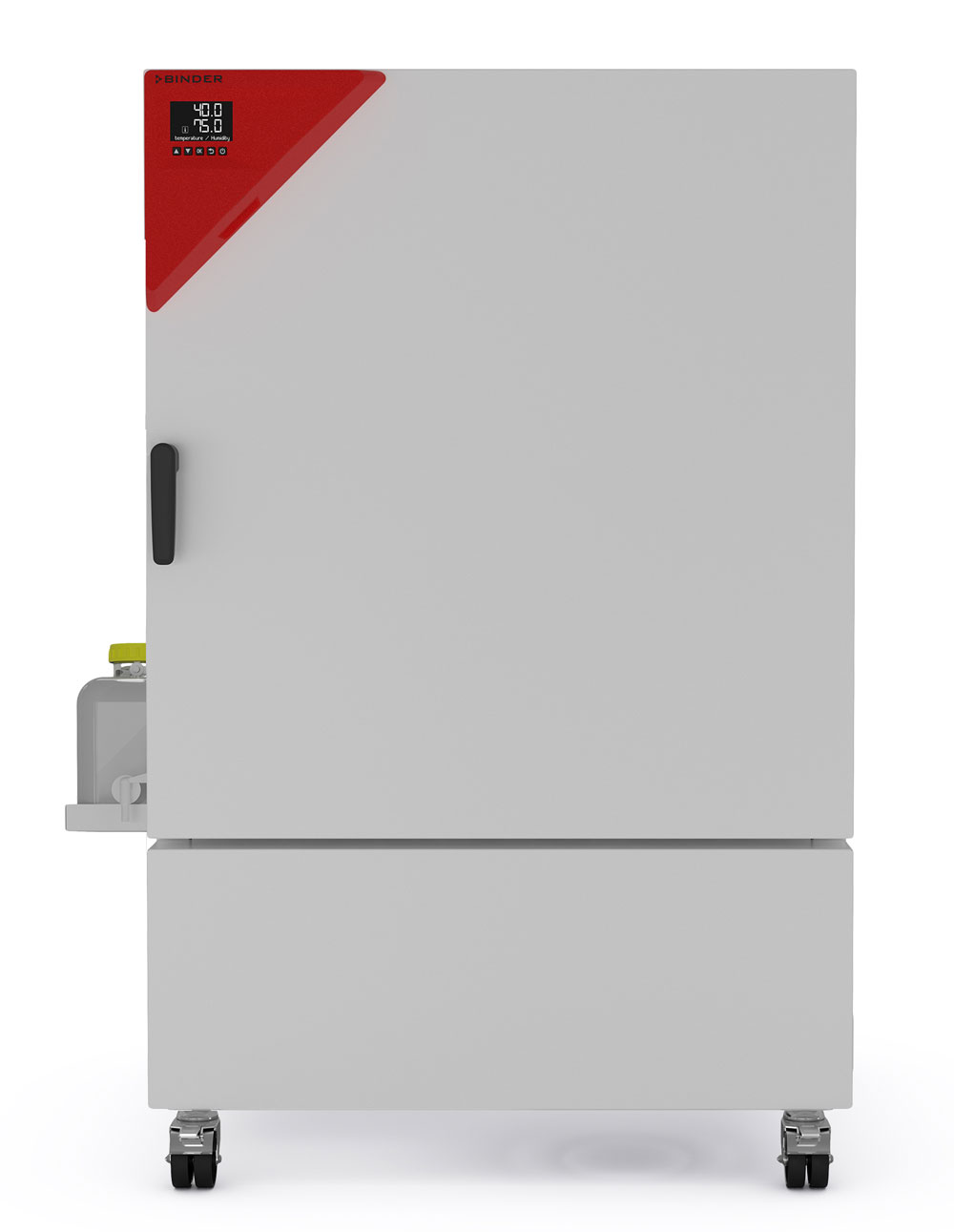

BINDER KBF-S ECO 240 Humidity Testing Chambers with Thermoelectric Cooling | 8.7 Cu. Ft

Performance Data Temperature

• Temperature range (max. 24 °C under ambient temp): 0°C -70°C
• Temperature variation at 40 °C [± K]: 0.3°C
• Temperature fluctuation at 40 °C [± K]: 0.1°C
• heat compensation at 40 °C [W]: 250°C

Performance Data Climate

• Temperature range (max. 24 °C under ambient temp) 5°C -70°C
• Temperature variation at 25 °C and 60 % RH [± K]: 0.1°
• Temperature variation at 40 °C and 75 % RH [± K]: 0.2
• Temperature fluctuation at 25 °C and 60 % RH [± K]: 0.1
• Temperature fluctuation at 40 °C and 75 % RH [± K]: 0.1
• Humidity range [% RH] 10%-80%
• Humidity fluctuation at 25 °C and 60 % RH: 0,3 % RH
• Humidity fluctuation at 40 °C and 75 % RH: 0,3 % RH
• Recovery time after 30 seconds door open at 25 °C and 60 % RH [min] 5
• Recovery time after 30 seconds door open at 40 °C and 75 % RH [min] 11

Electrical data

• Rated Voltage [V] 100-120
• Power frequency [Hz] 50/60
• Nominal power [kW] 0.8
• Unit fuse [A] 16
• Phase (Nominal voltage) 1~

Measures

• Interior volume [cu.ft.] 8.7
• Net weight of the unit (empty) [lbs] 322
• Permitted load [lbs] 220
• Load per rack [lbs] 66
• Wall clearance back [in] 3.94
• Wall clearance sidewise [in] 3.94

Internal Dimensions

• Width [in] 25.61
• Height [in] 30.93
• Depth [in] 19.11

Doors

• Unit doors: 1

Housing dimensions not incl. fittings and connections

• Width net [in] 36.64
• Height net [in] 57.5
• Depth net [in] 31.52

Environment-specific data

• Energy consumption at 40 °C and 75 % RH [Wh/h] 85
• Sound-pressure level [dB(A)] 46

Fixtures

• Number of shelves (std./max.) 2/9
