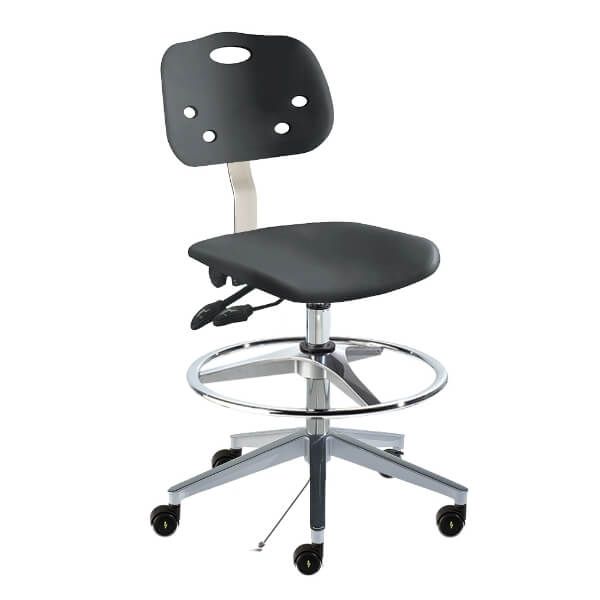

Biofit ArmorSeat Series Cleanroom ESD Lab Chair | High Bench Height | 33” to 43” User Height | Black

Item#: GGW-H-RK-T-AFP-XA-ISO6K

This chair is designed for use at 33" to 43" high benches. Functions include pneumatic seat-height adjustment range of 21” to 31”, fixed rearward seat tilt of 6 degrees, plus backrest tilt and height-adjustment controls. Features 16” wide X 10.75” high backrest with lumbar support, ergonomic 17.5” wide X 15.5” deep seat with waterfall front; 28.7” diameter high profile aluminum base with affixed grounding drag cable; 22” diameter adjustable footring; and dual-wheel, ESD-rated non-marring polyurethane casters that resist movement when the chair is unoccupied. Easy-to-clean seat and backrest feature stipple finish and contain UV inhibitor and antimicrobial properties.

Request a Quote

Supplier: BioFit

Height Compatibility: High Bench
Seat Covering Type: Non-Upholstered
Seating Surface: Polypropylene
Seat Size: Small
Back Size: Small
Base: Wide Aluminum Base
ISO Cleanroom Standard: ISO 6
Static Control: Includes Static Control; Meets ANSI/ESD STM12.1 Standards
Finish Color: Chrome
Shipping Weight: 39
Product Dimensions: 29 x 29 x 35
Weight Capacity (lbs): 300
Seat-Height Adjustable Range: 21"-31"
Upholstery Type & Color: None; Black Polypropylene
Seat Description: Ergonomic polypropylene seat with waterfall front, UV inhibitor and antimicrobial properties; measures 17.5" wide x 15.5" deep.
Back Description: Polypropylene backrest with lumbar support, UV inhibitor and antimicrobial properties; measures 16" wide x 10.75" high.
Control Description: Control allows function of the seat height activation and backrest adjustments by means of easily engaged levers which can be activated from the seated position. Seat tilt is fixed at 3.5° rearward while the backrest adjusts 8° forward and 13° rearward.
Base Description: Five-legged, solid cast aluminum base with caster-to-caster diameter of 28.7" and maximum width of 27.4". T-cross-section legs ensure cleanability, and endure test loads of 1.5-2x BIFMA strength requirements. Features standard 50-mm tapered hub (1° 26' 16" (Morse) taper) with gauge line elevation of 113mm from the caster insert plane. The base is cast out of UNI EN 46100 aluminum with a robotically polished top surface to ensure quality and consistency.
Caster/Glide Description: Two inches in height, with dual soft-wheels. Casters resist movement when the seat is unoccupied. Plastic collar around caster stem to match base. Black tread indicates an ESD caster.
Recommended User Height: 33-43
Seat Width (in): 17.5
Seat Depth (in): 15.5
Seat Cushion Thickness (in): 1.5
Back Width (in): 16
Back Height (in): 10.75
Footring Diameter (in): 22

Suitable for 33" to 43" high benches
Pneumatic seat-height adjustment range of 21” to 31”
Fixed rearward seat tilt of 6 degrees
Convenient backrest tilt and height adjustments
16” wide X 10.75” high backrest with lumbar support
Ergonomic 17.5” wide X 15.5” deep seat with waterfall front
28.7” diameter high profile aluminum base with affixed grounding drag cable
22” diameter adjustable footring
Dual-wheel, ESD-rated non-marring polyurethane casters that resist movement when the chair is unoccupied
Easy-to-clean seat and backrest feature stipple finish and contain UV inhibitor and antimicrobial properties
Complies with product safety and performance standards guidelines: ANSI
LEED^® compliant
13-year warranty with lifetime warranty on pneumatics
