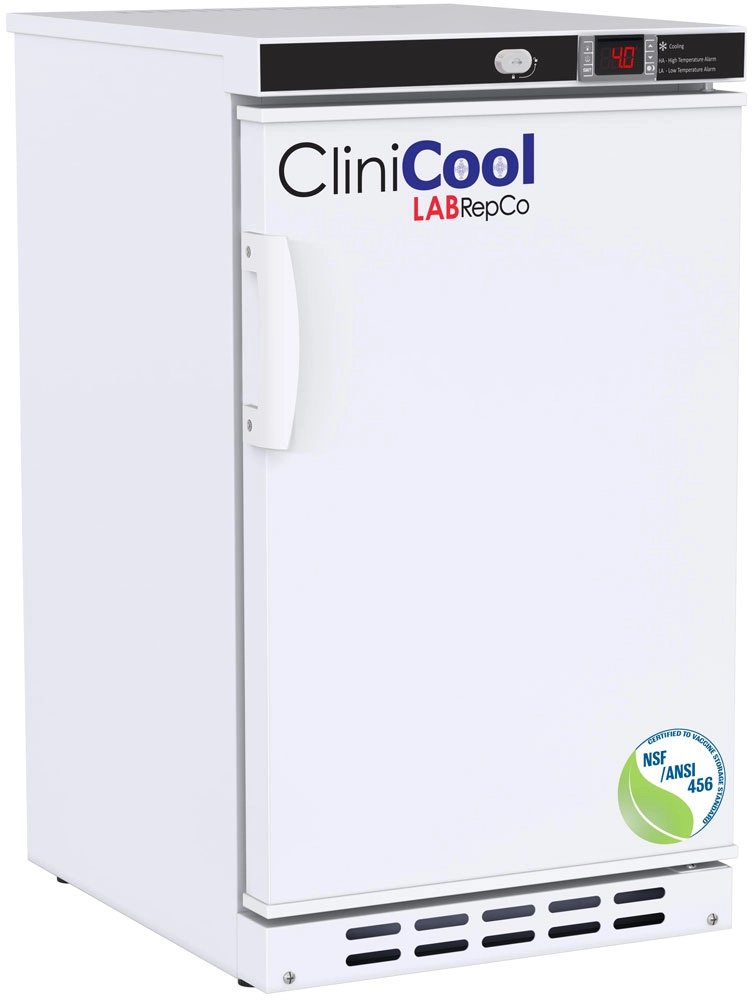

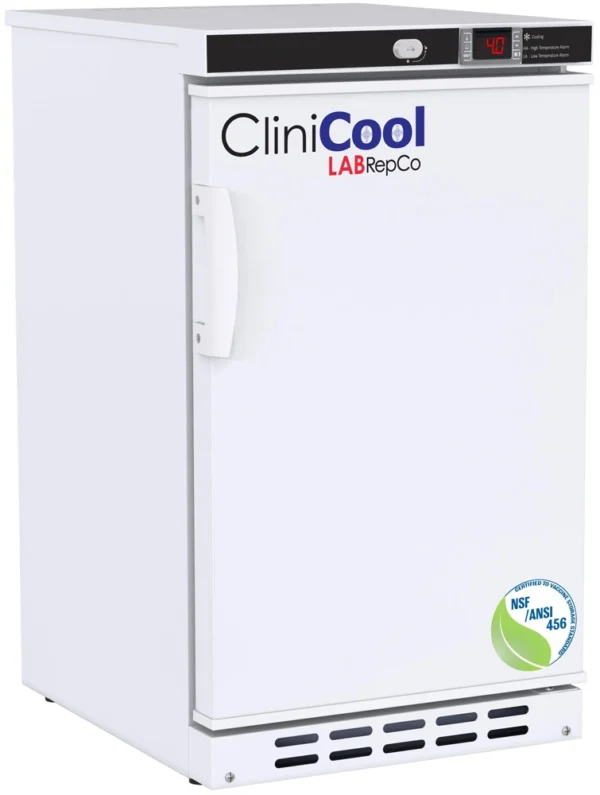

LabRepCo CliniCool© Silver Series 2.5 Cu. Ft. NSF Certified Undercounter Medical-Grade Refrigerator for Vaccine Storage | Built-In | Solid Door
Item#: LHP-3-URB-PHNSFThe CliniCool© Series LHP-3-URB-PHNSF undercounter pharmacy refrigerator is NSF certified to NSF/ANSI 456 vaccine storage standards for safe & reliable cold storage. This medical grade refrigerator features a 2.5 cu. ft. capacity, one solid door with a recessed handle, microprocessor temperature controller with audible and visual alarms, remote alarm contacts, digital temperature display, leveling legs, pharmacy toolkit, and CDC approved power cords. This unit has a front ventilation system ideal for built-in applications. With temperature ranges between 35°F to 46°F, these vaccine storage refrigerators & freezers will safely store a wide range of vaccines, such as Influenza, COVID-19 (coronavirus), rotavirus and MMRV. In conjunction with NIST traceable data loggers, these refrigerators will provide you with the solution you need to meet CDC and VFC (Vaccines for Children) vaccine storage requirements.
What does NSF certified vaccine storage mean? Click here to learn more
Please note this product ships freight
$3,610.00 $2,779.70
- Temperature setpoint range: +1°C to +10°C (Controller settings must remain unaltered to ensure thermal performance compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
- Operational environment: Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
- Storage capacity: 2.5 cu. ft. gross volume
- Exterior Dimensions (WxDxH): 17 3/4" x 20 7/8" x 30 3/4"
- Interior Dimensions (WxDxH): 14" x 13 1/4" x 21"
- Door: One swing solid door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock

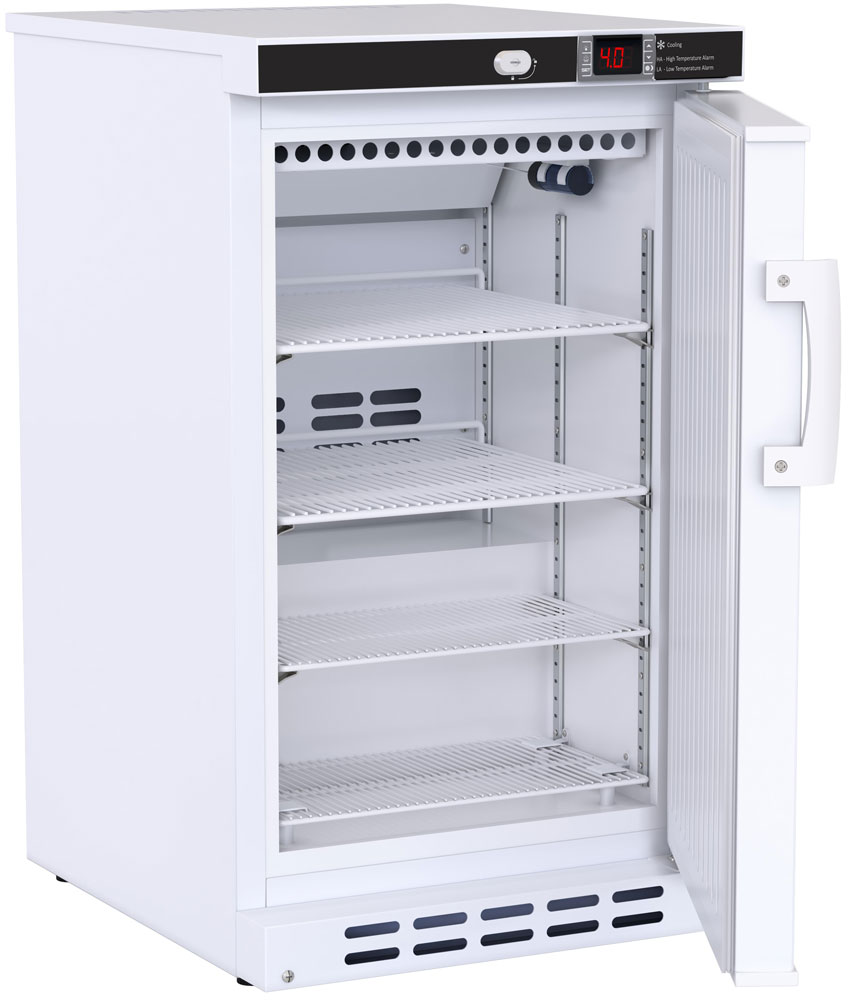

- Shelves: Four shelves (three adjustable/one fixed) with guard rail on back
- Mounting and Installation: Leveling legs
- Interior lighting: N/A
- Airflow management: Forced Air technology, patent pending
- External probe access: Rear wall port (3/8") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior materials: White powder coated steel
- Access control: Pyxis®, Omnicell® and AcuDose RX® compatible
- General warranty: Two (2) years parts and labor warranty, excluding display probe calibration
- Compressor warranty: Five (5) years compressor warranty
- Product Weight: 72 lbs.
- Shipping Weight: 88 lbs.
- Rated Amperage: 0.9 Amps
- Power Plug/Power Cord: NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine storage power cord warning label
- Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
- Agency Listing and Certification: Certified with the temperature performance requirements as defined in the NSF/ANSI 456 Standard for Vaccine Storage for all testing scenarios. UL, C-UL, ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety.
- Included Accessories:
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Temperature Monitor Device - Complies with The Current CDC Guidelines, 3 Years Certification Of Calibration, “Buffered” Probe In The Product Simulated Solution, Min/Max Memory, °F/°C Switchable, Field Installable, And Visual & Audible Temperature Alarm.
Performance
- Uniformity¹ (Cabinet air): +/- 1.1°C
- Stability² (Cabinet air): +/- 0.7°C
- Maximum temperature variation (Cabinet air): +/- 1.2°C
- Temperature rise after an after 8 sec door openings: Temperature did not exceed 7.2°C at any probe for all required NSF/ANSI 456 testing protocols
- Recovery after 3 min door opening: All probes recover to under 8°C within 7.5 min.
- Energy consumption: 0.58 KWh/day
- Average heat rejection: 1.0 KWh/day (142 BTU/h)
- Noise pressure level (dBA): 34 or less installed
- Pull down time to nominal operating temp: 42 min
Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
*Please note this unit ships freight and on a pallet.
Controller, Configuration, Alarms and Monitoring
- Controller technology: Parametric, microprocessor, LED display with 0.1°C resolution
- Display Technology: NSF/ANSI 456 Standard for Vaccine Storage compliant digital temperature display and alarm module with battery back-up, F/C switchable.
- Temperature setpoint range: +1°C to +10°C (Controller settings must remain unaltered to ensure thermal performance compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
- Display probe: Calibrated, stainless steel
- External alarm connection:
- State switching remote alarm contacts.
- Visual and audible indicators.
- Alarms: High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
- Simulator ballast: Glass bead thermal media
Refrigeration System
- Compressor: Hermetic, high performance
- Refrigerant: EPA SNAP compliant, R600a, Isobutane
- Condenser: Hybrid fin and tube with low noise fan
- Evaporator: Plate wall
- Defrost: Cycle optimized, zero energy
Note: This unit must have 4" clearance on sides and back for adequate ventilation
-
