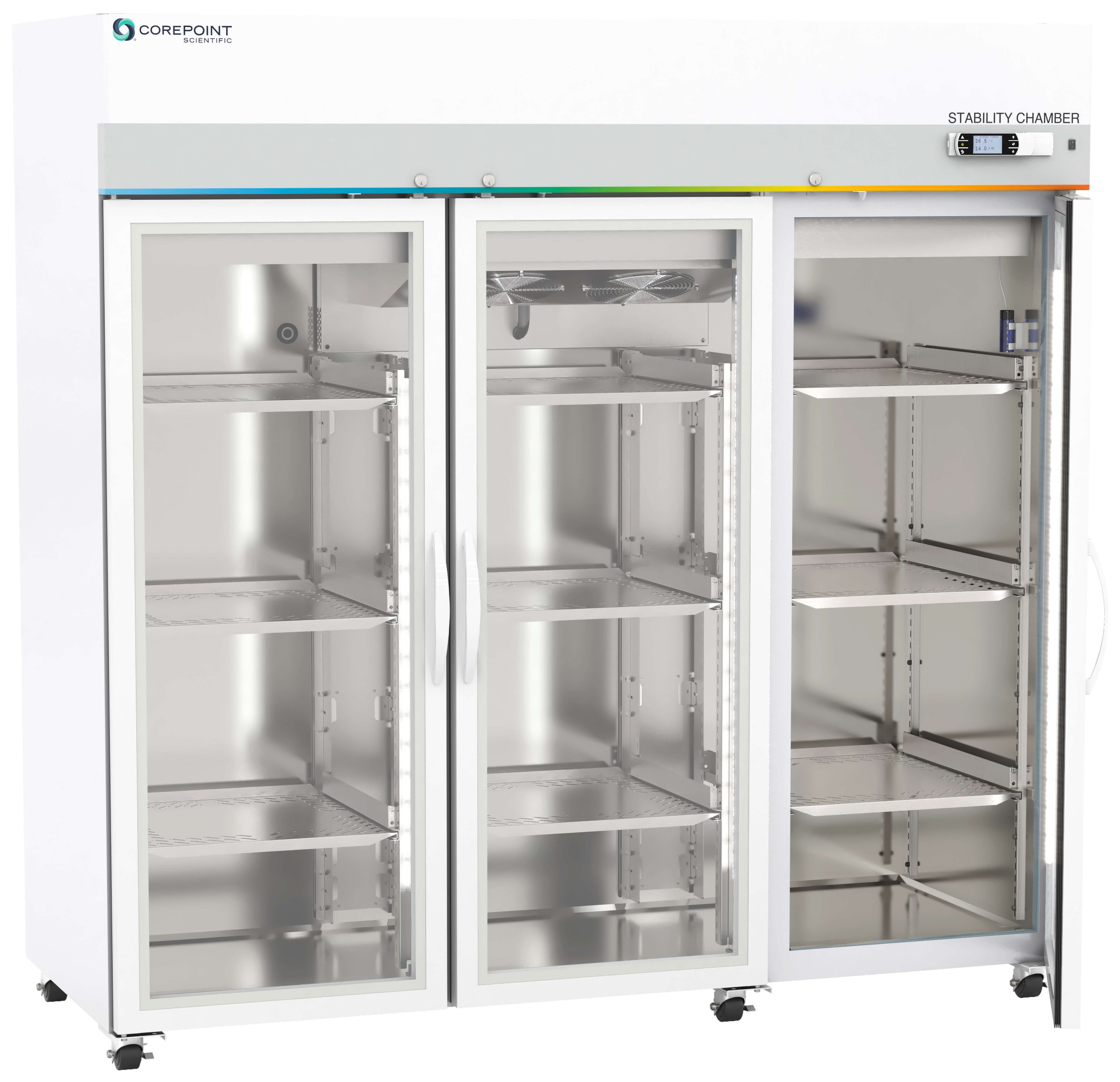

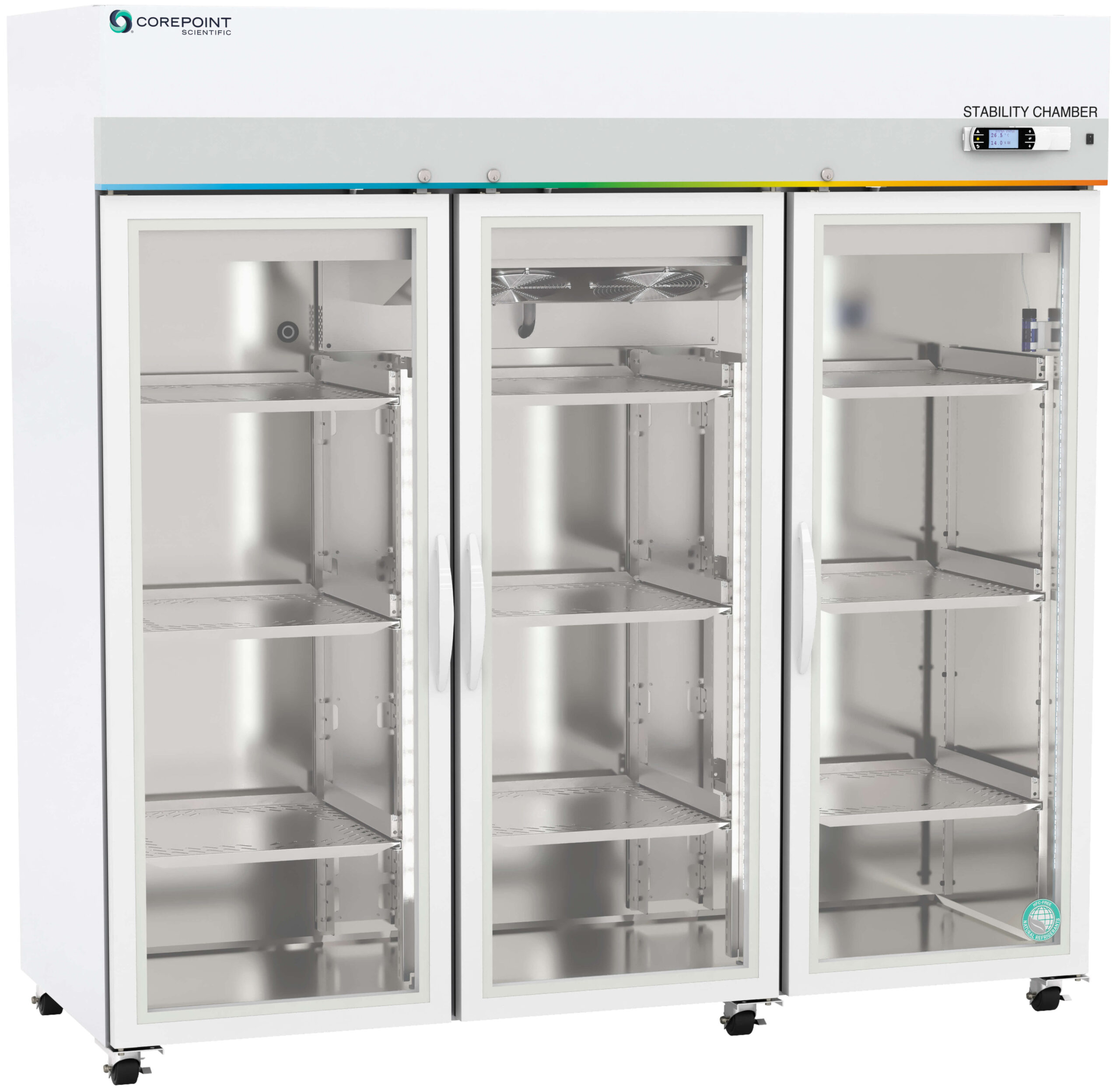

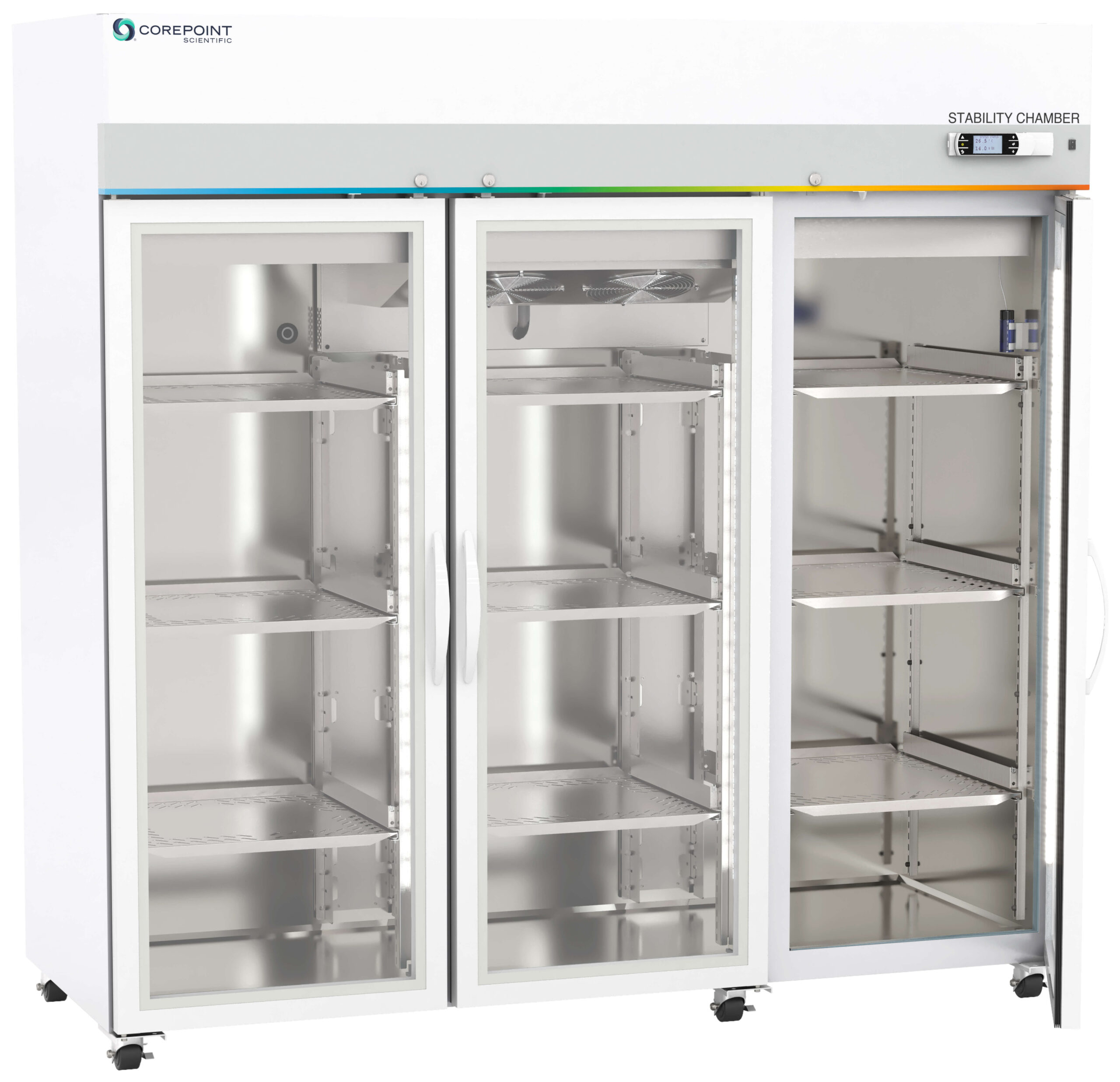

Corepoint Scientific Temperature & Humidity Stability Chamber | Triple Glass Door | 72 Cu. Ft.
Item#: NSRI723WSG/0HThe Corepoint Scientific Temperature & Humidity Stability Chamber provides controlled environmental conditions for testing, storage, and stability studies with a 72 cu. ft. capacity and adjustable temperature range of 4°C to 60°C. A PID controller, programmable ramp and soak, capacitive humidity sensing, and multi-element proportional heating support precise and repeatable temperature and humidity control. Designed for monitoring and reliable operation, the chamber features USB and RS-485 connectivity, event logging, battery-backed controls, and comprehensive visual and audible alarms.
$43,206.00 $36,725.00
- Cu. Ft.: 72
- Exterior dimensions: 81" W x 36 1/4" D x 81 1/2" H with casters; 22 7/8" door swing, 59 1/8 total open depth
- Interior dimensions: 66 3/4" W x 23 3/8" D x 59 1/2" H
- Product Weight: 758 lbs.
- Three glass right and left hinged, self closing, magnetic door gasket for positive seal
- Nine stainless steel, sliding tray shelves
- Six swivel casters (3 1/2”), front casters locking
- Shielded, switched interior LED lighting
- Plenum air distribution
- High density urethane foam cabinet and door insulation
- Probe access port (3/4")
- Temperature Uniformity (Cabinet Air): +/- 1°C from 4°C to 60°C
- Temperature stability: +/- 0.5°C maximum from 4°C to 60°C
- Temperature Control: +/-0.1°C
- Temperature Setpoint Range: 4°C to 60°C
- White-powder coated steel exterior
- Keyed door lock
- 18 months parts and labor warranty
- 5 year compressor warranty
- 115V, 60 Hz, 12.4 Amps
- ETL Listed
- NEMA 5-15P conforms to UL471 requirements
- Shipping weight: 910 lbs.
- Proportional integral derivative (PID) controller with LCD display, °C/°F switchable
- Battery backup- controller
- RS-485 communication (MODBUS)
- USB data port
- Adjustable Temperature Range: 4°C to 60°C
- External alarm connection: State switching remote alarm contacts
- Alarms: Visual alarm indicator, audible alarm indicator, process phase specific temp alarm, process phase specific humidity alarm, power failure alarm, sensor failure alarm
- Programmable ramp and soak
- Real time clock
- Event logs: 100
- Top mounted, variable speed compressor
- EPA SNAP compliant, R290
- RH sensor Type: Capacitive
- Temp sensor type: NTC
- Multi-element, independent proportional electric heating, condensate evaporation
-
