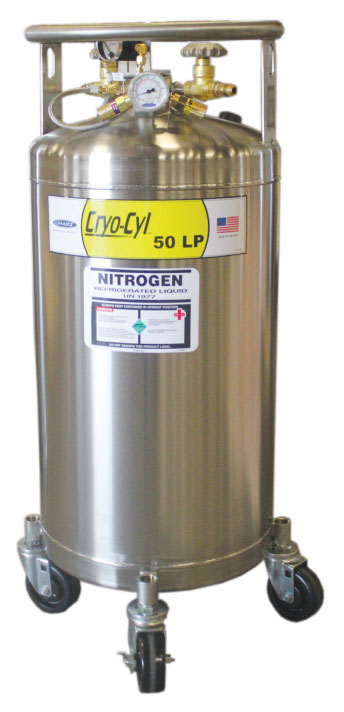

Cryo-Cyl 50L Liquid Nitrogen LN2 Supply Tank Low Pressure Storage System

Item#: 10980663

The Cryo-Cyl Liquid Cylinder is part of Chart's supply system designed specifically for low pressure, liquid nitrogen applications. The Cryo-Cyl tank has a low center of gravity and a polished, stainless steel outer shell- making this cylinder perfect for laboratory and hospital application.

$5,313.77 $5,048.09

  • Capacity-
    • Liquid (Gross)- 50 Liters
  • Performance-
    • NER per day- 8.0%
  • Dimensions-
    • Height- 40.5 in/ 1035.1 mm
    • Outside Diameter- 16 in/ 406 mm
    • Empty Weight- 98.5lb / 47.7kg
    • Full Weight- 188.5lb / 85.5kg
    • Primary Relief Valve Setting- 22 psig/ 1.52 barg
  • 50L gross capacity
  • Designed for liquid nitrogen use only
  • No pressure builder
  • Differential pressure liquid level gauge
  • 4" diameter nickel plated casters
  • Not DOT certified, can be transported per CFR 40 section 173.320 (Cryogenic Exception Rule)
  • 90 day parts warranty, 7 (seven) year vacuum warranty
