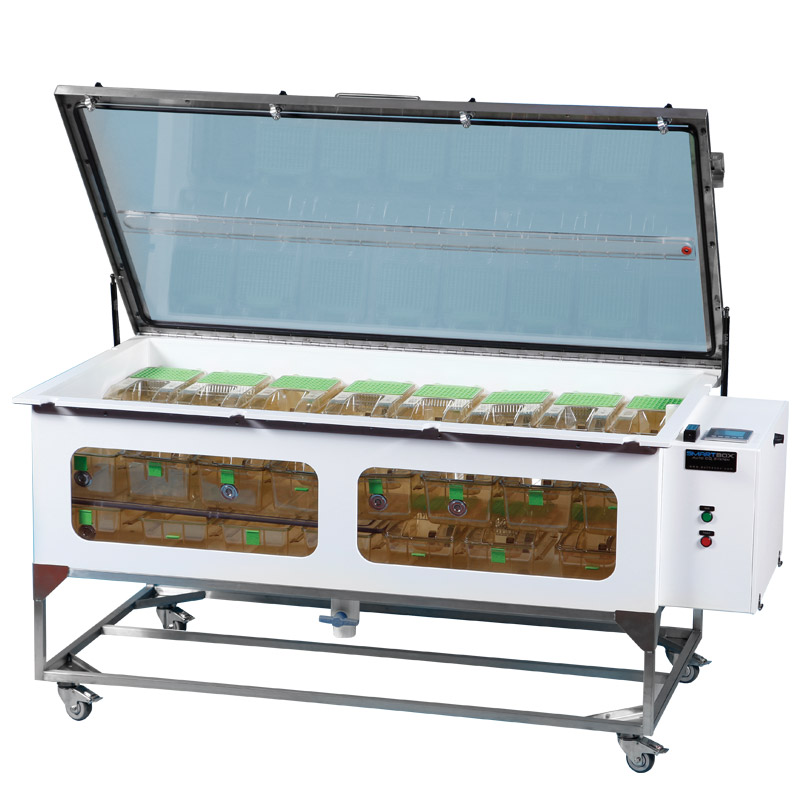

E-Z Systems M2-SBFF-P Fixed Flow Top Access Chamber (62 Cage Capacity)

Item#: M2-SBFF-P

The M2-SBFF-P SMARTBOX ® Fixed Flow Top Access Chamber automates a three-stage euthanasia cycle at the push of a button: charging, dwell time, and exhaust. At the start of a cycle, chamber lid automatically locks and will not unlock until CO2 evacuation is complete. Clear poly-carbonate windows provide visibility while the top-loading lid offers easy cage access. The airtight, gasket-sealed lid prevents gas leakage during operation. The manifold design ensures even gas distribution. The system includes the mobile cart for convenient loading and unloading cages and ease of cleaning. The color touch screen allows easy operation. The M2-SBFF-P accommodates the full range of rodent cages from all manufacturers.

Request a Quote
  • Compliant with AVMA Guidelines
  • Accommodates up to 62 shoebox mouse cages or 18 standard rat cages
  • Single flow rate based on external CO2 source

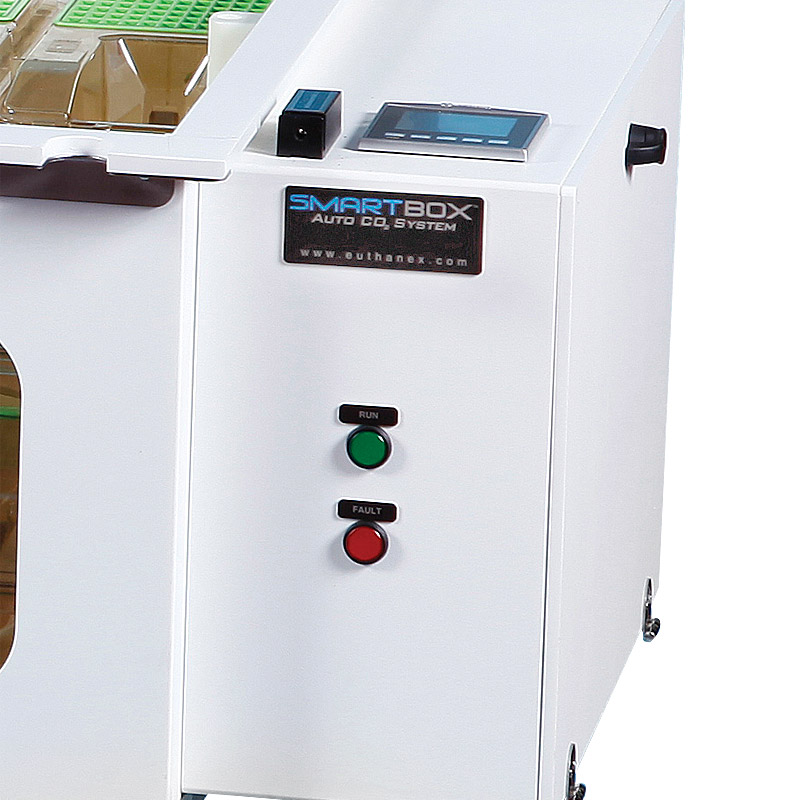

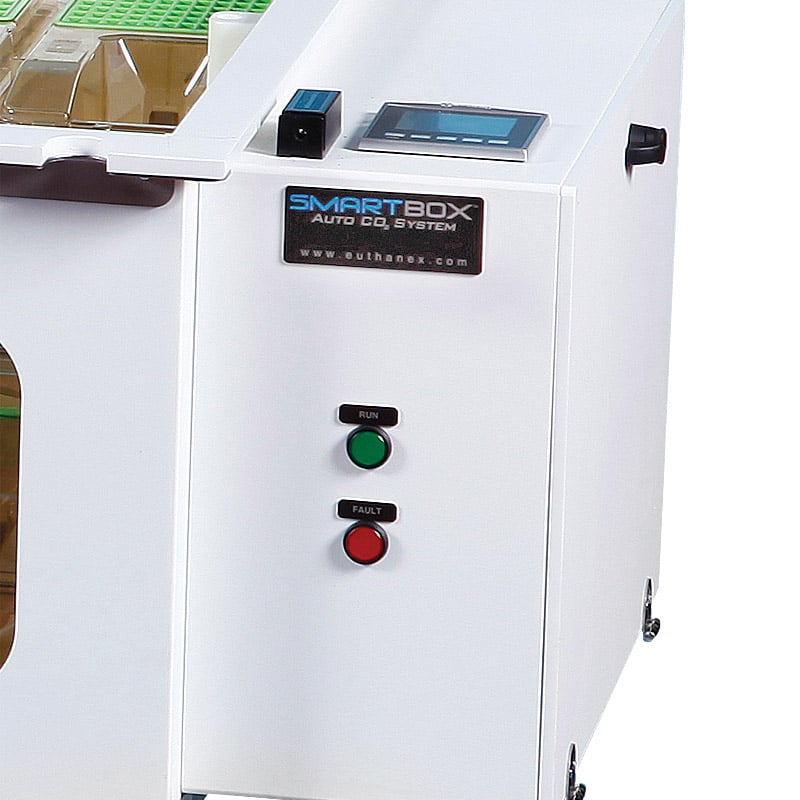

  • Easy-to-use, interactive color touch screen control
  • After starting system, technician is free to do other work
  • Presets can be customized based on facility requirements
  • Automation virtually eliminates operator error
  • Electronically monitored safety system prevents operation when lid is not properly closed
  • Lid automatically locks during operation and unlocks after evacuation
  • Automatic gas evacuation if system shuts down prior to cycle completion

M2-SBFF-P includes: SMARTBOX Side Control Box, one M2 Chamber, Exhaust Blower, 8 feet of 4″” Exhaust Tubing, two 4″” Hose Clamps, Stainless Steel Mobile Cart

Euthanex Catalog

Download

M2-SBFF-P-2 Data Sheet

Download
