ELPRO LIBERO W Independent Monitoring Solution for Rooms & Equipment

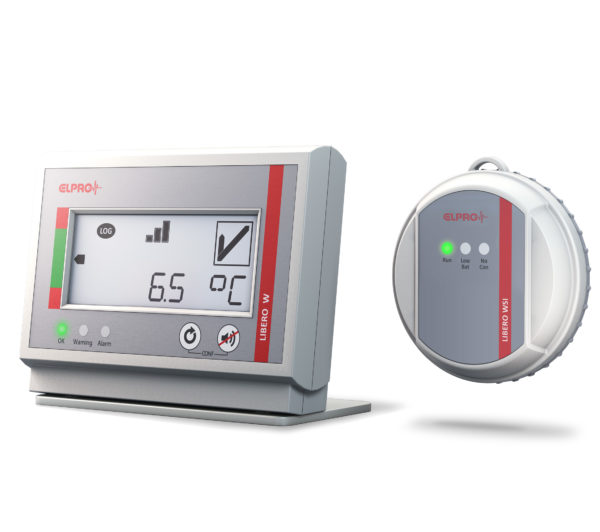

Item#: 801415LIBERO W Independent Monitoring Solution is the most versatile solution for pharmacies, clinical sites and laboratories. Wireless and battery operated; there is no need for a complicated installation. Place the sensor in the refrigerator or the piece of equipment you want to monitor, start the LIBERO W base station and you are up and running in no time. Use a preconfigured device which is ready to go or take advantage of different reporting options and customize the device exactly to your application. For a safe and regular readout the device features a reminder function and an integrated USB cable. Peace of mind for your critical environment.
- Type: Wireless PDF datalogger consisting of sensor and base station
- Application area: Temperature monitoring for refrigerators, transport boxes, incubators or climate chambers.
- Recording options and mode: Multiple use: start / stop or loop mode
- Type of probe: Internal NTC
- Measurement range: -35 °C+50 °C
- Measurement accuracy:
- ±1.0 °C in the range between -35.0 °C and -10.1 °C
- ±0.5 °C in the range between -10.0 °C and -0.1 °C
- ±0.4 °C in the range between 0.0 °C and +25.0 °C
- ±0.8 °C in the range between +25.1 °C and +50.0 °C
- Operating Range: 0 °C..+50 °C
- Measurement interval: 1 min. to 60 mins.
- Run-time (memory capacity): 2 years using 15min. measurement intervals (70,000 measuring points in the base station and up to 2,200 measuring points as buffer in the sensor)
- Exchangeable Batteries:
- Base station: 3 x alkaline AAA
- Sensor: 2 x alkaline AAA or 2 x lithium AAA (for freezer applications)
- Certificate: llac/SCS/DAkkS/NIST/UKAS/ISO 17025 traceable Production Calibration Certificate
- Programmable alarms:
- 8 Temperature alarm levels with single or cumulative alarm delays
- 2 Temperature thresholds with alarm delay
- Programmable warnings:
- Temperature warnings
- Read-out reminder
- Calibration reminder
- No connection warning
- Display: Multifunction LCD, size: 30 x 80mm (1.26 x 3.15 inch)
- Display functionality:
- Status: OK, WARNING, ALARM
- Current temperature measurement
- Indication on actual temperature zone
- Audio alarm off
- Wireless connection strength
- Battery replacement due
- Read-out due
- Report:
- Built-in PDF file generator automatically establishes an evaluation report with embedded data upon connection to an USB port. Complies with the ISO standard 19005-1 Document Management for the long- term preservation of electronic documents (PDF/A) and FDA 21 CFR Part 11.
- 4 report types:
- Daily min/max report
- Status report
- All data report
- Event report
- Warning | alarm signaling: Audio-visual warnings and alarms (LED, buzzer)
- Case | dimension | weight:
- Base Station- ABS plastic material | 115 x 82.5 x 27 mm (4.53 x 3.25 x 1.06 inch) | 195 g (6.88 oz)
- Sensor: ABS plastic material | Ø 73 mm (2.87 inch), 17 mm (0.67 inch) | 70 g (2.47 oz)
- Protection Class: Base station: IP 54 / NEMA 13 | Sensor: IP 67 / NEMA 6
- Data logger configuration and additional analysis software: liberoCONFIG software to create, store and manage individual settings in a logger profile as well as SmartStart, a liberoCONFIG component allowing a safe and quick application of profiles to PDF Logger. elproVIEWER software to access and export embedded data of PDF report, for data analysis and comprehensive report features.
- Technical data wireless connection: Connection between sensor and base station: wireless technology standard to exchange data over short distances in the range of 2.4 GHz.
- Conformity: CE | FCC | Technical Conformity Mark
- Simple installation without cables
- Independent of internet and external power supply
- Uninterrupted record of measuring values
- Automatic and reliable min/max temperature list
- 100 % compliance for pharmacies and clinical sites
