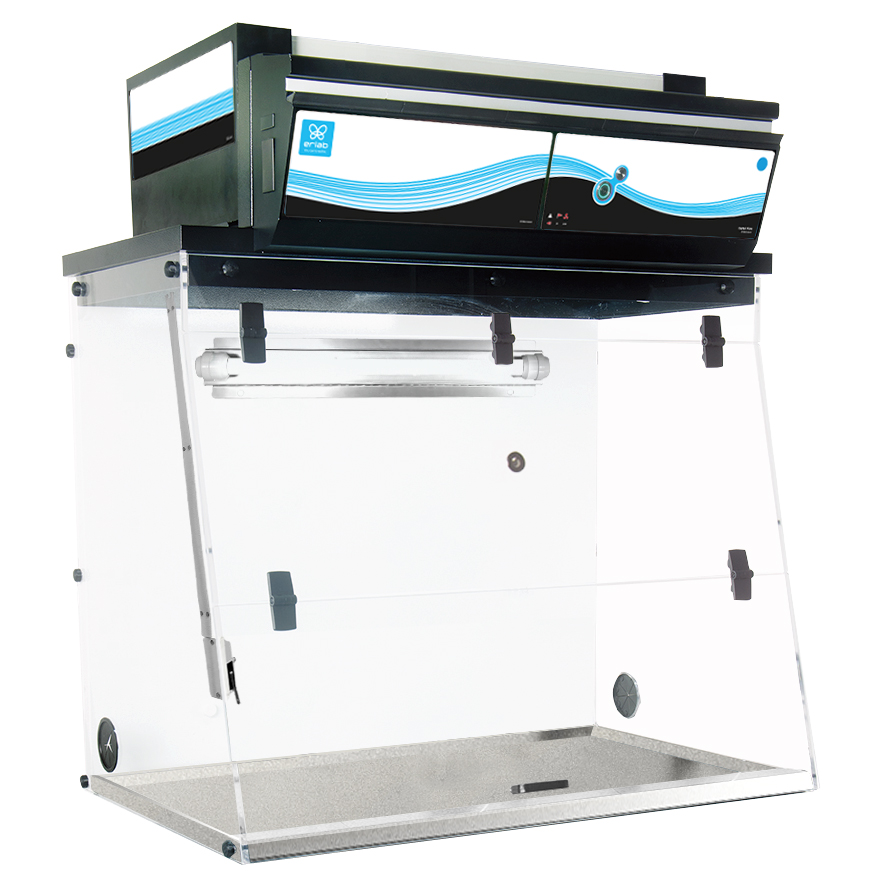

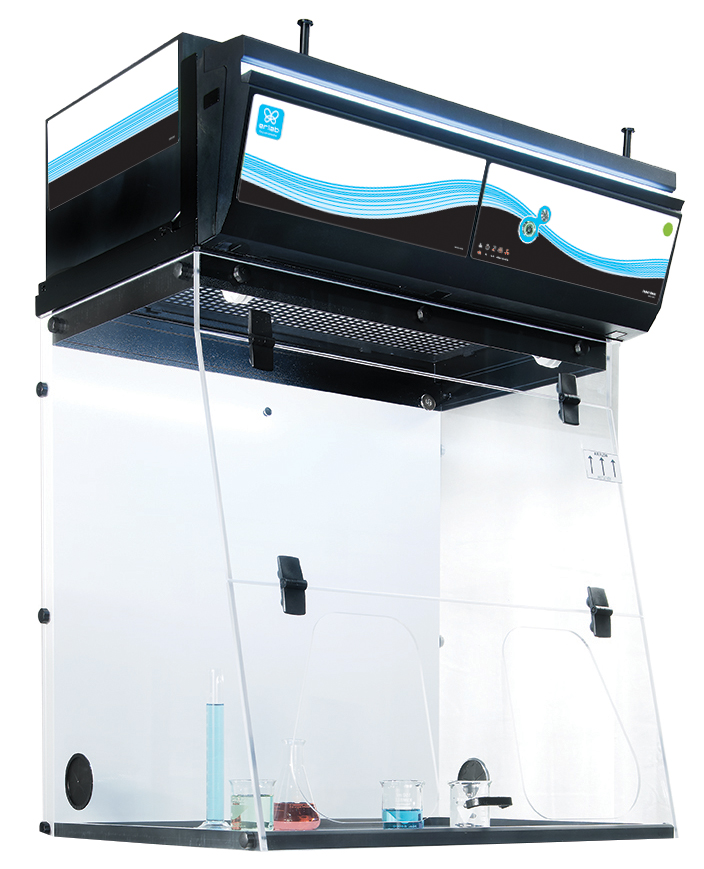

Erlab Captair 391 Smart Ductless Fume Hood
Item#: 391SMARTThe Captair Smart 391 ductless fume hood is designed to protect users during applications that emit harmful vapors/chemical particles. The featured Smart Technology provides a simple & innovative way of communication to quickly see that the hood is operating safely so you can focus your attention on what is most important: your work. The ductless hood provides its own filtration process without having to release any pollutants that are harmful to the environment or the user.
Supplier: Erlab, Inc.
Tags: Laboratory Animal Equipment, Laboratory Fume Hoods, Vivarium Research- External Dimensions: 39 5/8”W x 24 3/8”D x 43 ¾”(min) 50 5/8”(max)H
- Air Flow: 220 m3/h - 129 CFM
- Air Face Velocity: 0.4 to 0.6 m/s - 79 fpm to 118 fpm
- Filtration Module: Polypropylene
- Internal Lighting: 650
- Sash Openings: Hinged Sash
- Structure: Corrosion resistant electro-galvanized steel coated with anti-acid polymer
- Side & Front Panels: Chemical resistant acrylic
- Voltage/Frequency: 220 V/50-60 Hz
- Total Power Consumption: 65 Watts
- Safety Standards: AFNOR NFX 15 211/ANSI Z9.5-2012 filtration efficiency standard (class 1 and 2)
Safer to operate
- Erlab’s advanced carbon filtration technology and/or HEPA/ULPA accommodates your specific needs
- Meets AFNOR NF X 15 211/ANSI Z9.5-2012 filtration efficiency standard (class 1 and 2)
- Sensors that detect filter breakthrough of solvents, acids or formaldehyde
- Safety back up filter in case of main filter saturation
- Continuous monitoring of Air face velocity
- Erlab Safety Program: application analysis and validation, usage certification, filter change reminders
- Connect with eGuard for real-time status, notifications and alerts
Simpler to use
With Smart Technology, you can easily see that the hood is operating safely. Should the light pulse you are notified that:
- Containment has been compromised or,
- The filter has breakthrough or,
- There is a Fan failure
Flexibility
- The configurable filtration column will accommodate application changes
- No ductwork needed. This allows you to move the hood anywhere.
Savings
- No ductwork cost
- Annual energy costs decreases significantly
- Energy savings outweigh filter replacement costs.
Environment
- No dangerous chemical released into the atmosphere
- Low energy consumption
Optional Accessories:
- Work Surfaces: TRESPA® TOPLABPLUS, Glass or 304L Stainless Steel
- Molecode: Detection sensor: Type S, for solvents / Type A, for acids / Type F, for formaldehyde

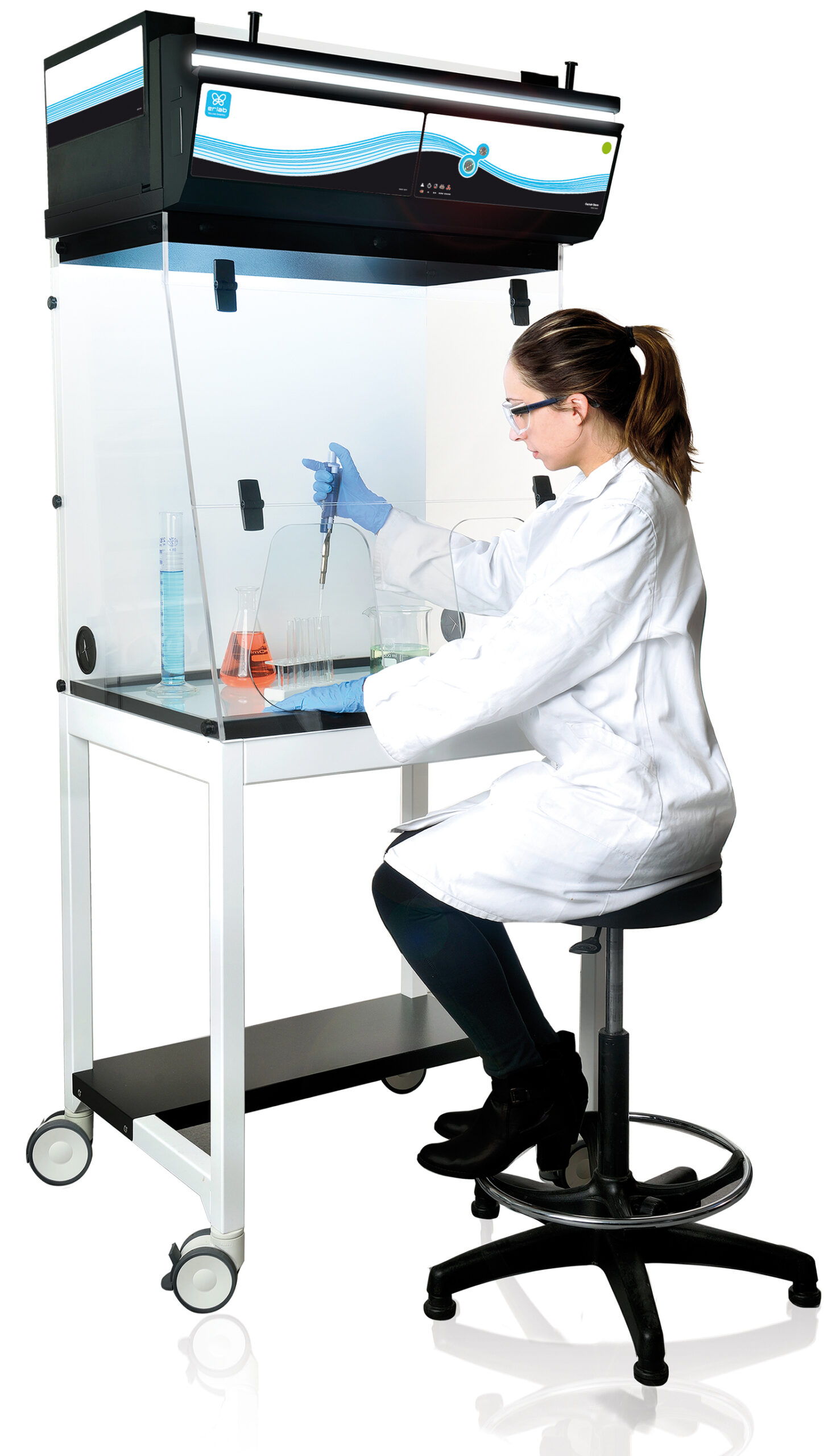

- Benches: Rolling cart (Mobicap) or fixed bench (Benchcap)
- Particulate Pre-filter: Protects the main filter(s) from dust
- Transparent Back Panel: Clear acrylic panel for easy viewing
Erlab Captair 321-391-481-Smart Assembly Instructions
DownloadErlab Captair 391 Smart Ductless Fume Hood Literature
DownloadWeighing in a Filtered Fume Hood - Erlab Ductless Fume Hood White Paper
DownloadRequest a Proposal
