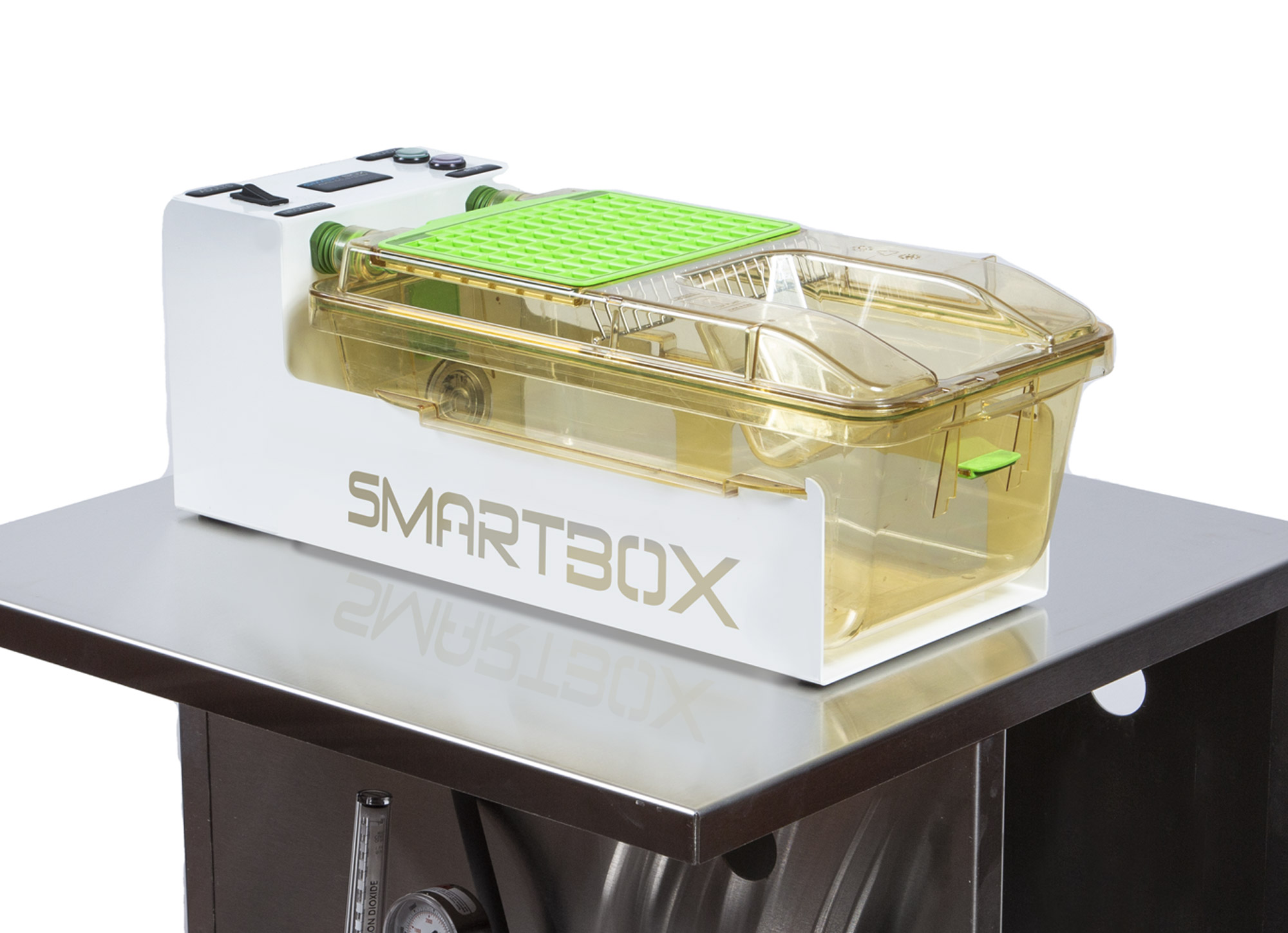

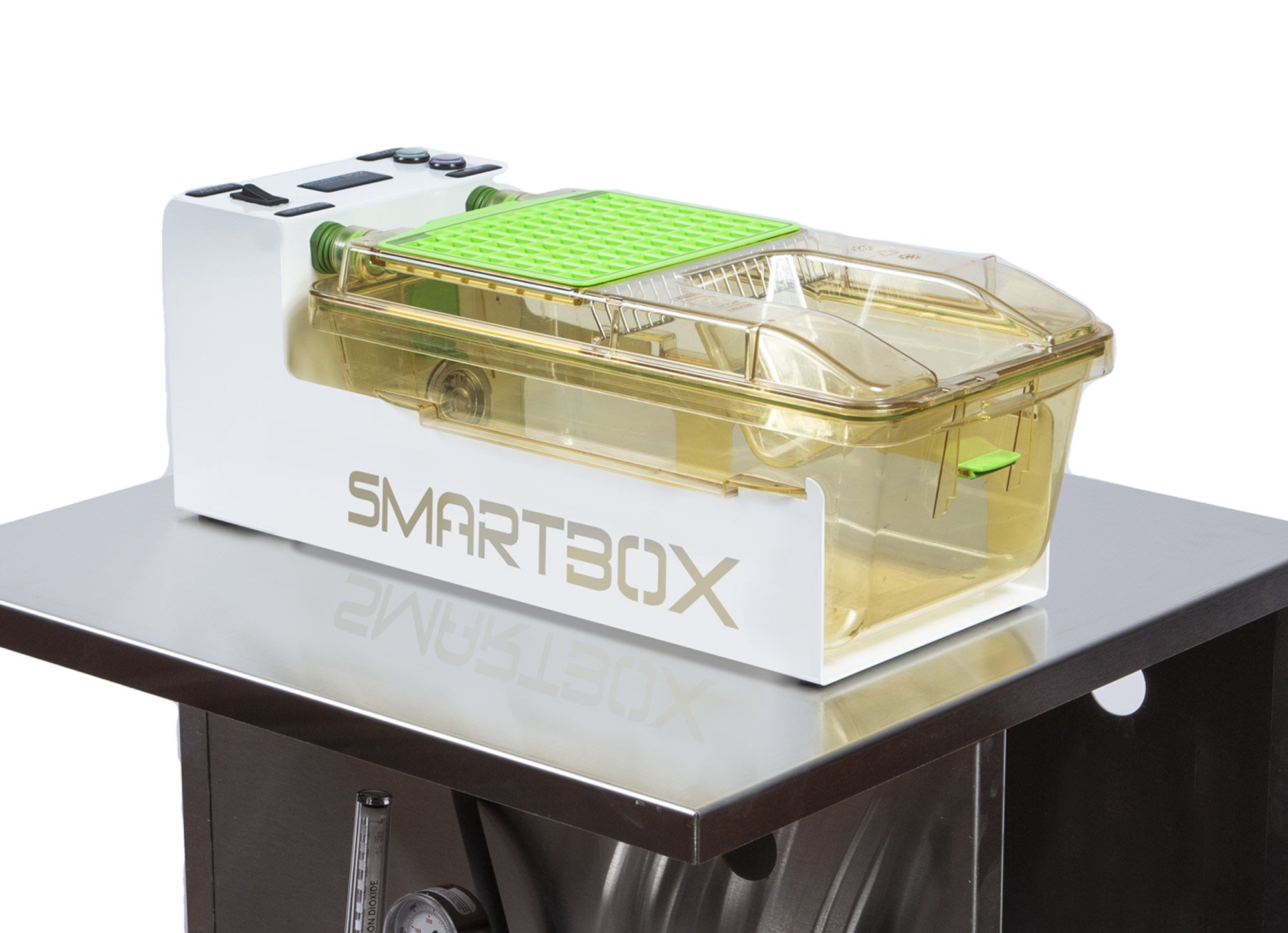

EZ-DOCK SMARTBOX® Euthanasia Station
Item#: EZ-DOCKThe EZ-Dock combines the best features of all our systems. A built-in flow circuit and times are already preset for the specific cage type to ensure AMVA compliancy. Plug in, connect the provided gas line and the system is ready for use! Once the cage is placed in dock properly. The cycles begin and shut offs when time has elapsed. The unit is designed to be as simple as possible.
- Dimensions (LxWxH): 18.50" x 7.16" x 6.75"
- Power Requirement: 120/240 vac
- Incoming Pressure: min 15 psi / max 100 psi
- Output flow rate: 3.5L (Times and flow rates can be adjusted per request)
- Factory Presets:
- Adult - 5 minute charge
- 3 minute dwell
- Neonate - 5 minute charge
- 60 minute dwell
| Part # | Description |
| EZ-DOCK-GL | SmartBox EZ-DOCK Station for Tecniplast Green Line GM 500 Mouse Cages |
| EZ-DOCK-NG | SmartBox EZ-DOCK Station for Allentown NexGen Mouse 500 Cages |
| EZ-DOCK-EM | SmartBox EZ-DOCK Station for Tecniplast Emerald EM 500 Mouse Cages |
| EZ-DOCK-NGM | SmartBox EZ-DOCK Station for Allentown NexGen Max High Density Cages |
| EZ-DOCK-OM | SmartBox EZ-DOCK Station for ACS Opti Mouse Cages |
| EZ-DOCK-IN | SmartBox EZ-DOCK Station for Innovive Mouse Cages |
- Compliant with AVMA Guidelines

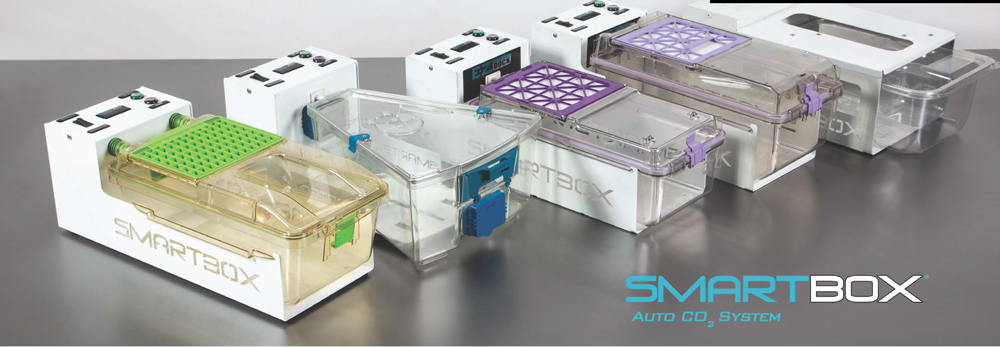

- Currently fits the following cages:
- Tecniplast Green Line GM 500 Mouse Cages
- Allentown NexGen Mouse 500 Cages
- Tecniplast Emerald EM 500 Mouse Cages
- Allentown NexGen Max High Density Cages
- ACS Opti Mouse Cages
- Innovive Mouse Cages
- Cycle starts automatically when cage is docked
- Choose between Adult and Neonates

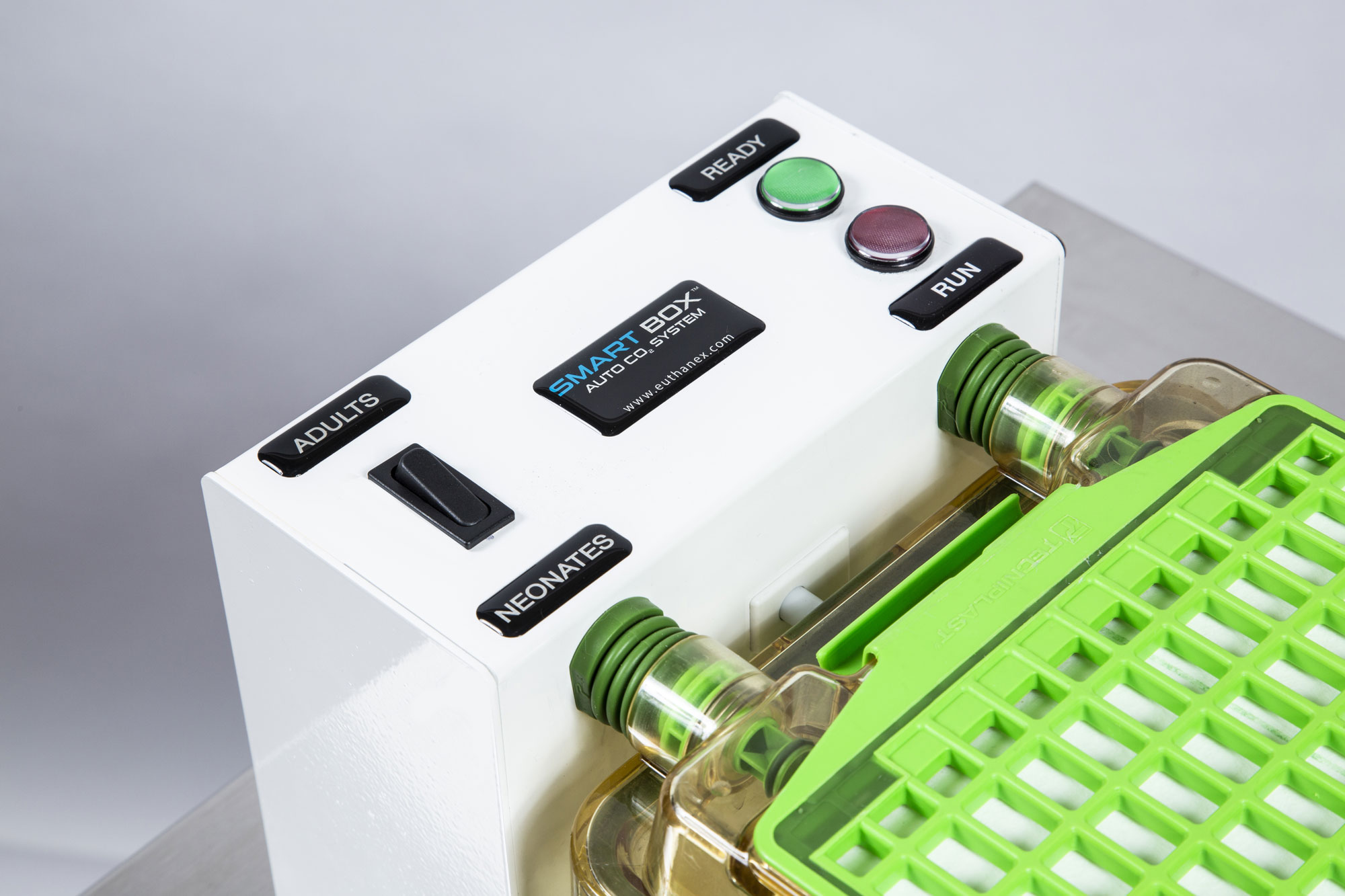

- LED indicator lights show when cycle is running and when complete
- Automatically shuts off if cage is removed for safety
- Uses house or bottle CO2 supply at 15-100 psi
- Super E-Z
