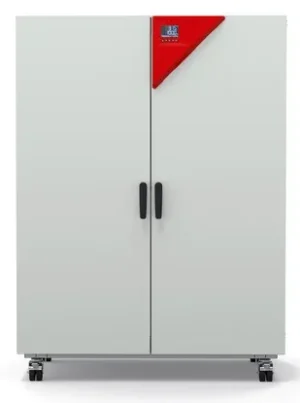

BINDER FED720 Avantgarde.Line Standard Series FED Drying/Heating Chambers w/ Forced Convection & Enhanced Timer Functions, 208V | 26.2 cu.ft.
Item#: 9010-0302The BINDER FED720 Avantgarde.Line Drying and Heating Chamber is a large-capacity forced-convection oven designed for precise drying, heating, conditioning, and thermal testing in demanding laboratory and industrial environments. Its expansive 26.2 cu. ft. chamber, rapid heat-up performance, and temperature range up to 300°C provide outstanding temperature uniformity and consistent results, even with high-volume sample loads. Featuring enhanced timer functions, dual-door access, and support for up to 16 shelves, the FED720 delivers exceptional flexibility, productivity, and reliability for large-scale research, quality control, and production applications.
$11,993.00 $11,393.35
Performance Data Temperature
- Heating-up time to 150 °C [min]- 25
- Recovery time after 30 seconds door open at 150 °C [min]- 6
- Temperature fluctuation at 150 °C [± K]- 0.6
- Temperature range +10 °C above ambient temperature to [°C]- 300
- Temperature variation at 150 °C [± K]- 2
Air change data
- Air change (approx.) at 100 °C [x/h]- 5
Electrical data
- Nominal power [kW]- 4.5
- Phase (Nominal voltage)- 3~
- Power frequency [Hz]- 60
- Rated Voltage [V]- 208
- Unit fuse [A]- 3 x 16
Doors
- Unit doors- 2
Housing dimensions not incl. fittings and connections
- Depth net [in]- 34.28
- Height net [in]- 62.60
- Width net [in]- 45.90
Internal Dimensions
- Depth [in]- 22.46
- Height [in]- 51.20
- Width [in]- 39.40
Measures
- Interior volume [cu.ft.]- 26.2
- Load per rack [lbs]- 99
- Net weight of the unit (empty) [lbs]- 357
- Permitted load [lbs]- 694
- Wall clearance back [in]- 6.3
- Wall clearance sidewise [in]- 3.94
Environment-specific data
- Energy consumption at 150 °C [Wh/h]- 800
- Sound-pressure level [dB(A)]- 43
Fixtures
- Number of shelves (std./max.)- 2/16
- Temperature range: ambient temperature plus 12 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- Ethernet interface
- USB port for recording data
- Warranty: 2 years parts & labor
