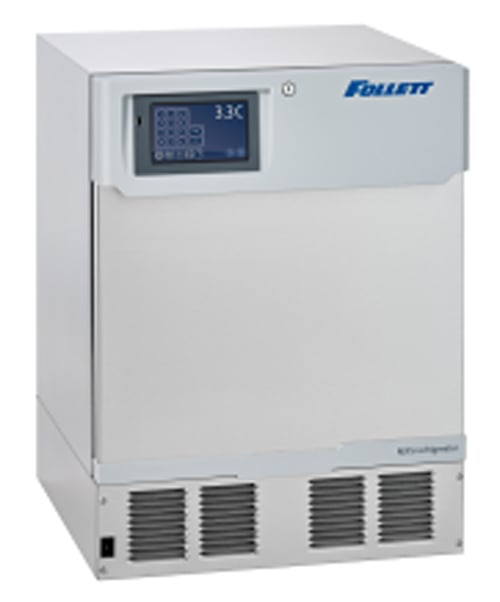

Follett 4.5 Cu. Ft. Benchtop Blood Bank Refrigerator with TouchScreen Controller & Keypad | Stainless Steel
Item#: REF5BBi-TR-KP-00Follett REF5BBi-TR-KP-00 Benchtop Blood Bank Refrigerator provides 4.5 cu. ft. of refrigerated storage for up to 60 blood bags. A variable-capacity compressor and microprocessor controller maintain ±1°C temperature performance throughout the cabinet. The compact design fits below 34-inch ADA countertops without casters.
A 7-inch capacitive touchscreen provides temperature monitoring, programmable alarms, and integrated data logging. Data can be downloaded through the USB port for recordkeeping. A NIST-traceable product probe and rechargeable battery backup support dependable temperature monitoring.

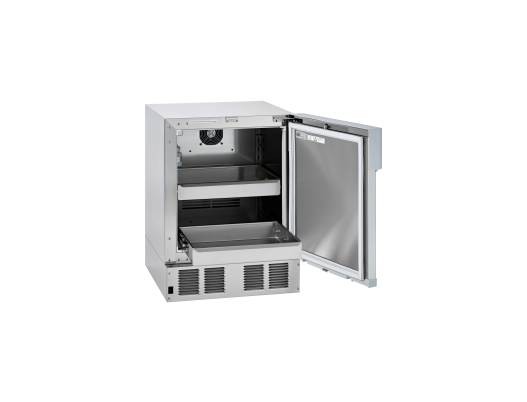

The keypad provides an additional level of access control for secure blood product storage. Two full-extension stainless steel drawers keep blood bags organized and accessible. The unit also includes a mechanical lock, third-party probe port, interior lighting, and remote alarm output. ENERGY STAR® certification and R600a refrigerant support efficient operation.
$12,960.00 $8,346.24
- Cu. Ft.: 4.5 cu ft (127 L)/ (60) 450 ml blood bags
- Exterior Dimensions: 31.52”H x 23.75”W x 25.62”D (Depth cabinet); 27”D (Depth with façade)
- Interior Dimensions: 21.54”H x 19.75”W x 18.32”D
- Storage system: (2) full extension stainless steel drawers-18.00" x 14.50" x 3.00" (45.7 cm x 36.8 cm x 7.62 cm)
- Door: solid, foamed stainless- 23.81" x 25.21" x 1.63" (60.5 cm x 64.0 cm 4.0 cm)
- Door lock: cylinder lock
- Door handle: molded into front façade
- Door hinges: top and bottom mount, self-closing, right or left
- Gasket: magnetic
- 115 V/60/1
- 1.5 full load amps, NEMA 5-15P 90º hospital-grade plug , low profile, SJT, 16 AWG, 8' (2.4 m) cord
- Maximum size of branch circuit overcurrent device: 15 amps dedicated circuit
- Temperature display: 7" capacitive touchscreen
- Battery back-up: rechargeable SLA 12V battery
- 3rd part probe access: rear access port
- Factory preset: 3.3 C
- Date and time: programmable
- Controller security: choose “on” or “off” — 4 digit password to prevent interface setting/selection changes
- Product simulation bottle: (1) 125 ml
- Programmable operating range: 1.1 to 10 C (34 to 50 F)
- High and low product temperature alarm: audible and visual, user programmable set points in F or C
- Probe error alarm: audible and visual - product temperature probes, refrigeration and defrost
- Alarm Mute: user selectable
- Alarm volume: 0 -10 adjustable
- Min/max temperature log: shows highest and lowest product temperature since last reset occurred
- Alarm output: 12V DC On/Off, located on back panel
- Refrigerant and charge: R600a refrigerant, 1.4 oz charge
- Energy consumption: 0.57 kWh/day
- Nominal heat rejection: 313 BTU/hr (92 W)
- Max heat rejection: 788 BTU/hr (231 W)
- Shipping size (W x D x H): 30.00" x 33.00" x 35.00" (76.2 x 83.8 x 88.9 cm)
- Approximate net weight: 137 lb (62.2 kg)
- Approximate ship weight: 172 lb (78.1 kg)
- Variable capacity compressor and microprocessor controller provide a ±1 C (1.8 F) temperature performance throughout the cabinet
- Low GWP natural refrigerant R600a
- Extremely quiet
- ENERGY STAR® certified
- Fits below 34.00" (86.4 cm) ADA countertops without casters
- Temperature surveillance module (7 day analog chart recorder)
- Refrigeration system settings accessed through door-mounted controls
- 7" LCD capacitive touchscreen digital temperature display available in user-programmable C or F with choice of product or air temperature
- Integral event and data logging with easy downloading via USB port - rechargeable battery
- User-programmable audible and visual high/low alarms
- Quick-connect product temperature probe with 1 year certificate of NIST-traceable calibration
- Lighted cabinet
- Back wall port provides entry for third-party probes
- Mechanical lock – mounted on top-center of door
- Lockable controller so set points cannot be inadvertently changed
- Flexible internal storage configuration (drawers and shelves interchangeable)
- Stainless steel construction on exterior and interior
- Two stainless steel drawers standard
- Back wall evaporator and front ventilation (no top, back or side clearance required)
- Right-hinged door with integral handle and magnetic gasket door closure (left-hinged door available, please inquire)
- Warranty: 2-year parts and labor, 5-year compressor parts only
