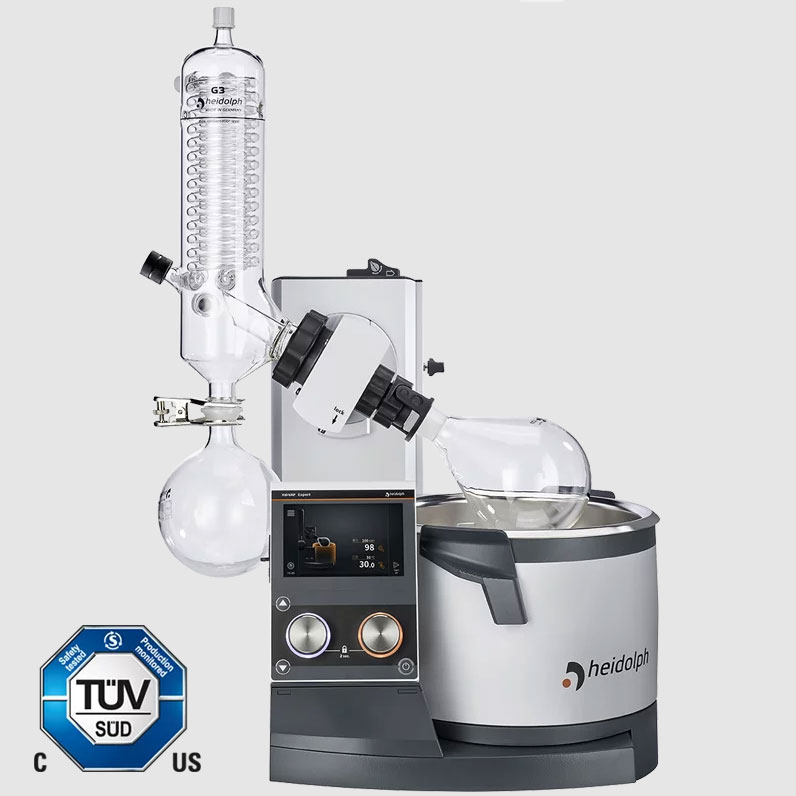

Heidolph Hei-VAP Expert Rotary Evaporator
Item#: HEI-VAPEXPERTThe Heidolph Hei-VAP Expert Rotary Evaporator offers precise setting of rotation speed and heating bath temperature on the digital touch display or – for quick access during an active process – directly via the knobs on the operating panel.
- Lift: Hand lift or Motor lift
- Rotation speed range: 10 - 280 rpm
- Rotation speed indicator: 5" LCD color graphic display
- Heating capacity: 1,300 W
- Overheat protection bath: cut-off at 5°C over set temperature via separate PT 1000
- Bath temperature setting: 5" LCD color graphic display
- Heating bath temperature control: electronic / digital
- size evaporating flask: 5 l
- Integrated vacuum controller -
- Timer: Yes
- Integrated Hei-CHILL controller -
- Vacuum program Dynamic AUTOaccurate (requires AUTOaccurate sensor) -
- Programmable ramps - Yes
- Condensing surface: 1,400 cm
- Condensing surface XL condenser: 2,200 cm
- Central operating panel with 5“ touch display
- Clear display of all values (Basic and Advanced modes)
- With timer, limitation of max. temperature, multilingual menu and text display for error messages
- Separate knobs for rotation and heating with locking function to prevent accidental readjusting
- LED ring lights and pictogram to display the activity even from a distance
- Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller
- USB and Micro SD interfaces
- Optional display of vapor temperature
- Subsequent upgrade to Hei-VAP Expert Control possible, including vacuum and chiller control
Hei-VAP Rotary Evaporator series - Intelligent Evaporation
Heidolph Hei-VAP Core Rotary Evaporator - Focused on the Essentials
Heidolph Hei-VAP Expert/Ultimate Rotary Evaporator - Simply Intuitive
Heidolph Hei-VAP Expert/Ultimate Rotary Evaporator - Smart Features
Heidolph Hei-VAP Series Rotary Evaporator - One Concept for all Requirements
