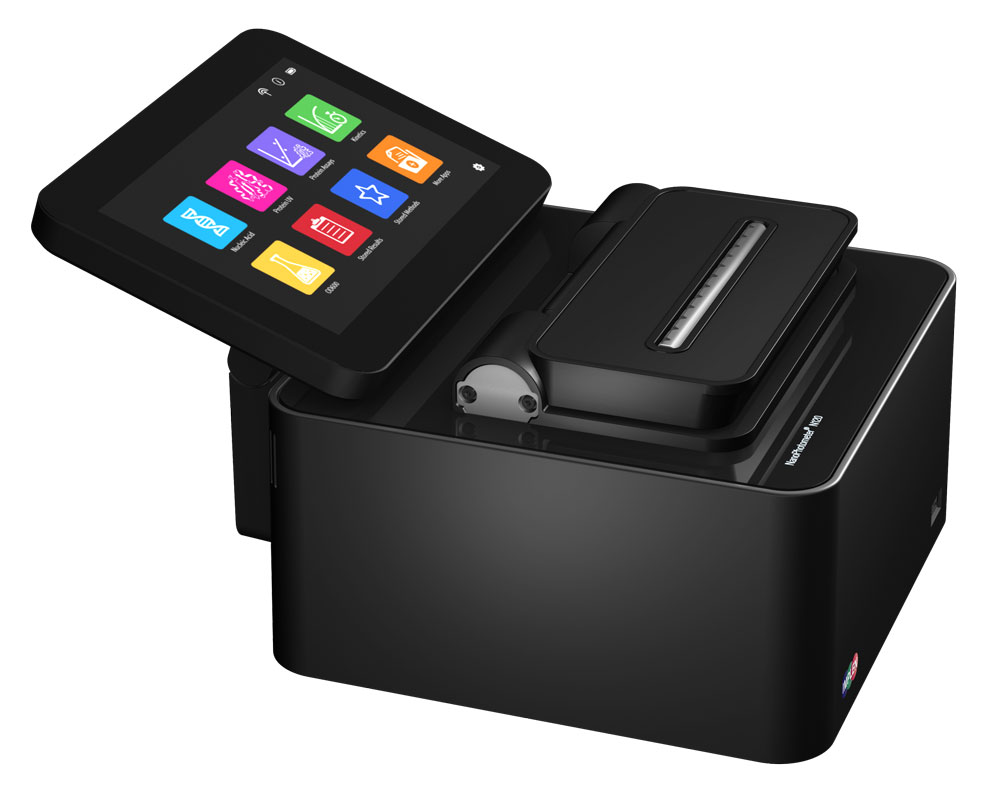

Implen NanoPhotometer® N120 UV/Visible Spectrophotometer

Item#: N120

The flexible Implen NanoPhotometer® N120 UV/VIS spectrophotometer offers NanoVolume measurements of up to 12 samples per run in just 20 s, made in Germany. The N120 is especially made for pharma/biotech and academic researchers analysing a greater number of nucleic acid and protein samples. It provides full scan data from 200 - 900 nm for various life science applications like quantification and qualification of nucleic acids, proteins or cell cultures. The stand-alone design with an integrated touchscreen and small footprint make it ideal for bench operation in pharma, biotech or academic laboratories. Built-in file server and LIMS/eLN integration through REST API offering future-proof data export via USB and Ethernet cable or WiFi. Barcode reader and dymolabel printer ready. 21 CFR part 11 compliant software available.

$24,938.00

Request a Quote
Supplier:
  • Display: 1024×600 pixels; glove compatible touchscreen
  • Absorbance Accuracy: <1.75 % @ 0.7 A @ 280 nm
  • Photometric Range: 0.04 - 160 A
  • Wavelength Accuracy: ±0.75 nm
  • Wavelength Reproducibility: ±0.2 nm
  • Compatible With: Windows 8, 10 (32 and 64 bit), OS X (Intel x86 and Apple M1), iOS and Android OS
  • Detection Limit:
    • Detection range BSA: 0.06 - 230 mg/ml (microvolume)
    • Detection range dsDNA: 2 - 8000 ng/µl (microvolume)
  • Detector: 3648 CCD Array
  • Interfaces: 2x USB A, USB B, HDMI, Ethernet, WiFi
  • Languages: English, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
  • Light Source: Xenon flash lamp
  • Memory: 128 GB
  • Reproducibility:
    • <0.004 A @ 0 - 0.3 A @ 280 nm
    • CV <0.4% @ 0.8 A @ 280 nm (Absorbance)
  • Measurement Time: 1.7 - 2.5s per sample
  • No. of samples: 1-12
  • Sample Size: 2.0- 3.5 µl
  • Spectral bandwidth: <2.5 nm
  • Dimensions: 20×20 cm
  • Weight: <5.2 kg
  • Preprogrammed applications for (labeled) DNA, RNA and oligos (260 nm)
  • (Labeled) purified proteins and peptides (200 to 280 nm)
  • Protein assays (BCA 562 nm, Bradford 595 nm, Lowry 650 nn)
  • Kinetics (200 to 900 nm)
  • Optical density measurements (600 nm)
  • Manual methods (wave length, wave scan, ratio, concentration, standard curve)
  • Recalibration-free
  • Optional IQOQ package available
  • Optional CFR21 software available
