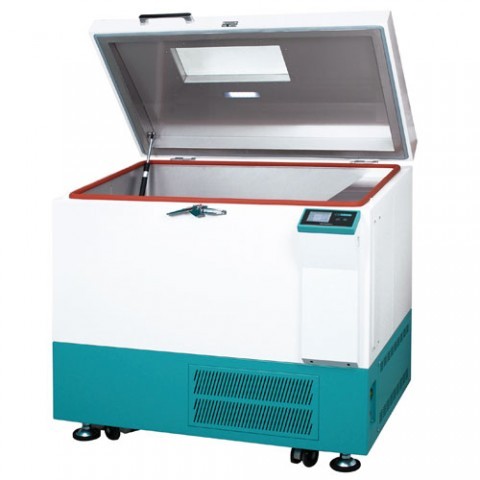

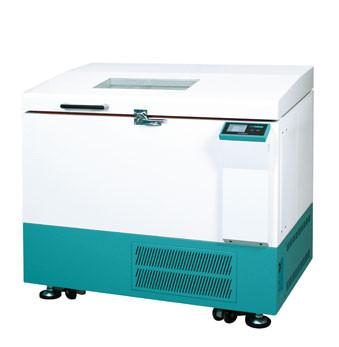

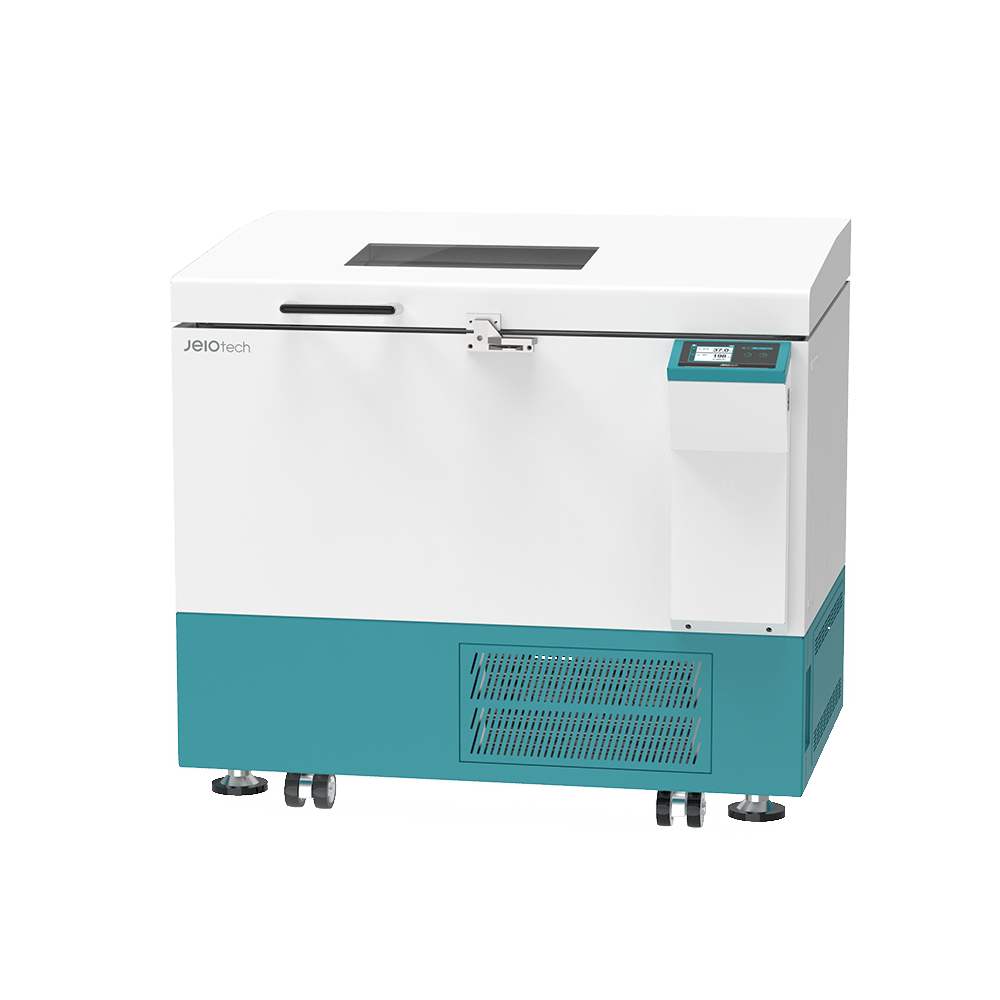

Jeio Tech ISF-7100R Large Capacity Floor Standing Incubated Shaker (Refrigerated)
Item#: AAH23575UThe ISF-7100R Large capacity floor standing incubated shaker from Lab Companion provides up to five 6L flasks and offers heavy workload shaking with rapid heating and cooling performance.
- Chamber volume (L / cu ft): 270 / 9.5
- Platform Dimensions (W x D, mm / inch): 755 x 520 / 29.7 x 20.5
- Interior Dimensions (W x D x H, mm / inch): 894 x 634 x 480 / 35.2 x 25 x 18.9
- Exterior Dimensions (W x D x H, mm / inch): 1128 x 854 x 1035 / 44.4 x 33.6 x 40.8
- Net weight (Kg / lbs): 287 / 632.7
- Electrical requirements (120V, A): 60Hz, 10
- Temperature Range (℃ / ℉): Amb. -20 (Min. 4) to 80 / Amb. -36 (Min. 7.2) to 176
- Temperature Fluctuation at 37℃ (±℃ / ℉) in flask: 0.1 / 0.18
- Temperature Variation at 37℃ (±℃ / ℉) in flask: 0.5 / 0.90
- Refrigerator (Hp): 1/6
- Motion type: Orbital
- Speed range (rpm): 30 to 500
- Max. speed per permissible load (rpm):
- 500 (max. 15 kg / 33.1 Ibs)
- 400 (max. 25 kg / 55.1 Ibs)
- 350 (max. 35 kg / 77.2 Ibs)
- Amplitude size (mm / inch, dia.): 25.4 / 1
- Speed stability2) (rpm, %): ±1
- Timer (count-down): 999 hr 59 min.
Structural and Functional Features
- High-capacity model designed for large volume incubated shaking.
- The ISF floor-standing shaking incubator provides stable agitation, even with heavy-load samples, supported by patented shaking technology.
- Equipped with a durable direct-drive motor backed by a 5-year warranty.
- Supports diverse experimental conditions, with temperature settings up to 80°C and shaking speeds up to 500 rpm.
- Patented low-front design makes loading and unloading large, heavy samples easier.
- Structural design allows easy movement and secure fixation.
- Countdown timer for agitation control, adjustable up to 999 hours and 59 minutes.
Outstanding Safety Features
- Advanced electronic over-temperature protection system (A-OT) uses an independent precision temperature sensor and controller for safe, reliable temperature cutoff.
- Backup mechanical over-temperature protection system (B-OT) cuts off excessive heat even in the event of electronic system failure or error.
- Soft start and stop function provides smoother and safer agitation.
- Controller lock helps prevent accidental operation.
- Status display shows operating conditions, system status, and error alerts.
- Over-current protection restricts operation if an obstruction is detected inside the system.
Smart Self-Diagnosis
- Real-time alarm system monitors deviations between set and actual RPM/temperature values and triggers alerts when needed.
- Automatically stops operation when the door is opened and activates an alarm after 3 minutes.
- Auto-resume automatically restores the previous operating state after power is restored.
- Sensor protection immediately stops operation if a temperature sensor issue is detected.
User-Friendly Features
- Precise RPM and temperature control supported by auto-tuning, microprocessor PID control, and 3-point calibration.
- Mobile monitoring anytime, anywhere through the LC Connected system and mobile app. Requires optional LC GreenBox.
- FDA 21 CFR Part 11 compliance readiness through integration with optional LC DataKeeper, supporting GMP audit preparation.
- Spill drain port for cleaner and easier maintenance.
- Easy to attach and detach large volume sample thanks to the inclined lid structure.
