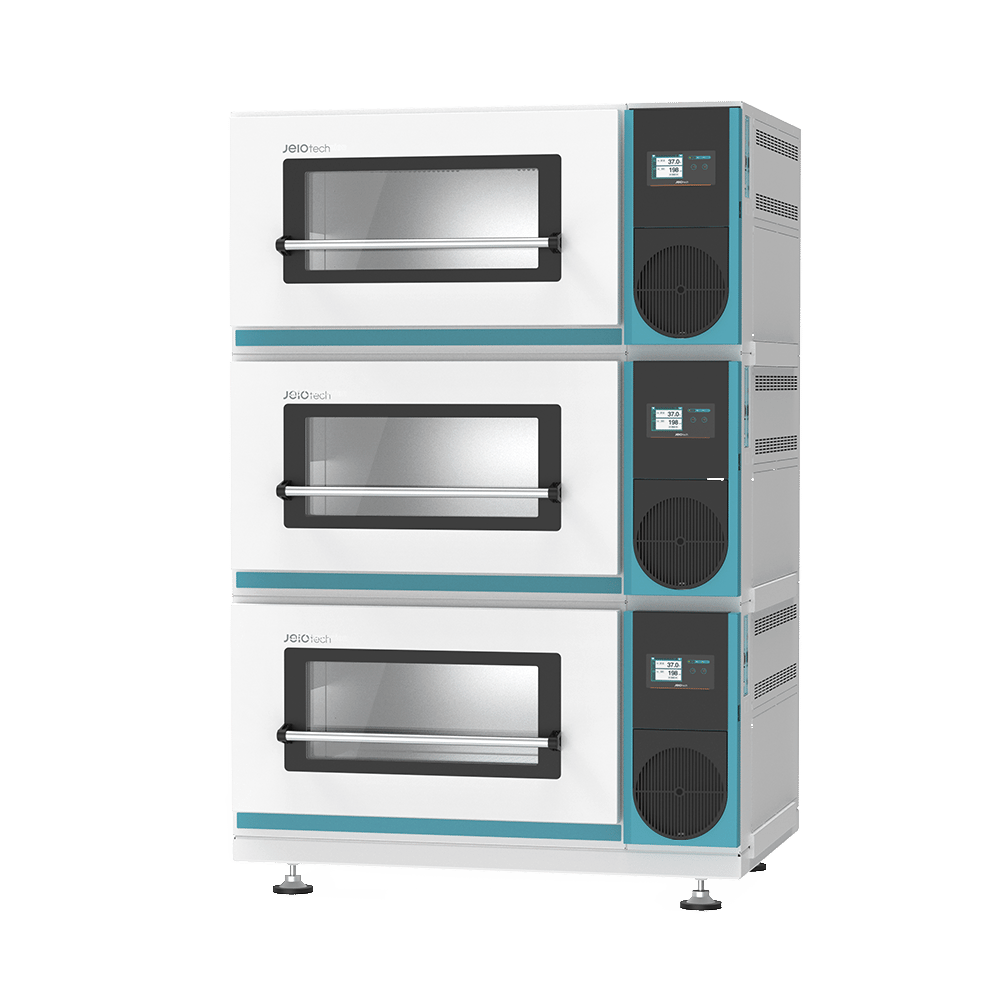

Multi-purpose incubated shakers from Lab Companion feature a wide range of temperature control and large chamber volume with the ability to stack up to 3 units for maximum utilization of lab space.
Please note: Platform, clamps and stacking kit are not included in price and must be purchased separately
Interior (W×D×H, mm / inch): 809×624×393 / 31.9×24.6×15.5
Exterior (W×D×H, mm / inch): 1310×996×755/ 51.6x39.2x29.7
Net weight (kg / Ibs): 365 / 804.7
Performance
Temperature range: Ambient +10°C to 80°C
Competitive high shaking speed from 30 to 400 rpm (stackable : 30 to 250)
Orbital shaking motion in 19.1mm diameter. 25.4 mm
Microprocessor PID control.
Three point temperature calibration / Automatic tuning.
Wide speed range even with heavy workload.
Ideal DD(Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
Pleasant test environment by the smooth acceleration and deceleration control.
Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
Air-tight silicone door seal to provide excellent temperature uniformity.
Features:
Intuitive touch screen LCD controller with easy icons and logical menus.
Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
Wide sample monitoring.
Clear observation of samples without affecting inner chamber’s environment thanks to the transparent viewing window with bright LED lamps.
Repetitive task can be easily performed as the platform stops where it starts.
Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Two adjustable-height shelves provided allow static incubation or refrigeration, which increase storage capacity.
Built-in electrical outlet with a safety cover inside the chamber.
Corrosion resistance stainless steel interior.
Easy-access drain system with a quick disconnect valve offers great convenience to clean up of spills.
Built-in RS-232 port and USB port for external control and data collection.
The unit comes with retractable foot caster, beneficial for easy mobility during installation or relocation.
Jeiotech ISS-7000 Series Stackable Incubated Shakers Literature
