MVE LAB 10 Aluminum Cryogenic Dewar (Capacity: 10L)
Item#: 10740281The MVE LAB Series cryogenic LN2 dewars get their name from their acceptance in laboratories and medical facilities worldwide. These high-efficiency, super insulated dewars are the most convenient, economical way to store and dispense liquid nitrogen. Many lab units can be fitted with pouring spouts, pressurized dispensing devices or dipper to aid in the transfer of liquid nitrogen.
Due to part supply issues in the cryogenic industry, this product has an extended lead time. Please inquire for details.
$962.00 $817.70
-
Performance
-
LN2 Capacity L: 10
-
Static Evaporation Rate* L/day: 0.18
-
- Unit: Dimensions
- Neck Opening in. (mm): 2.18 (56)
- Usable Height in. (mm): 13.5 (343)
- Overall Height in. (mm): 21.5 (546)
- Outer Diameter in. (mm): 10.3 (260)
- Internal Diameter in. (mm): 8.3 (210)
- Weight Empty lb. (kg): 12 (5.4)
- Weight Full lb. (kg): 31 (14)
- Designed for large capacity storage
- Low liquid nitrogen consumption
- Convenient lightweight package
- Durable, tamper-proof lid design
- High strength neck tub reduces liquid nitrogen loss
- Strong light weight aluminum construction
- Advanced chemical vacuum retention system
- Spider design on platform for easy retrieval and insertion of product canisters
-
Manual Discharge Device for MVE LAB 10 Liquid Nitrogen System
Item #: 10668101$1,005.28$854.49 -
Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)
Item #: 10615877$123.60$105.06 -
Pouring Spout for MVE LAB 5, LAB 10 & LAB 20 Liquid Nitrogen Dewars
Item #: 9720729$276.04$234.63 -
Transfer Hose for MVE LN2 Systems (4′ x 1/2″ Dia.)
Item #: 9713159$232.78$197.86 -
Transfer Hose with Small Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044143$149.35$126.95 -
Large Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/8″ x 4″)
Item #: 10615869$237.93$202.24 -
Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)
Item #: 9713109$310.03$263.53 -
Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)
Item #: 10615885$69.01$58.66 -
Transfer Hose with Medium Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044151$192.61$163.72 -
Short Liquid Measuring Stick (24″)
Item #: 5613469$12.36$10.51 -

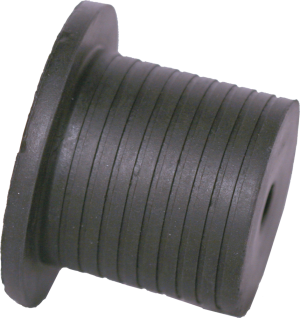

Spare Rubber Plug for Pour Spout for MVE LAB 10 & LAB 20 Cryogenic Dewar
Item #: 4710067$109.18$92.80 -

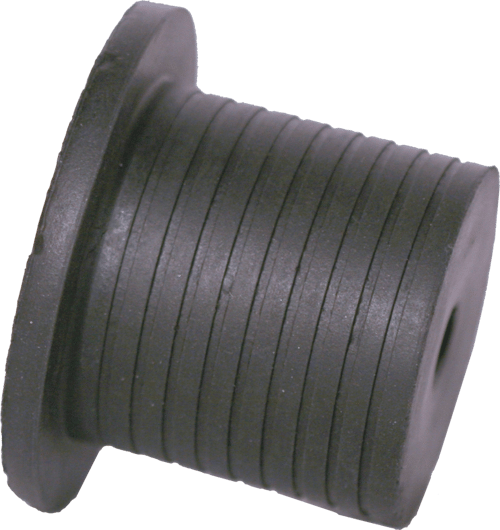

Spare Rubber Plug for Discharge Device and Pouring Spout for MVE LAB 5, LAB 10 & LAB 20 Liquid Nitrogen Systems
Item #: 4710807$109.18$92.80 -
Phase Separator with Rigid Discharge Device Nozzle for MVE LN2 Systems
Item #: 11734421$211.15$179.48 -
Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)
Item #: 10615885$69.01$58.66 -

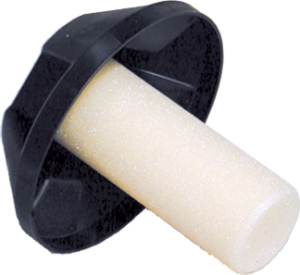

Replaceable Neck Cork for MVE LAB 5, LAB 10 & LAB 20 Liquid Nitrogen Systems (Dewar Neck Opening Diameter: 2.18″)
Item #: 13808658$117.42$99.81 -
Swivel Dipper for Liquid Nitrogen Dewars | MVE LAB 5, LAB 10, LAB 20, LAB 30 & LAB 50
Item #: 20593015$289.43$246.02 -

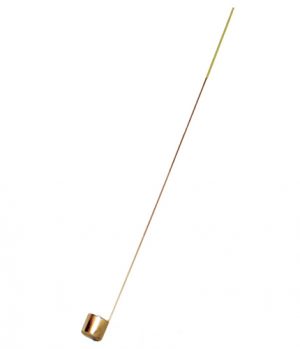

Rigid Dipper for MVE LAB 10 Liquid Nitrogen System
Item #: 9711589$173.04$147.08
