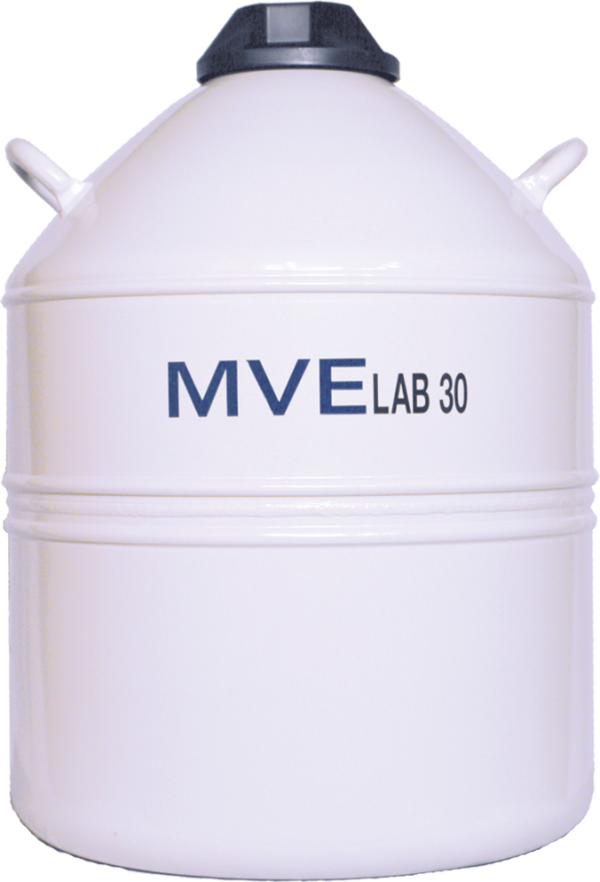

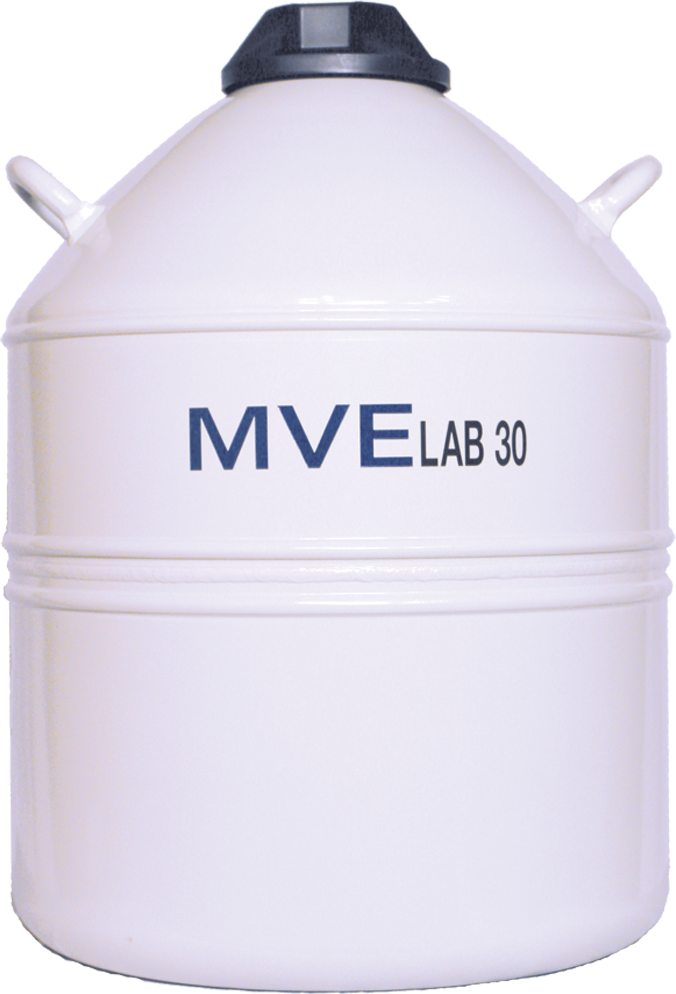

MVE LAB 30 Aluminum Cryogenic Dewar (Capacity: 30L)
Item#: 9918099The MVE LAB Series cryogenic LN2 dewars get their name from their acceptance in laboratories and medical facilities worldwide. These high-efficiency, super insulated dewars are the most convenient, economical way to store and dispense liquid nitrogen. Many lab units can be fitted with pouring spouts, pressurized dispensing devices or dipper to aid in the transfer of liquid nitrogen.
$1,450.00 $1,232.50
-
Performance
-
LN2 Capacity L: 30
-
Static Evaporation Rate* L/day: 0.22
-
-
Unit: Dimensions
-
Neck Opening in. (mm): 2.50 (64)
-
Usable Height in. (mm): 14.9 (378)
-
Overall Height in. (mm): 24.0 (610)
-
Outer Diameter in. (mm): 17.0 (432)
-
Internal Diameter in. (mm): 14.0 (356)
-
Weight Empty lb. (kg): 25 (11.4)
-
Weight Full lb. (kg): 82 (37.2)
-
- Designed for large capacity storage
- Low liquid nitrogen consumption
- Convenient lightweight package
- Durable, tamper-proof lid design
- High strength neck tub reduces liquid nitrogen loss
- Strong light weight aluminum construction
- Advanced chemical vacuum retention system
-
Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)
Item #: 10615877$120.00$102.00 -
Roller Base for MVE XC 21/6, XC 34/18, XC 34/18 Plus, XC 33/22, XC 32/8, SC 36/32, SC 33/26, LAB 30 & LAB 50 Liquid Nitrogen Systems
Item #: 10937403$415.00$352.75 -

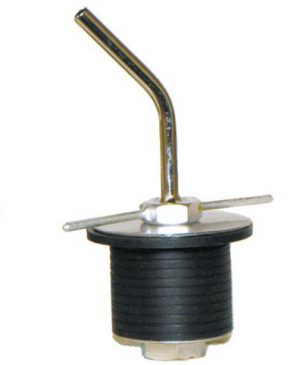

Pouring Spout for MVE LAB 30 & LAB 50 Liquid Nitrogen Systems
Item #: 9711929$268.00$227.80 -
Phase Separator with Rigid Discharge Device Nozzle for MVE LN2 Systems
Item #: 11734421$205.00$174.25 -

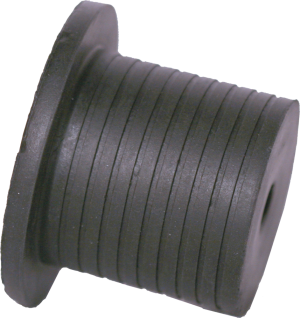

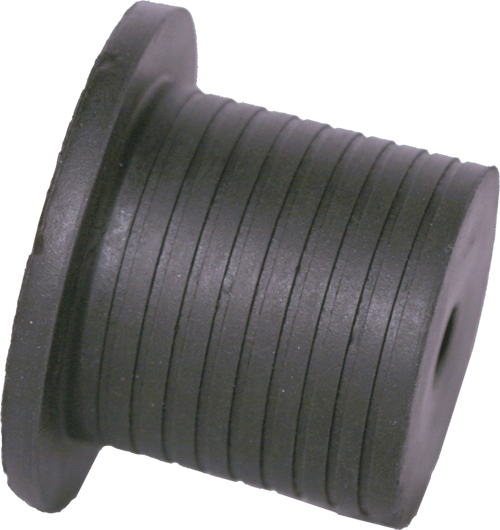

Spare Rubber Plug for MVE LAB 30 & LAB 50 Liquid Nitrogen Systems
Item #: 4710147$100.00$85.00 -
Large Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/8″ x 4″)
Item #: 10615869$236.00$200.60 -
Swivel Dipper for Liquid Nitrogen Dewars | MVE LAB 5, LAB 10, LAB 20, LAB 30 & LAB 50
Item #: 20593015$281.00$238.85 -

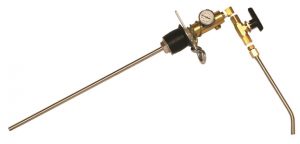

Manual Discharge Device for MVE LAB 30 Liquid Nitrogen System
Item #: 10668004$971.00$825.35 -

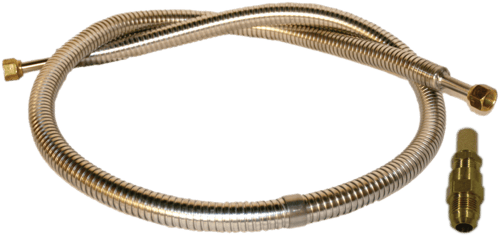

Transfer Hose with Small Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044143$145.00$123.25 -

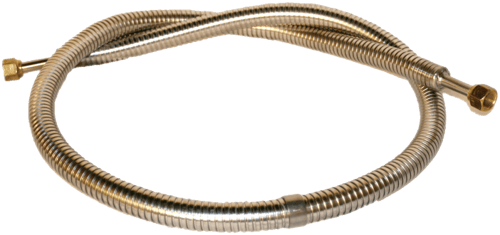

Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)
Item #: 9713109$301.00$255.85 -
Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)
Item #: 10615885$67.00$56.95 -
Transfer Hose with Medium Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044151$187.00$158.95 -
Replaceable Neck Cork for MVE LAB 30 and 50 Cryogenic Dewars (Dewar Neck Opening Diameter: 2.5″)
Item #: 13808666$114.00$96.90 -
Transfer Hose for MVE LN2 Systems (4′ x 1/2″ Dia.)
Item #: 9713159$226.00$192.10 -

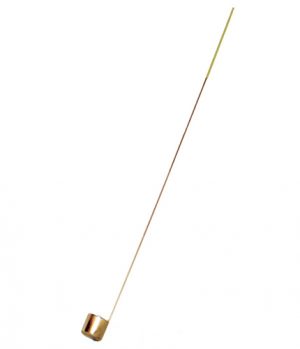

Rigid Dipper for MVE LAB 20 & LAB 30 Liquid Nitrogen Systems
Item #: 9711619$168.00$142.80 -

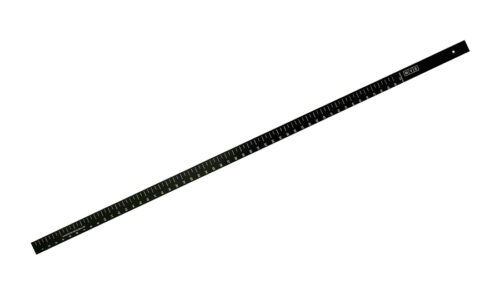

47″ Long Liquid Measuring Stick for Liquid Nitrogen
