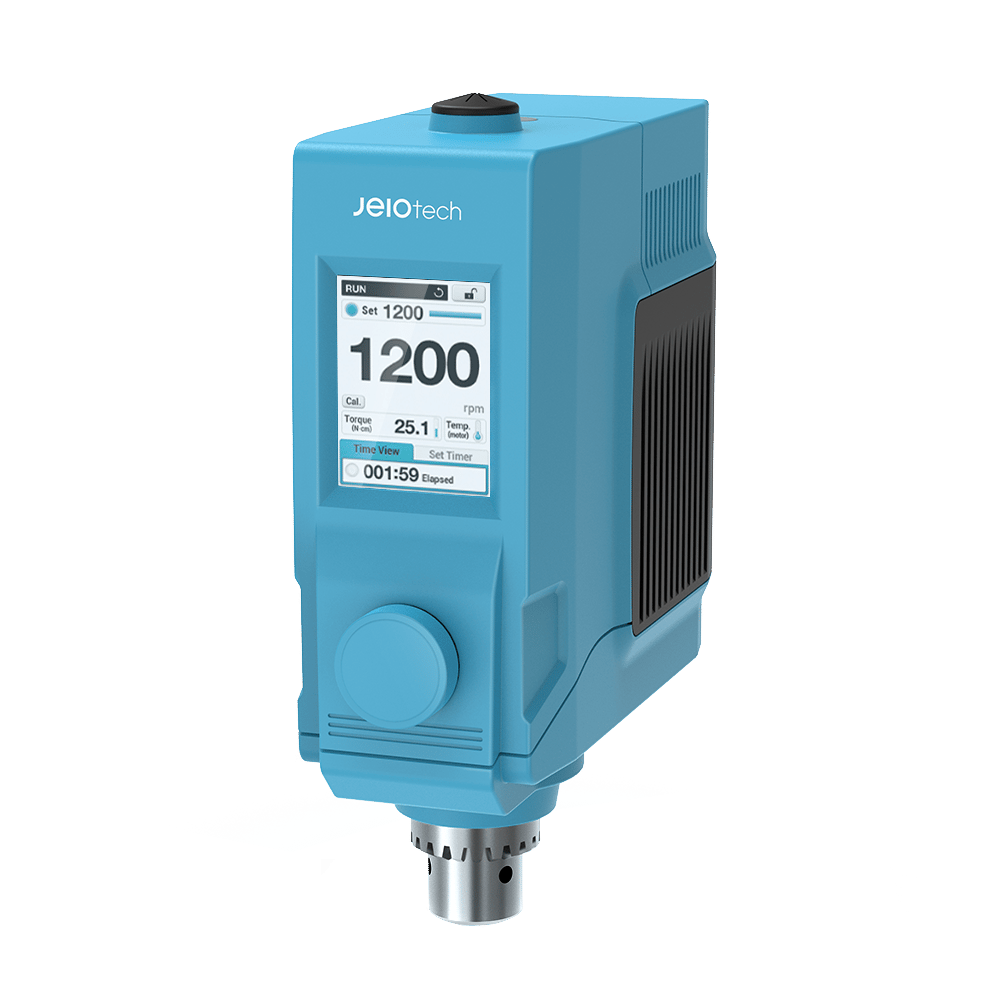

Jeio Tech MSH-0520 Mechanical Overhead Stirrer (LCD, digital) | 120V
Item#: AAH371515UThe Jeio Tech MSH-0520 Mechanical Overhead Stirrer is a high performance stirrer with a speed range of 50 to 2,000 rpm and features a color LCD digital interface. This overhead stirrer comes with a specialized external controller and PC control for remote operation.
$1,232.00 $1,133.00
- Speed range (rpm): 50 to 2000
- Viscosity, max. (cP) 1):
- 5000 (~2000rpm)
- 10000 (~1200rpm)
- 30000 (~ 300rpm)
- 50000 (~ 200rpm)
- Stirring capacity (H2O), max. (L / cu ft): 60 (~2000rpm)
- Rated torque (N,cm / inch): 20.8 / 8.19
- Motor input / output (W): 71 / 48
- Speed control: PID feedback control
- Material
- Body: Powder coated aluminum
- Cover: Polypropylene
- Motor type: BLDC (Brushless Direct Current)
- Dimension
- Chuck range (Ø, mm / inch): 3~10 / 0.12~0.39
- Exterior (W x L x H) (mm / inch): 80 x 185 x 235 / 3.15 x 7.28 x 9.25
- Net weight (kg / lbs): 3.1 / 6.83
- Electrical requirements: AC 100 to 240V, 50/60Hz with power adapter
- Power consumption (W): 1.5A
- Voltage: 100-240
- Hertz: 50/60
- Phase: 1P
- Plug Type: Type B l NEMA 5
Structural Functional Features
- Possible for user to select clockwise (CW) / counter clock wise. (CCW)
- Slim & compact design.
- Convenient adjustment of height with pass-through impeller shaft.
- Chuck with excellent corrosion resistance. (Max Ø10 mm)
- 2 models provided according to torque and rpm.
Use Convenience Features
- Best effort function to maintain maximum set rpm by monitoring sample viscosity changes in real time. (application 10-2014-0124899)
- Accurate stirring with PID feedback control.
- Count-down timer provided. (up to 99 hours and 59 minutes)
- Operating elapsed time display function.
- Machine operation and data management with USB connection.
- Complete with accessories such as impeller, stand, clamp, etc.
Outstanding Safety
- Safety ensured by BLDC motor that does not generate sparks.
- Excellent heat dissipation structure makes use for a long time without any trouble.
- Continual use in safe by over temperature and overload protection.
- Malfunction prevented by controller lock function.
- Prevents sample run-off by smooth stirring start and stop function.
- Motor protection by displaying motor temperature in three colors.
Specialized External Controller
- When harmful fumes are generated through stirring, the reaction proceeds inside the fume hood and the device is safely controlled by external controller at outside.
- Checking control status in real time and controls start/stop or stirring speed changes.
- Color LCD display for intuitive and easy control.
Lab Companion’s Bluetooth for Mobile Use
- Connects wirelessly using smartphone or tablet PC with Bluetooth enabled and a mobile app.
- Checking control status in real time and controls start/stop or stirring speed changes.
- Automatic remote notification function in case of device failure during experiment.
Easy and convenient color touch LCD controller
- Intuitive operation with touch LCD controller and control knobs.
- Displays set value, actual value, time, torque, and motor temperature.
PC control and data management with USB connection
- Useful for data management through PC control.
- Dedicated software and USB cable provided as standard.
