Lab Companion OF4-15VW Forced Convection Oven, 5.19 cu. ft. (Programmable Model)

Item#: AAH12846U

Lab Companion’s programmable mechanical convection oven models feature a LCD controller display with a variety of stored programs for safe and easy usage even for unattended operations.

$3,781.00 $3,591.95

Request a Quote
  • Exterior Dimensions (W x D x H): 28.66" X 27.72" X 35.98"
  • Internal dimension (W x D x H): 21.65" x 14.80" x 27.95"
  • Chamber volume [Cu. Ft.]: 5.19
  • Net Weight: 160.9
  • Temperature:
    • Range (°C/°F): Amb. +10 to 250/Amb. +18 to 482
    • Fluctuation at 100°C (±°C/°F): 0.3/0.54
    • Variation at 100°C (±°C/°F): 1.5/2.7
    • Heating time to 100℃ (min): 15
    • Recovery time at 100℃ (min): 4
  • Shelves (Quantity of shelves (Standard/max.): 2/9
  • Max. Load per shelf (kg/lbs): 30/66.1
  • Control Panel: 5inch TFT Color LCD
  • Communication interface: USB, RS-232, BMS
  • Function:
    • Recently event record: 36ea
    • Fan speed adjustable: Three-step wind speed settings
    • Recommended temperature: Three frequently used temperature settings suggested
    • Graph: Available checking the stored and real-time data as graphs
    • Data Storage: Save the test data in CSV format
    • Temp. ramping rate (℃/min. / ℉/min.): 0-5/0-9
  • Number of Air (change per hour at 100 ℃ 2): 11
  • Electrical: 120V 50/60Hz (230V model available, use part #: AAH12845K)

Wide touch-screen controller that provides the device information intuitively

  • 5-Inch TFT touch controller that enables intuitive control of the device.
  • Real-time graphs that allow users to view events and alarms at a glance so that the test progress can be easily and intuitively monitored.
  • Auto 3 temperature recommendation based on operating history without any recording or storage.
  • Wait on/Wait off timer setting allowing efficient test schedule management.
  • Ramping rates (℃/min) flexibly adjustable for each test performed.

Structural and functional features for improved user convenience

  • Opti-flow™, a function to flexibly adjust the fan speed according to the specimen type and test conditions.

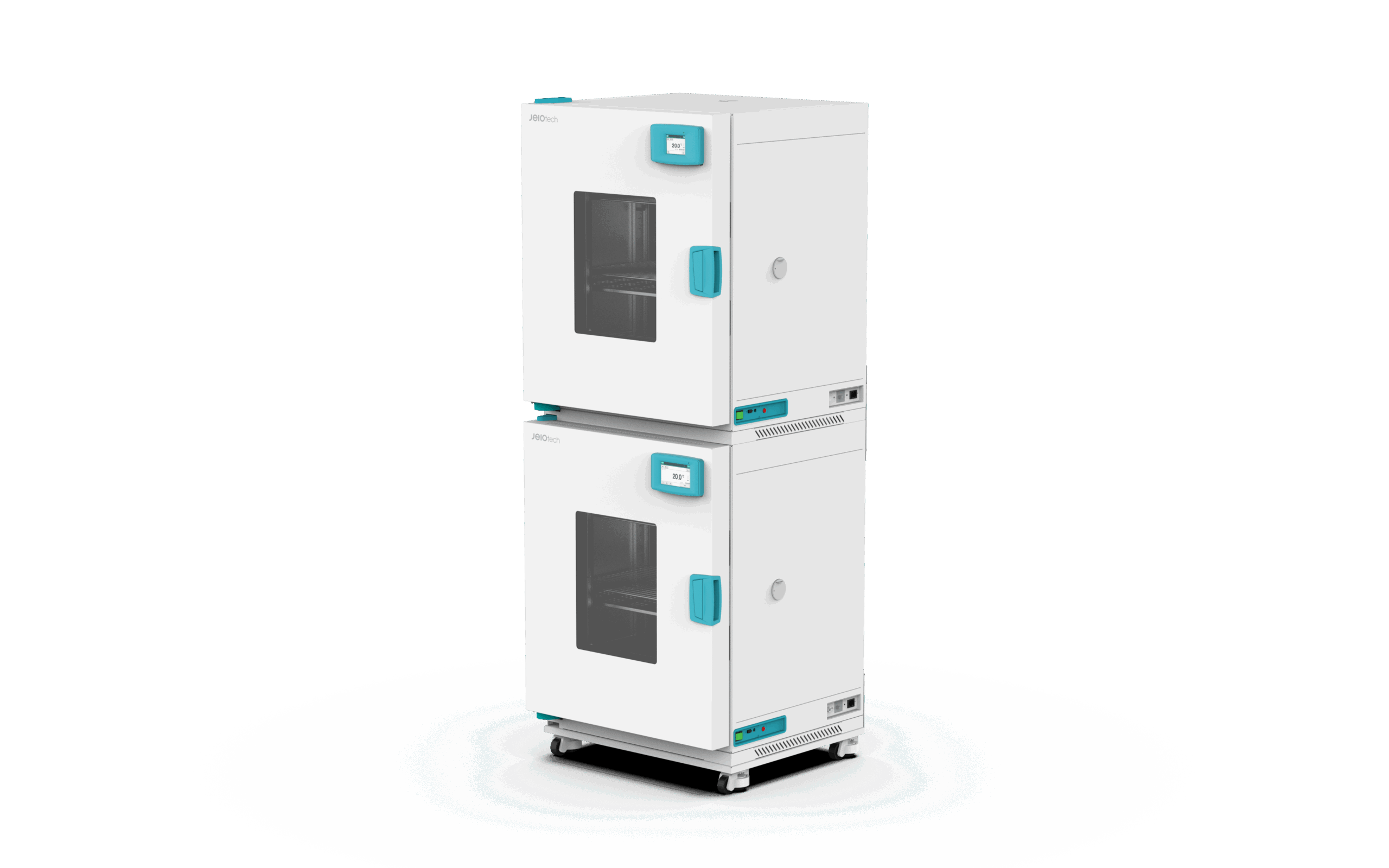

  • Stacking Kit (optional) ensuring the safe fitting of one unit to another, thus doubling the amount of work done in a given area for improved space efficiency.
  • Hands-free™ door system to allow users to easily open the door while carrying samples with both hands.

Real-time monitoring to check status of device

  • BMS communication port that helps monitor the device temperature on the building management system, enabling quick response in case of abnormality. (option)
  • Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (option)

Convenient checking for the test progress and data

  • RS-232/USB port and compatible software provided to enable easy device control and data management using PC.
  • Test data is automatically saved and easily downloaded via USB; easy to edit and use. (in CSV format)
  • 36 latest events, such as errors and door opened or closed, automatically recorded, helping user obtain feedback on experimental results.

Reliable temperature control performance based on stable control mechanisms

  • Wide temperature range of up to 250℃.
  • Three-point temperature calibration that ensures high temperature accuracy over a wide temperature range.
  • Ramping rates (℃/min) flexibly adjustable for each test performed.
  • Excellent temperature distribution through the formation of optimal airflow for uniform heat transfer. (±1.9℃ or below at 100℃)

Jeio Tech Ovens Brochure

Download

Lab Companion OF4-V Forced Convection Oven User Manual

Download
