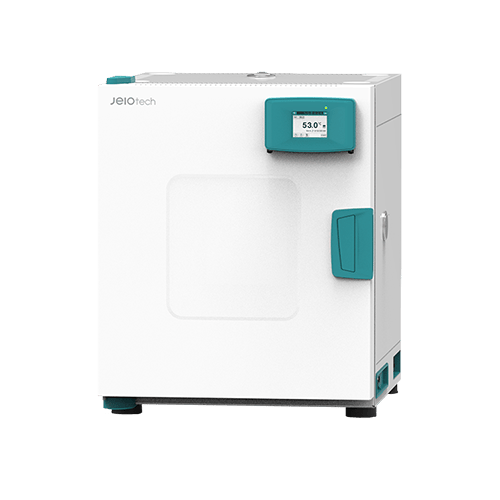

JeioTech ON4-05S Standard Natural Convection Oven | 2.04 cu. ft.
Item#: AAH15066UThe JeioTech ON4-05S standard natural convection oven provides reliable heating up to 250°C with optimized airflow for uniform temperature distribution and consistent laboratory results. A 5-inch touchscreen controller offers intuitive operation with wait-on/wait-off timer functions, while optional connectivity supports PC data management, BMS monitoring, mobile control, and 21 CFR Part 11 compliant documentation. Designed for safe and efficient operation, it features advanced overtemperature protection, event logging, a hands-free door, and optional double stacking for improved laboratory space utilization.
$2,218.00 $2,041.00
- Chamber volume (L / cu ft): 58 / 2.05
- Temperature Range (℃ / ℉): Amb. +15 to 250/ Amb. +59 to 482
- Temperature Fluctuation at 100℃ (±℃ / ℉): 0.5 / 0.90
- Temperature Variation at 100℃ (±℃ / ℉): 2.6 / 4.68
- Temperature Heating time to 100℃ (min.): 39
- Temperature Recovery time at 100℃ (min.): 19
- Control Panel: 3.5 inch TFT Color LCD
- Communication Interface: USB-B, RS-232 (option)
- Function: Recently event record: 12 ea
- Exterior Dimensions (W x D x H, mm / inch): 558 x 648 x 684 / 21.97 x 25.5 x 26.93
- Interior Dimensions(W x D x H, mm / inch): 340 x 390 x 422 / 13.4 x 15.35 x 16.61
- Net Weight (kg/lbs): 53 / 116.8
- Shelves: 2 standard/ 5 max
- Max load per shelf: 20kg/ 44.09lbs
- Number of air change per hour at 100℃: 16
- Electrical Requirements (120V, 60Hz, A): 6.7

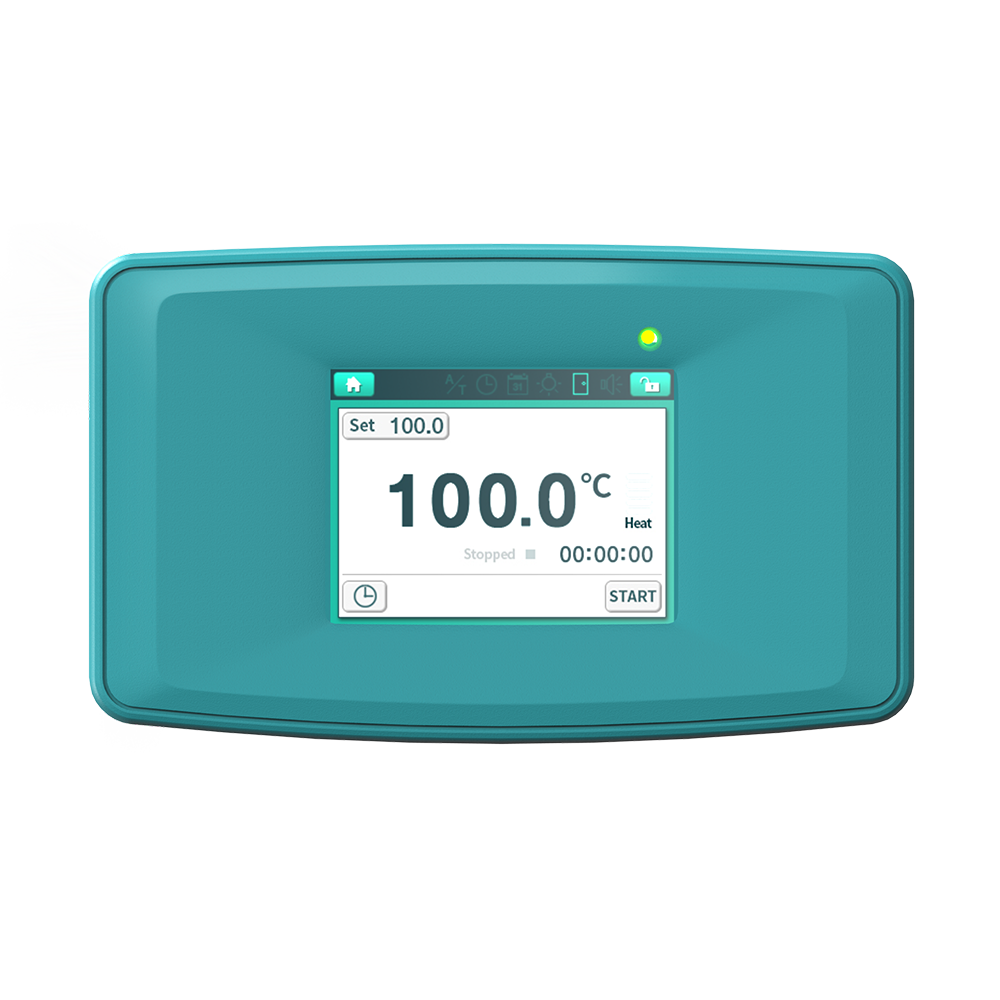

Intuitive Large Touch Controller
- Intuitive interface with 5-inch display.
- 'Wait on / Wait off' timer function.
Reliable Temperature Control Performance
- Wide temperature range of up to 250℃.
- Temperature accuracy for wide range by 3-point calibration.
- The upper and lower temperature limits can be set, enabling alerts for deviations to trigger quick actions.
- Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±3.6 ℃ at 100℃)
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC. (option)
- Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)
Ensuring User Safety
- Effectively removes fumes from the inside of the chamber via the top vent hole. (ON4-03)
- Safe surface even when operating at max temperatures. (less than 70℃ at 250℃)
- Implemented with the top-rated overheating prevention system. (Patent 10-0397583)
- Over Temperature Limiter.
- Complaint to IEC Class II protection standards and temperature protection in line with DIN 12880 Class 3.1.
Convenient Structural Functions
- Logs the last 12 events, including run times, stops, and errors.
- Double stackable with stacking set (option) maximizes space utilization.
- Hands-free™ door allows both hands free while holding samples.
