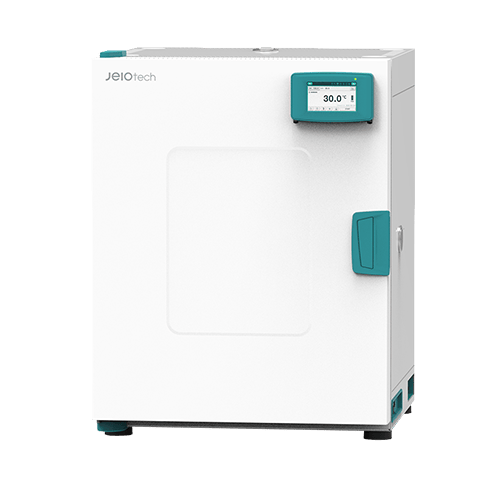

JeioTech ON4-10V Advanced Natural Convection Oven | 3.88 cu. ft.
Item#: AAH111126UThe JeioTech ON4-V Advanced Natural Convection Ovens deliver precise and reliable temperature control up to 250°C, with uniform distribution (±3.6°C at 100°C) via multi-path airflow for consistent experimental results. These ovens feature an intuitive 5-inch touch controller that offers real-time monitoring, graphing, and quick temperature suggestions. Compact (under 750mm depth) for lab table stability, it supports real-time monitoring via BMS or LC GreenBox (optional) and ensures effortless data management with RS-232/USB connectivity and 21 CFR Part 11 compliance (optional). Features like Ramp Control™ and event logging enhance reliability and compliance, making it ideal for GMP-regulated labs.
$2,998.00 $2,848.10
- Chamber volume (L / cu ft): 110 / 3.88
- Temperature Range (℃ / ℉): Amb. +15 to 250/ Amb. +59 to 482
- Temperature Fluctuation at 100℃ (±℃ / ℉): 0.5 / 0.90
- Temperature Variation at 100℃ (±℃ / ℉): 3.6 / 6.48
- Temperature Heating time to 100℃ (min.): 22
- Temperature Recovery time at 100℃ (min.): 10
- Control Panel: 3.5 inch TFT Color LCD
- Communication Interface: USB-B, RS-232 (option)
- Function:
- Recently event record: 36 ea
- Recommended Temperature: Suggest three frequently used temperature
- Graph: Available viewing stored and real-time graphs
- Data Storage: Save your experiment data (in CSV format)
- Temp. ramping rate (℃/min. | ℉/min): 0 to 4.4 | 0 to 7.92
- Exterior Dimensions (W x D x H, mm / inch): 663 x 677 x 859 / 26.1 x 26.65 x 33.82
- Interior Dimensions(W x D x H, mm / inch): 441 x 420 x 597 / 17.36 x 16.54 x 23.5
- Net Weight (kg/lbs): 63 / 138.9
- Shelves: 2 standard/ 8 max
- Max load per shelf: 20kg/ 44.09lbs
- Number of air change per hour at 100℃: 16
- Electrical Requirements (120V, 60Hz, A): 10.9
Intuitive Large Touch Controller
- Intuitive interface with 5-inch display.
- Events and alerts in a single view with real-time graph.
- Three frequent temperatures automatically suggested.
- 'Wait on / Wait off' timer function.
Convenient Structural Functions
- Designed with a depth of less than 750 mm, making it easy and stable on a lab table.
- Uniform and stable temperature distribution with multi-path airflow improves reliability of experiment data.
Supervise Equipment with Real-time Monitoring
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option).
- Monitor and control anywhere, anytime with LC GreenBox (Mobile Monitoring System, option).
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC.
- Test data are automatically stored and easily exported via USB; easy to edit data (in CSV format).
- Logs 36 recent events, including errors, opened door, etc.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option).
Reliable Temperature Control Performance
- Wide temperature range of up to 250℃.
- Temperature accuracy for wide range by 3-point calibration.
- Ramp Control™, function that controls the rate of temperature rise by setting ramping rate(℃/min) per experiment.
- Uniform temperature distribution through airflow optimized for uniform heat transfer (within ±3.6 ℃ at 100℃).
