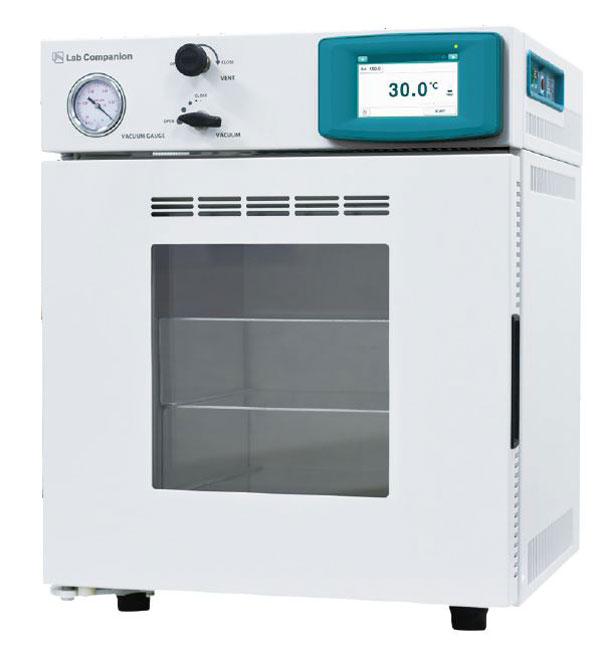

Lab Companion OV4-30 Vacuum Oven | 1 Cu. Ft.

Item#: AAH13316U

$5,668.00 $5,384.60

Request a Quote
  • Chamber volume: 1 Cu. Ft/ 28L
  • Exterior Dimensions (W x H x D): 21.1” x 20.6” x 25.8” (534×522×655mm)
  • Internal dimension (W x H x D): 11.9 x 12” x 11.9” (302×305×302mm)
  • Net weight: 69kg / 152.1 lbs
  • Temperature
    • Range (℃ / ℉): Amb. +15 to 250 / Amb. +27 to 482
    • Fluctuation (±℃ / ℉ at 100℃): 0.1 / 0.18
    • Variation (±℃ / ℉ at 100℃): 1.5 / 2.7
    • Heating time to 100℃ (min.): 60
  • Vacuum gauge range, analog (Mpa): 0 to 0.1
  • Shelves:
    • Quantity of shelves (standard/max.): 2/2
    • Max. Load per shelf (Kg / lbs): 20 / 44.1
  • Electrical requirements (120V, 50 / 60Hz, A): 10.2

Structural Functional Features

  • Wide temperature range that can be controlled up to 250°C.
  • Improved temperature distribution. (±1.5°C at 100°C)
  • 3-point temperature calibration, high temperature accuracy over a wide temperature range.
  • Inner stainless steel and aluminum shelves provide excellent corrosion resistance and clean maintenance.
  • Protects equipment from overcurrent and over temperature through safety circuits.
  • Vacuum line and release line are separated and convenient to use.
  • The display is mounted at the top, minimizing floor size requirement.



Use Convenience Features

  • When a vacuum is formed and maintained, the toughened glass is attached to the gasket, so it is kept confined for long-time repeated use.
  • Save and use 3 frequently used temperatures.
  • PC connection using RS-232 port and USB port.
  • Excellent visibility and viewing angle due to application of 5-inch large LCD.
  • Wait On/Off timer. (up to 999 hours 59 minutes)
  • Toughened glass viewing window for easy internal viewing.
  • Microprocessor PID method for precise temperature control.
  • Automatic restart as it was operated after power recovery.
  • Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
  • Microprocessor PID method for precise temperature control.



Outstanding Safety

  • Door structure including buffer system allows for internal pressure release through upper and lower ventilation holes when stable vacuum is formed/maintained and when there is an internal explosion.
  • Polycarbonate safety cover provided in case of toughened glass breakage.
  • 12 events is recorded in case of door open, error, and etc.
  • Top-rated overheating protection system. (registration 10 - 0397583)
  • Over temperature limit function.
  • Safe product surface, even when operated at upper temperature.
  • Malfunction prevented by controller lock function.
  • Alarm if set temperature deviation outside of acceptable range.



Vacuum Oven Use Configuration

  • It is recommended to use the cold trap bath on the vacuum line to protect the weak vacuum pump against water/solvent or to supply dry air to the sample.
