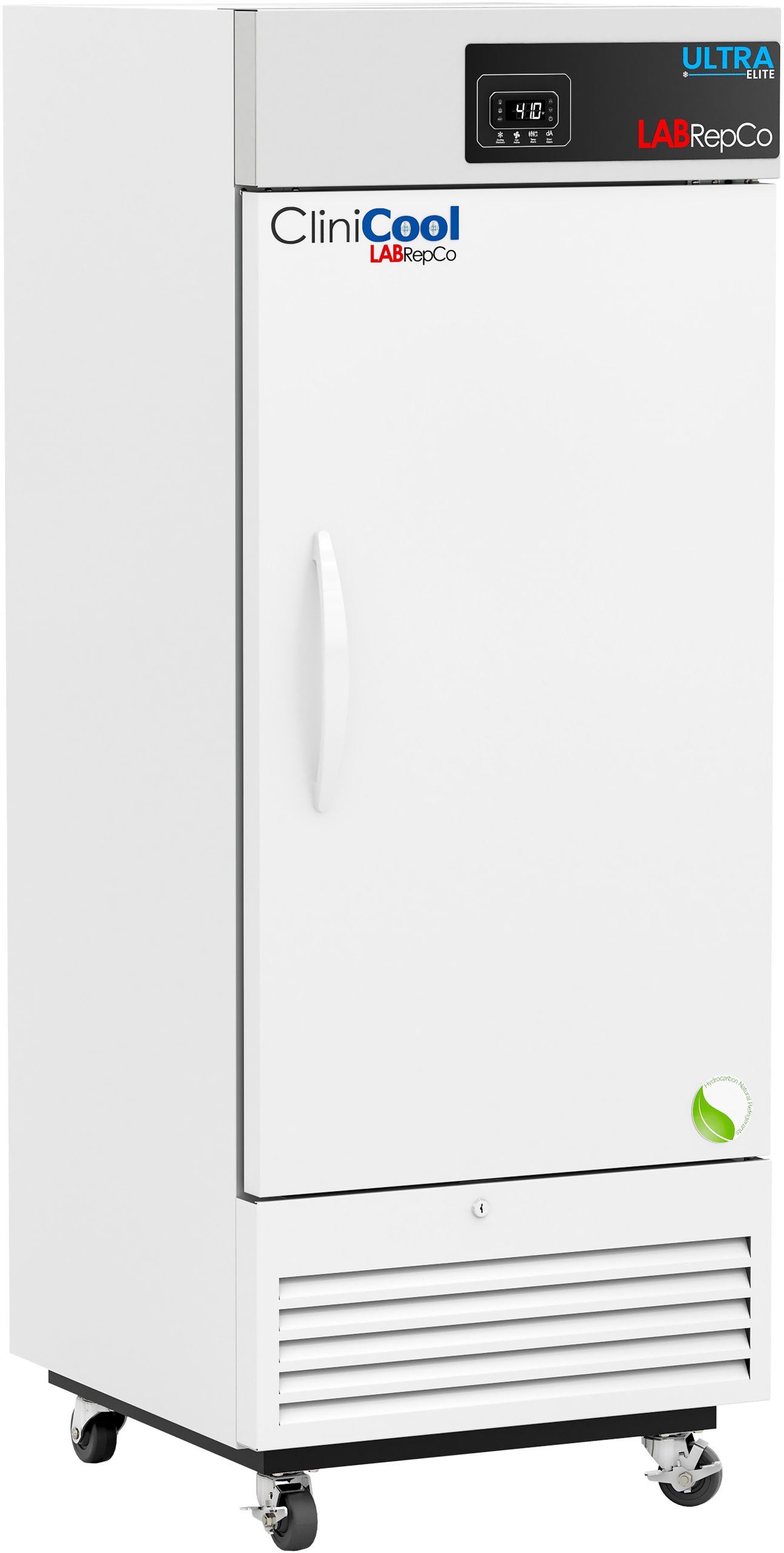

LabRepCo CliniCool© Ultra Elite Series 12 Cu. Ft. Pharmacy Refrigerator | Solid Door
Item#: LHEV-12-SD-PHThe LabRepCo CliniCool© Ultra Elite 12 Cu. Ft. Pharmacy Refrigerator is designed for secure pharmaceutical and vaccine storage with precise microprocessor temperature control and variable speed compressor technology for improved efficiency and stability within the 2°C to 8°C range. Forced draft air circulation with patented airflow technology helps maintain consistent cabinet temperatures, while ENERGY STAR v2.0 compliance and natural R600a refrigerant support energy efficient operation. Built for clinical environments, this unit features a self closing solid door with keyed access, safety shielded LED lighting, adjustable shelving, and comprehensive audible and visual alarms with remote alarm contacts. Durable powder coated construction, reliable performance, and a two year parts and labor warranty with a seven year compressor warranty make the Ultra Elite series a dependable refrigeration solution for pharmacies, laboratories, and healthcare facilities.
View the previous version of this model, still available for purchase: LHE-12-SD-PH
$6,460.00 $4,974.20
- Cu. Ft.: 12
- Door(s): One (1) swing solid door, self-closing, right hinged, not reversible, magnetic door gasket
- Exterior Dimensions: 25” W x 29” D x 66” H with casters
- Interior Dimensions: 20.375"W x 20.25"D x 36"H
- Shelves: Five (5) adjustable shelves (adjustable in ½” increments)
- Mounting and Installation: Swivel casters - locking front casters
- Interior lighting: LED interior lights are safety shielded and switch controlled
- Airflow Management: Forced draft air circulation, patented air flow technology
- External probe access: 3/4" probe access port on rear wall
- Insulation: Cabinet is foamed-in-place with EPA compliant high-density urethane foam
- Exterior materials: White powder coated steel
- Access control: Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
- General warranty: Two (2) year parts and labor warranty
- Compressor warranty: Seven (7) year compressor warranty
- Product Weight (lbs): 187
- Shipping Weight (lbs): 227
- Rated Amperage: 2 Amps
- Power Plug/Power Cord: NEMA 5-15 plug
- Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators.
- Maximum temperature variation (Cabinet air): +/- 1.5° C
- Stability (Simulator ballast): +/- 0.3° C
- Adjustable Temperature Range: 36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
- Stability (Simulator bag): Non-applicable
- Energy Consumption (KWh/day): <0.9 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
- Average Heat Rejection (BTU/hr): <250 BTU/h
- Noise Pressure Level (dBA): 40 dBA or less installed
- Pull down time to nominal operating temp: < 30 min (empty)
Performance Note: Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient
conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
- Condenser: Tube and grid, high efficiency fan forced air
- Evaporator: Fin and tube, high efficiency fan forced air
- Defrost: Cycle Defrost
- Controller technology: Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
- Battery Backup: For controller temperature display and alarms only, no cooling active
- Display Technology: Digital temperature display
- Display probe: Product simulator bottle with glass bead media
- Data Transfer: Non-applicable
- External alarm connection: Remote alarm contacts
- Alarms: Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
- Display Probe: Product simulator bottle with glass bead media
- Included Accessories: Pharmacy refrigerator/freezer toolkit
Disclaimers: Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
