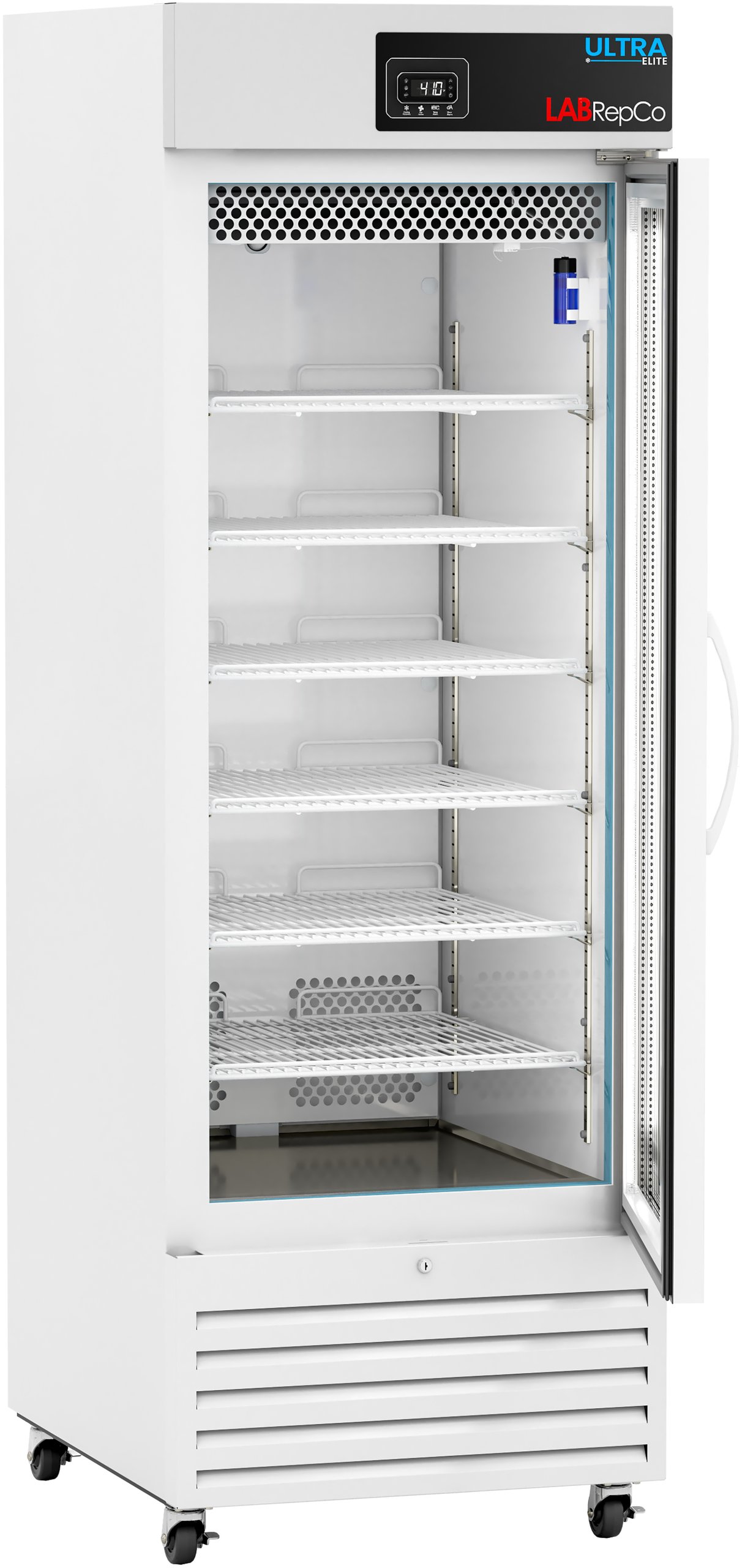

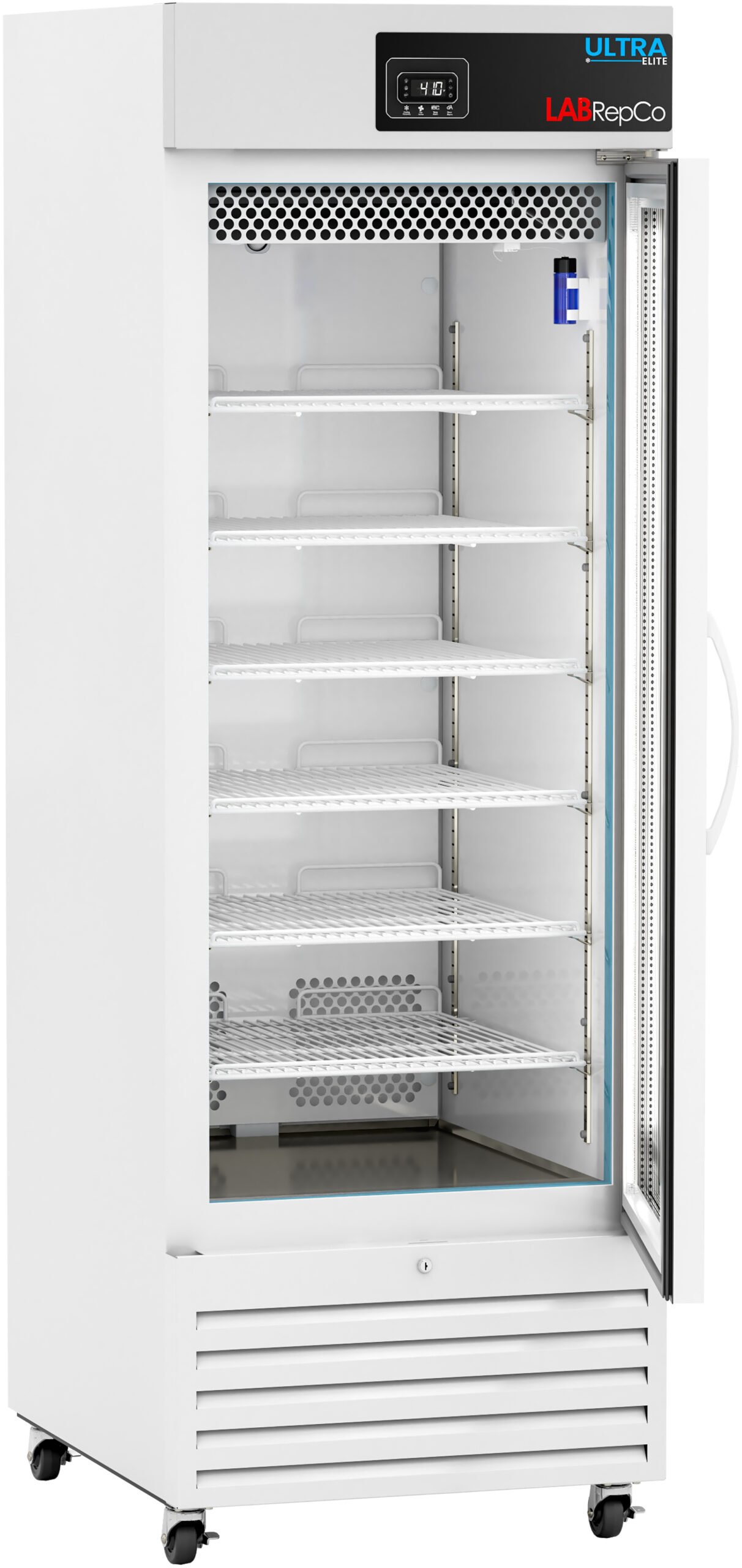

LabRepCo CliniCool© Ultra Elite Series 23 Cu. Ft. Pharmacy Refrigerator | Glass Door
Item#: LHEV-23-HG-PHThe LabRepCo CliniCool© LHEV-23-HG-PH Ultra Elite Series pharmacy refrigerator is a 23 cu. ft. glass door unit designed for safe and compliant storage of vaccines, pharmaceuticals, and temperature-sensitive medications in clinical and healthcare environments. The system integrates variable speed compressor technology with a microprocessor temperature controller to maintain precise 2°C to 8°C conditions required for pharmacy applications. Advanced forced air circulation ensures uniform temperature distribution while minimizing fluctuations that could compromise product integrity. The self-closing glass door, enhanced shelving capacity, and LED lighting provide clear visibility and efficient organization for high-demand pharmacy workflows. Built with comprehensive alarm monitoring and access control features, this unit supports secure and reliable medication storage.
View the previous version of this model, still available for purchase: LHE-23-HG-PH
$8,238.00 $6,343.26
- Cu. Ft.: 23
- Door(s): One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
- Exterior Dimensions: 26.875” W x 35.125” D x 81.75” H with casters
- Interior Dimensions: 21.75"W x 25.125"D x 50"H
- Shelves: Six (6) adjustable shelves (adjustable in ½” increments)
- Mounting and Installation: Swivel casters - locking front casters
- Interior lighting: LED interior lights are safety shielded and switch controlled
- Airflow Management: Forced draft air circulation, patented air flow technology
- External probe access: 3/4" probe access port on rear wall
- Insulation: Cabinet is foamed-in-place with EPA compliant high-density urethane foam
- Exterior materials: White powder coated steel
- Access control: Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
- General warranty: Two (2) year parts and labor warranty
- Compressor warranty: Seven (7) year compressor warranty
- Product Weight (lbs): 274
- Shipping Weight (lbs): 327
- Rated Amperage: 3 Amps
- Power Plug/Power Cord: NEMA 5-15 plug
- Facility Electrical Requirement: 110-120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators.
- Maximum temperature variation (Cabinet air): +/- 1.5° C
- Stability (Simulator ballast): +/- 0.3° C
- Adjustable Temperature Range: 36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
- Stability (Simulator bag): Non-applicable
- Energy Consumption (KWh/day): <1.2 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
- Average Heat Rejection (BTU/hr): <320 BTU/h
- Noise Pressure Level (dBA): 40 dBA or less installed
- Pull down time to nominal operating temp: < 35 min (empty)
Performance Note: Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
- ENERGY Star Certified
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
- Condenser: Tube and grid, high efficiency fan forced air
- Evaporator: Fin and tube, high efficiency fan forced air
- Defrost: Cycle Defrost
- Controller technology: Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
- Battery Backup: For controller temperature display and alarms only, no cooling active
- Display Technology: Digital temperature display
- Display probe: Product simulator bottle with glass bead media
- Data Transfer: Non-applicable
- External alarm connection: Remote alarm contacts
- Alarms: Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
- Included Accessories: Pharmacy refrigerator/freezer toolkit
Disclaimers: Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
