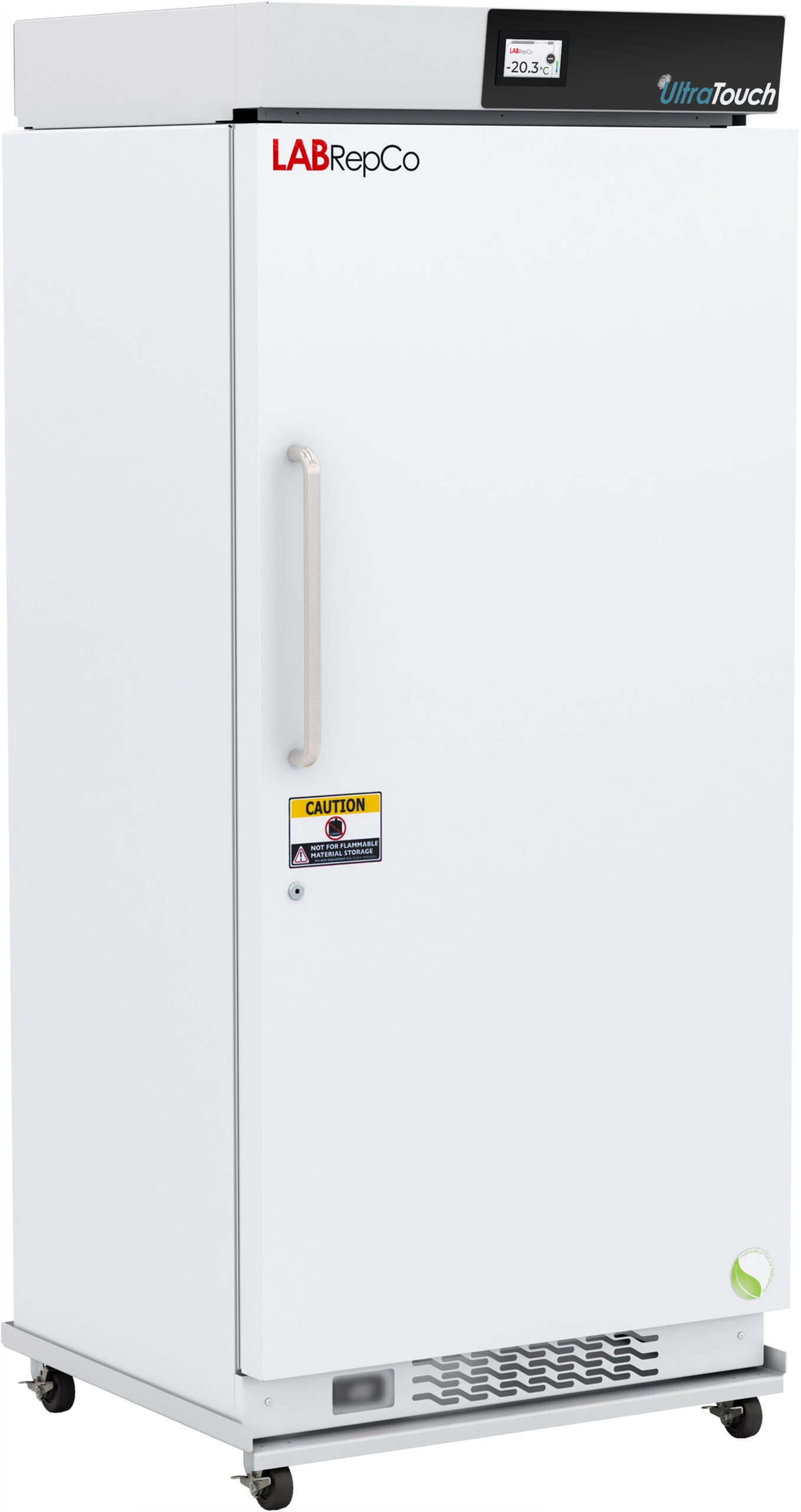

LabRepCo Ultra Touch 30 cu. ft. Laboratory Freezer (-20°C) with Natural Refrigerants | Manual Defrost
Item#: LHCT-30-FMThe LabRepCo Ultra Touch 30 Cu. Ft. Laboratory Freezer delivers dependable -20°C storage with advanced monitoring and environmental responsibility built in. Powered by a variable speed hermetic compressor and microprocessor controller, this unit maintains stable temperatures between -15°C and -25°C while utilizing EPA SNAP compliant R290 refrigerant for efficient cooling. The integrated touchscreen provides a 24 hour temperature graph, downloadable data logs, real time system display, and fully customizable alarm parameters with remote alarm connectivity and battery backed notifications. Designed for laboratories that demand performance visibility and precise control, this manual defrost freezer offers consistent sample protection supported by intuitive technology and robust alarm safeguards.
$17,020.00 $13,105.40
- Cu. Ft.: 30
- Door(s): One solid swing, right hinged; stainless steel door handle; magnetic door gasket
- Exterior Dimensions: 35.75" W x 35.5" D x 83" H (Door swing 30.5", Total open Depth 66")
- Interior Dimensions: 32" W x 22.5" D x 59.25" H

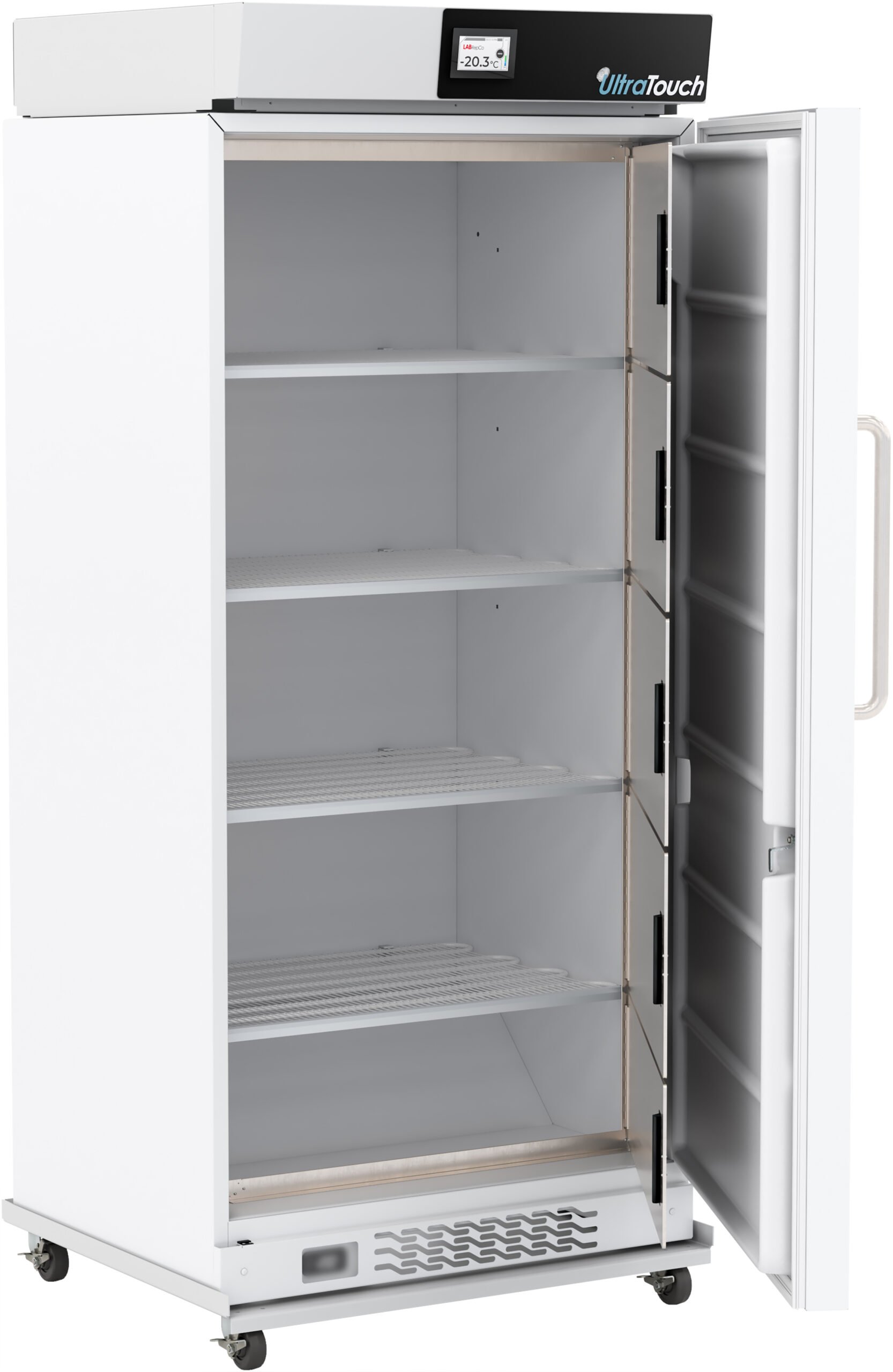

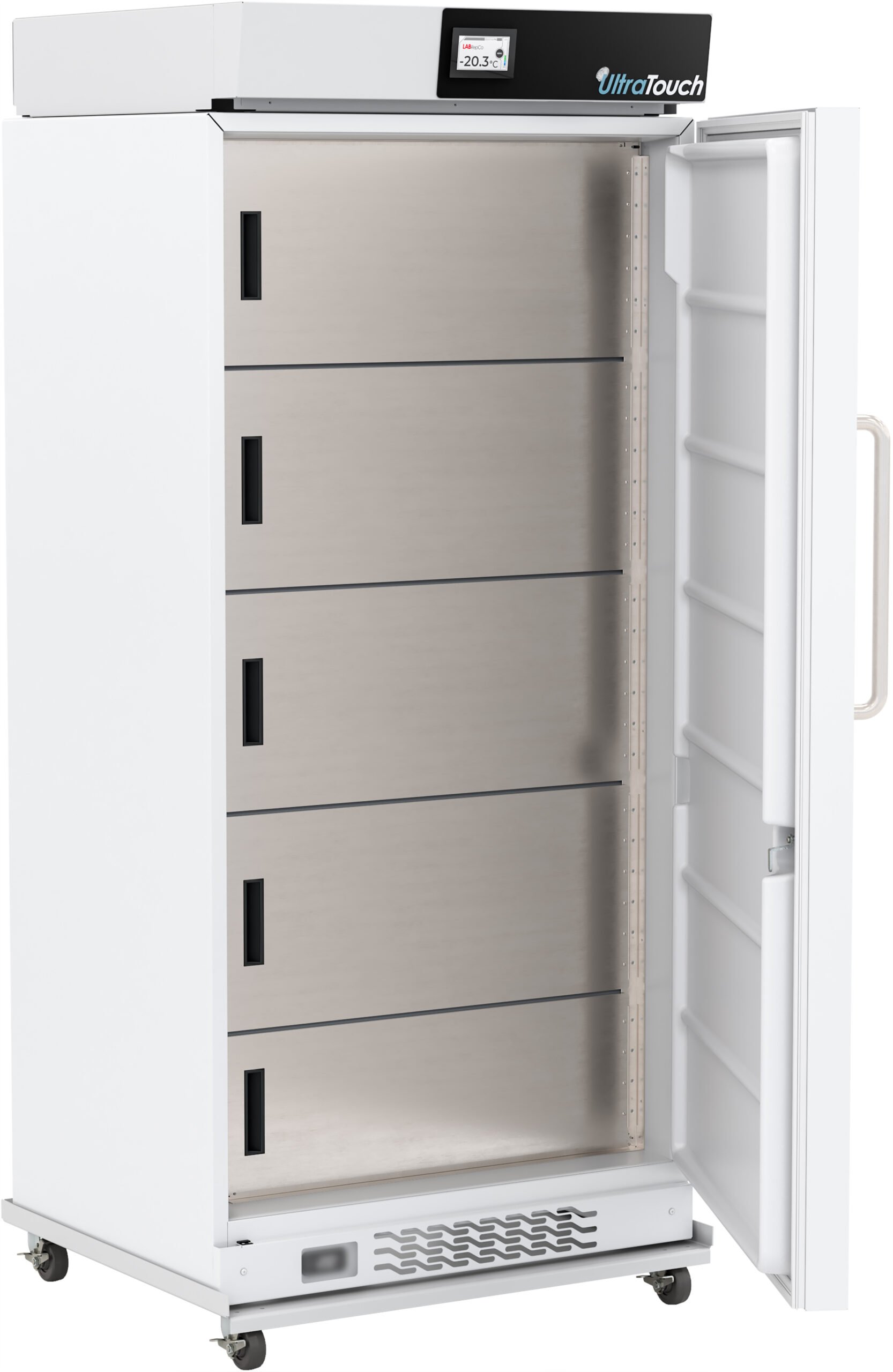

- Interior: Five (5) inner fast-freeze compartments with doors for temperature maintenance
- Shelves: Four (4) fixed evaporator shelves
- Mounting & Installation: Caster platform
- External probe access: 3/4" probe access port on rear wall
- Insulation: EPA compliant high density urethane foam
- Exterior Materials: Powder coated steel
- Access Control: Keyed door lock
- General Warranty: Two (2) year parts and labor warranty
- Compressor Warranty: Five (5) year compressor parts warranty
- Product Weight (lbs): 330
- Shipping Weight (lbs): 360
- Rated Amperage: 3.3 Amps
- Power Plug/Power Cord: NEMA 5-15P plug, 6 ft long cord
- Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard
- Uniformity (Cabinet air): +/- 3°C
- Stability (Cabinet air): +/- 3°C
- Maximum temperature variation (Cabinet air): 7°C Total
- Energy Consumption (KWh/day): 4.9 kWh/day
- Average Heat Rejection (BTU/hr): 690 BTU/hr
- Pull down time to nominal operating temp: 75 min (empty)
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R290 propane
- Condenser: Static - exterior walls of cabinet with auxiliary fan
- Evaporator: Evaporator shelves
- Defrost: Manual Defrost
- Controller technology: Microprocessor temperature controller with variable frequency compressor control
- Battery Backup: Temperature display & alarm only (no active cooling)
- Display Technology: Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24- hour temperature chart, and temperature data logging
- Adjustable Temperature Range: -15°C to -25°C
- External alarm connection: Remote alarm contacts
- Alarms: Audible and visual high and low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, resettable 1-point min/max history, alarm validation (audible, visual, and remote alarm), alarm mute with ring back, and customizable alarm time delay settings
- Display Probe: Product simulator bottle with glass bead media
- Disclaimers:
- Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.
- Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH
- Specifications are subject to change.
- Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead
to temperature maintenance issues, overheating and possible failure. - Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation.
- Performance may vary with environmental conditions, product load, or door openings.
