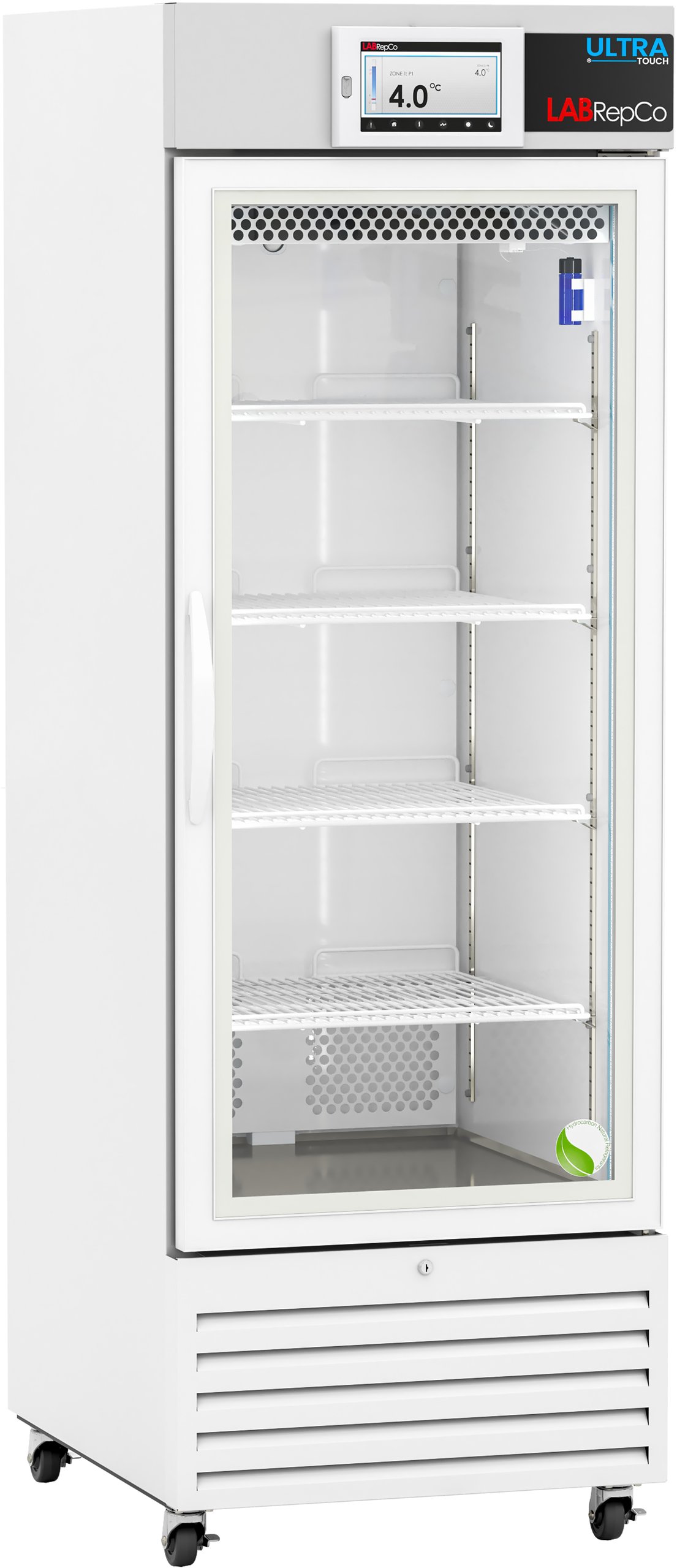

LabRepCo Ultra Touch Series 23 Cu. Ft. Laboratory Refrigerator | Glass Door
Item#: LHTV-23-HGThe LabRepCo LHTV-23-HG Ultra Touch Series laboratory refrigerator is a 23 cu. ft. glass door unit designed for advanced temperature-controlled storage of laboratory samples, reagents, and biological materials in clinical and research environments. The system combines variable speed compressor technology with a microprocessor controller to deliver precise temperature regulation, while an intuitive 8-inch touchscreen interface provides real-time monitoring, data visualization, and multi-level user access with customizable passwords and calibration adjustments. Forced draft air circulation maintains uniform temperature distribution throughout the cabinet, and customizable audible and visual alarms with remote contacts and adjustable delays support proactive monitoring and compliance. Energy-efficient R600a hydrocarbon refrigerant reduces operating costs while supporting a more sustainable laboratory environment. The self-closing glass door, LED interior lighting, and adjustable shelving enhance visibility and workflow efficiency, while battery-backed temperature display and alarm logging ensure continuous monitoring during power interruptions.
$9,100.00 $7,007.00
- Cu. Ft.: 23

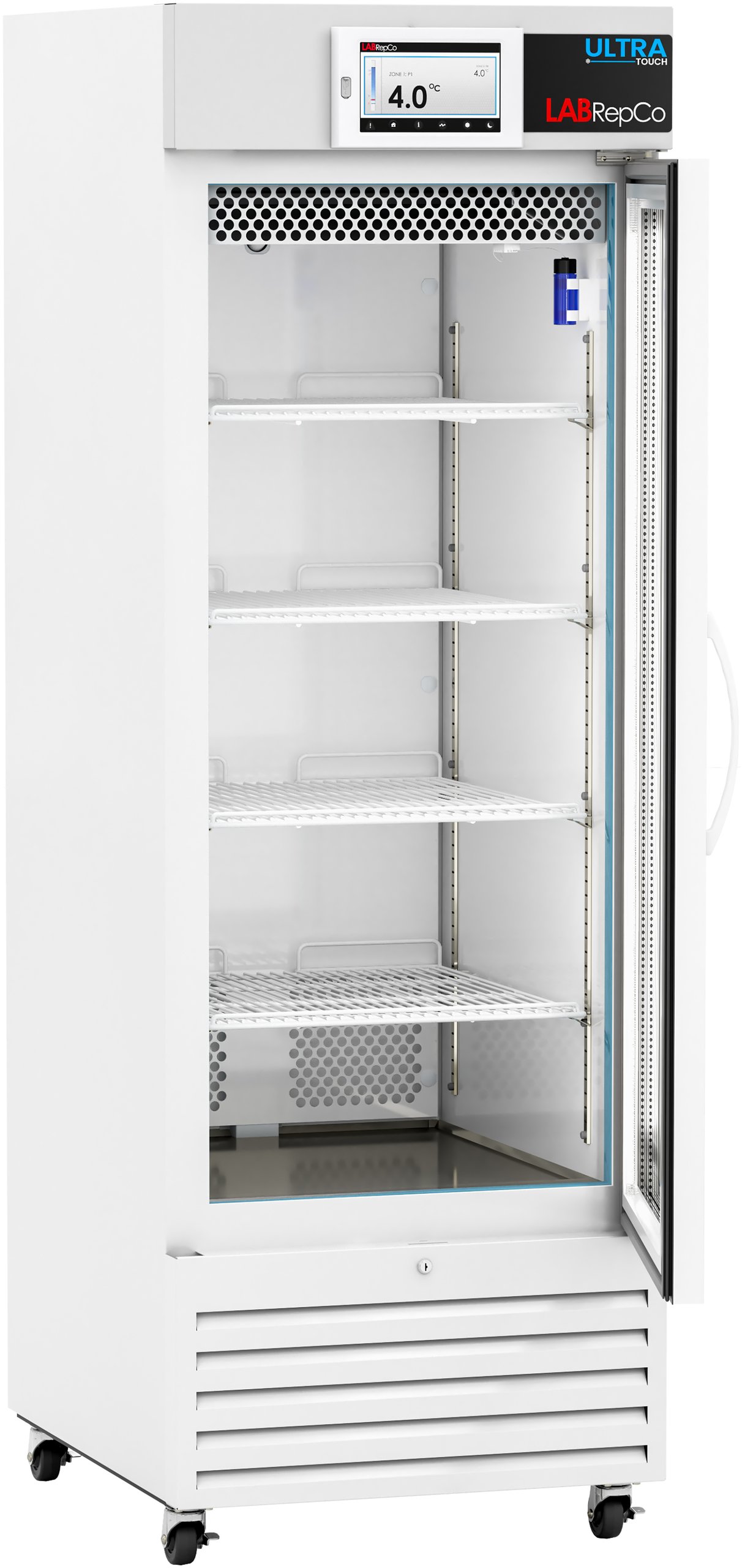

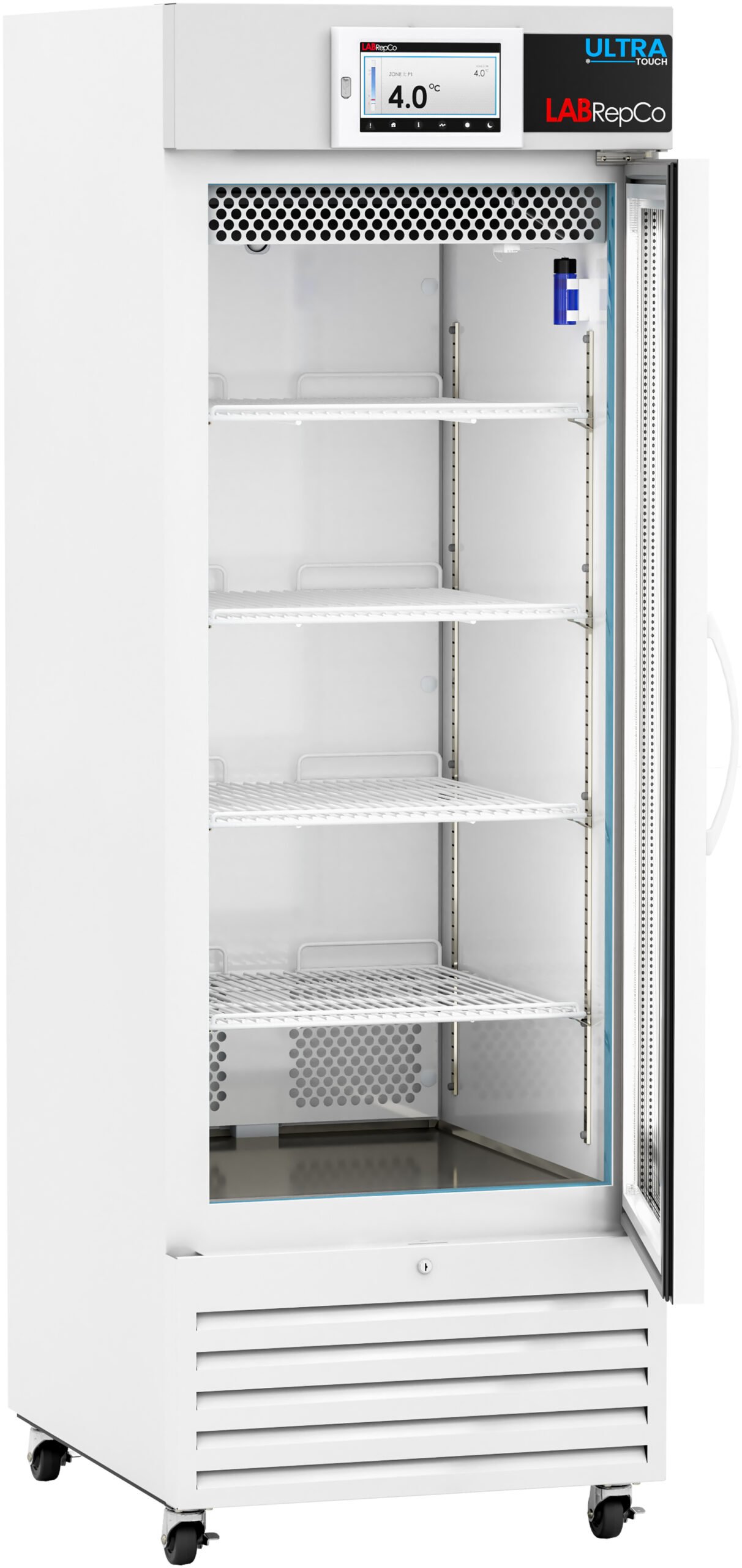

- Door(s): One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
- Exterior Dimensions: 26.75” W x 35.125” D x 81.75” H with casters
- Interior Dimensions: 21.75"W x 25.125"D x 50"H
- Shelves: Four (4) adjustable shelves (adjustable in ½” increments)
- Mounting and Installation: Swivel casters - locking front casters
- Interior lighting: LED interior lights are safety shielded and switch controlled
- Airflow Management: Forced draft air circulation, patented air flow technology
- External probe access: 3/4" probe access port on rear wall
- Insulation: Cabinet is foamed-in-place with EPA compliant high-density urethane foam
- Exterior materials: White powder coated steel
- Access control: Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
- General warranty: Three (3) year parts and labor warranty
- Compressor warranty: Seven (7) year compressor warranty
- Product Weight (lbs): 274
- Shipping Weight (lbs): 327
- Rated Amperage: 3 Amps
- Power Plug/Power Cord: NEMA 5-15 plug
- Facility Electrical Requirement: 110-120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators.
- Maximum temperature variation (Cabinet air): +/- 1° C
- Stability (Simulator ballast): +/- 0.2° C
- Adjustable Temperature Range: 2° C to 15° C
- Stability (Simulator bag): Non-applicable
- Energy Consumption (KWh/day): 1.5 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
- Average Heat Rejection (BTU/hr): 390 BTU/h
- Noise Pressure Level (dBA): 40 dBA or less installed
- Pull down time to nominal operating temp: < 30 min (empty)
Performance Note: Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
- ENERGY Star Certified
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
- Condenser: Tube and grid, high efficiency fan forced air
- Evaporator: Fin and tube, high efficiency fan forced air
- Defrost: Cycle Defrost
- Controller technology: Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
- Battery Backup: High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
- Display Technology: 8" touchscreen featuring: Security and Access: Multi-Level Password Protection: User, Supervisor, and Admin roles for access and control. Advanced Controls: Customizable Passwords/PINs: Ensures tailored access for your team. Calibration adjustments: fine-tune temperature offsets for precise measurements. visual and user interface: intuitive touch screen: pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable display settings: screen brightness, real-time temperature comparison to alarm points.
- Digital Communication: 4-20mA Output
- Data Transfer: Non-applicable
- External alarm connection: Remote alarm contacts
- Alarms: Audible & Visual Alarms: customizable sounds and volumes; silent mode with visual persistence. Alarm delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-back functionality. Audible alarms re-engage after a preset delay if the condition persists.
- Display Probe: Product simulator bottle with glass bead media
Disclaimers: Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
Request a Proposal
Related Products
-
Item #: LHUV-16-HG
$4,426.00$3,408.02 -
Item #: LHEV-16-HG
$7,190.00$5,536.30 -
Item #: LHTV-16-HG
$8,816.00$6,788.32 -
Item #: LHUV-23-HG
$5,392.00$4,151.84 -
Item #: LHEV-23-HG
$7,782.00$5,992.14 -
Item #: LHEV-26-HG
$7,696.00$5,925.92 -

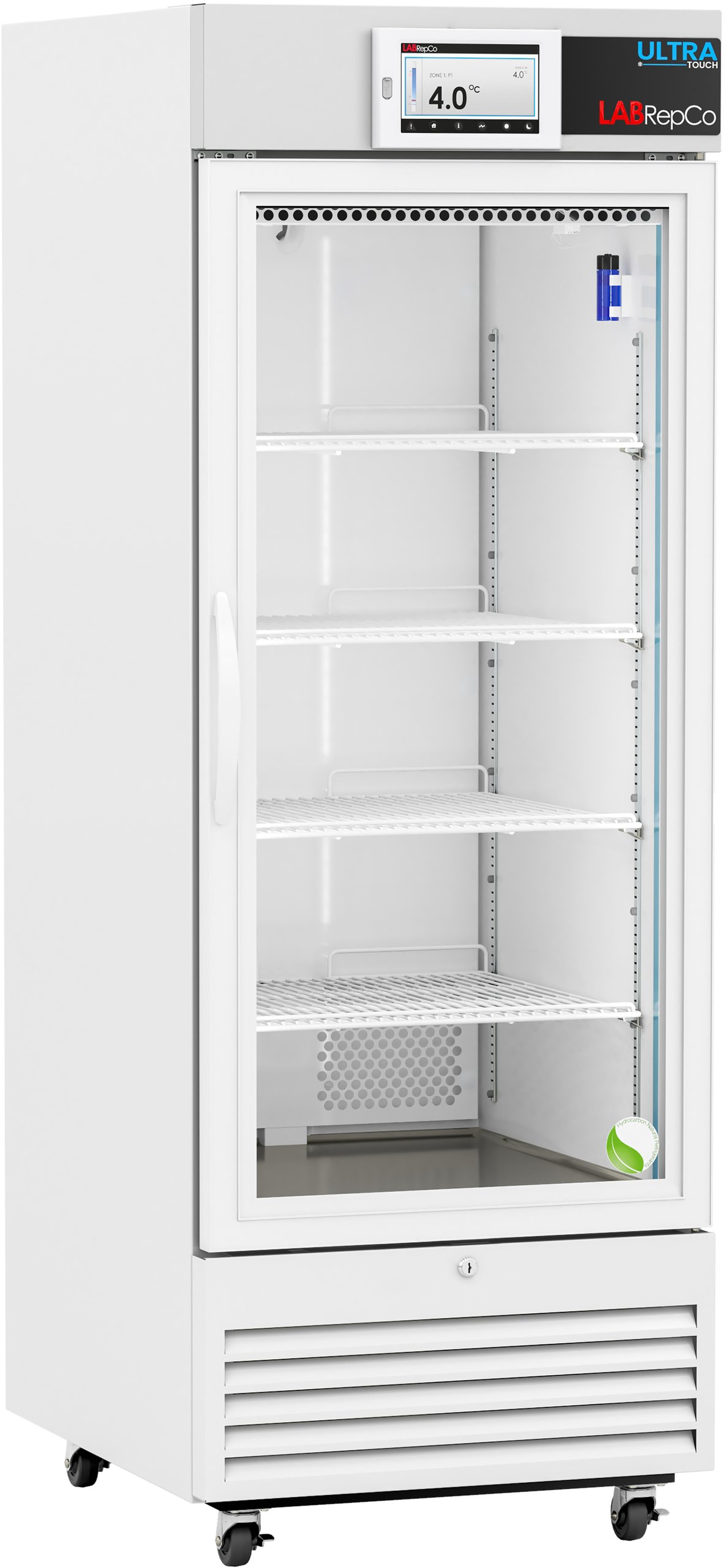

Item #: LHTV-26-HG
$9,548.00$7,351.96 -

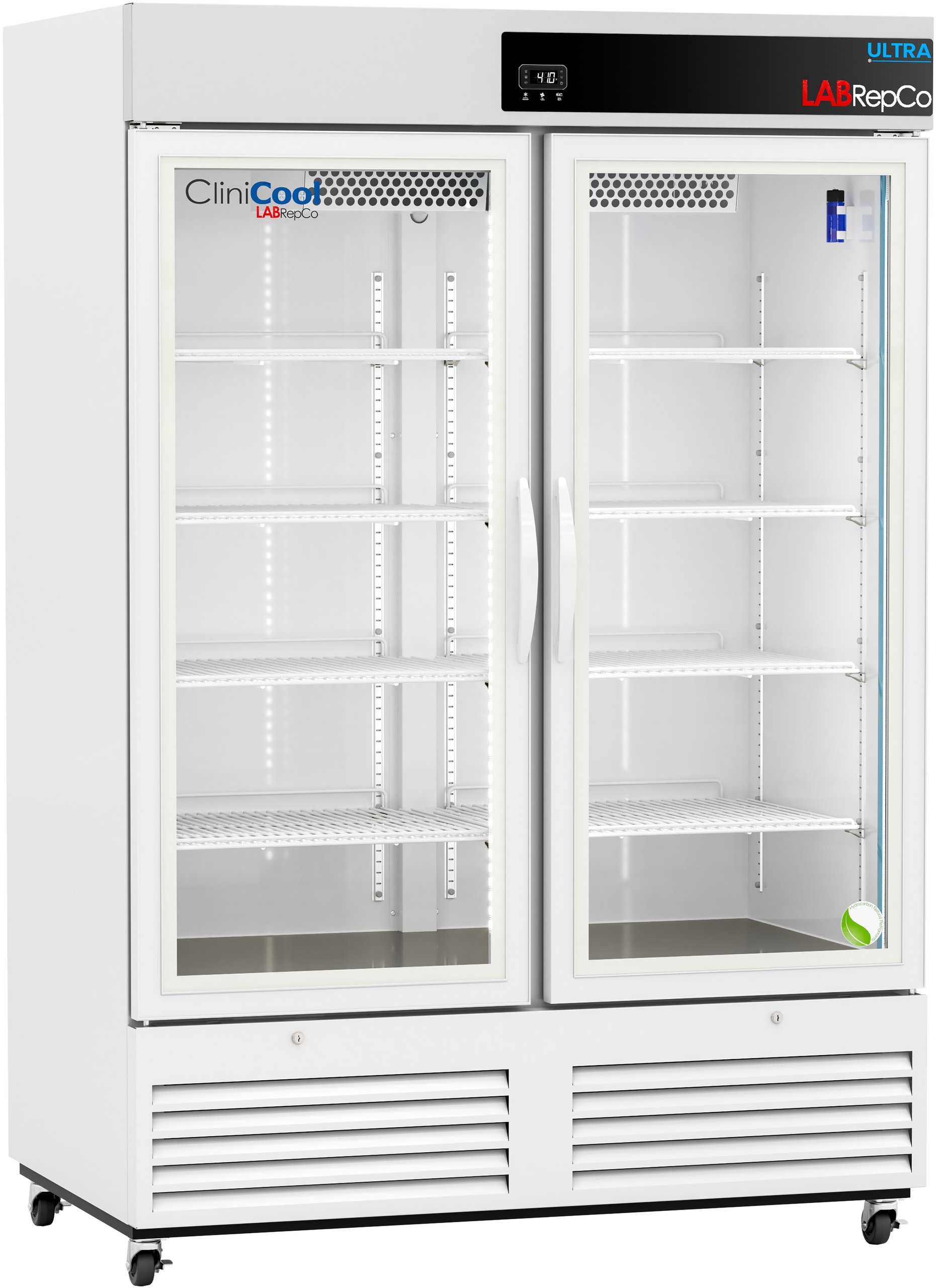

Item #: LHUV-49-HG-PH
