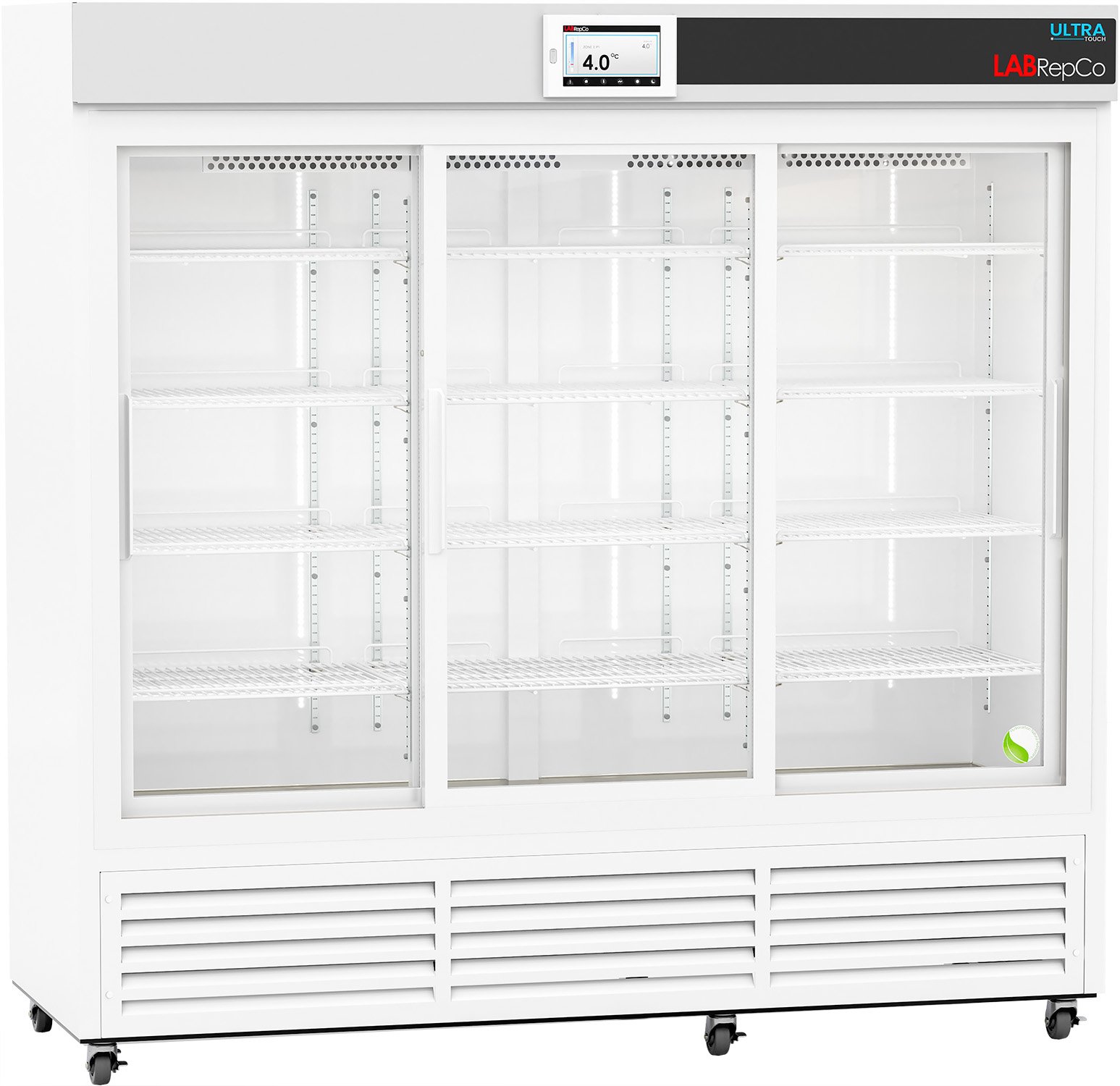

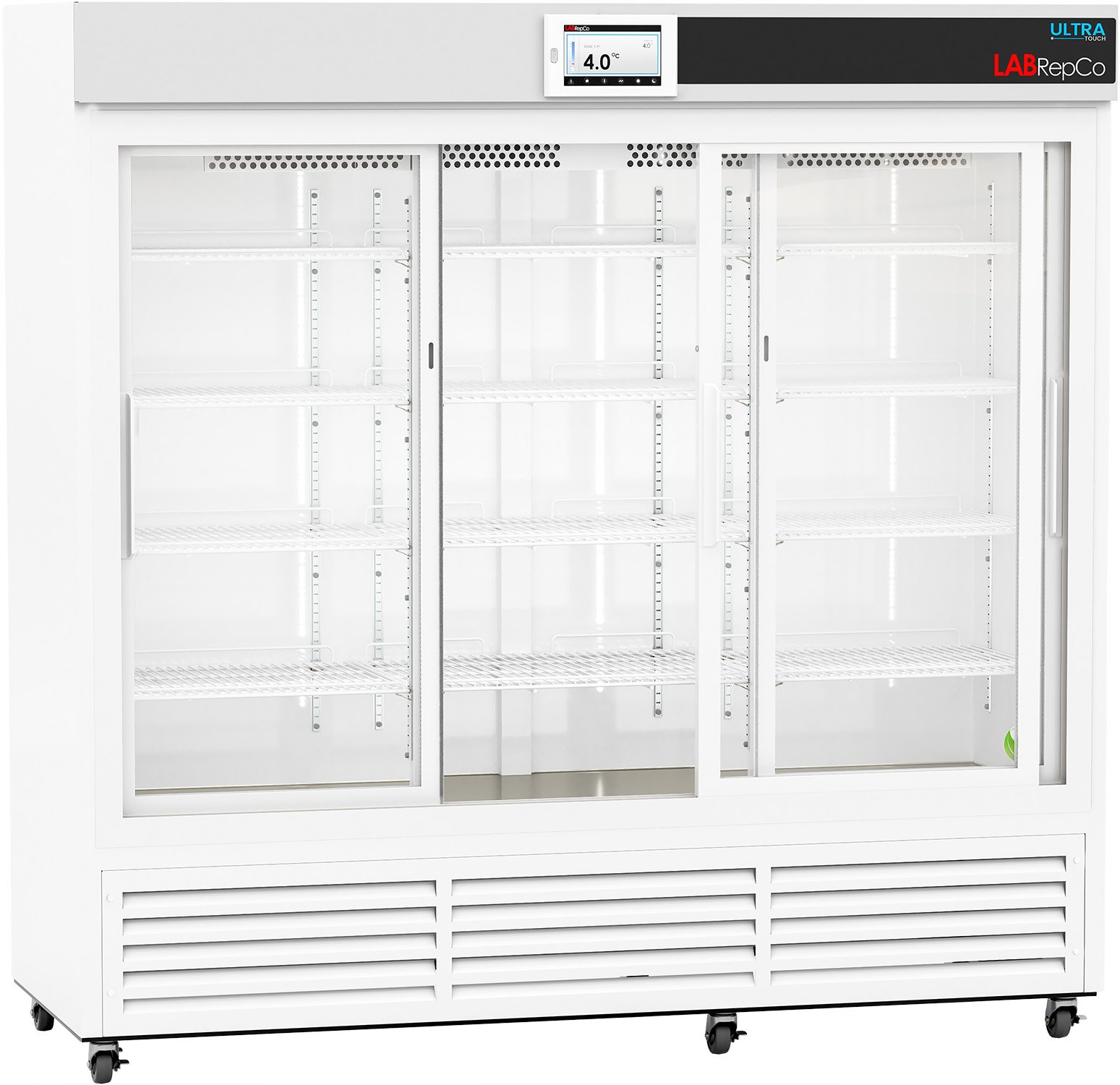

LabRepCo Ultra Touch Series 69 Cu. Ft. Laboratory Refrigerator with Variable Speed Compressor | Sliding Glass Door
Item#: LHTV-69-SGLabRepCo Ultra Touch Series 69 Cu. Ft. Laboratory Refrigerator with Sliding Glass Doors combines high-capacity sample storage with advanced touchscreen monitoring and energy-efficient performance. An 8-inch color touchscreen provides intuitive access to temperature data, alarm history, user permissions, and customizable settings, giving laboratory personnel greater control over critical storage conditions. The variable speed compressor and environmentally friendly R600a refrigerant deliver exceptional temperature stability while reducing energy consumption and operating costs. Featuring sliding glass doors, LED interior lighting, adjustable shelving, remote alarm contacts, and a keyed door lock, this refrigerator is designed to protect valuable samples while improving workflow efficiency in busy laboratory environments.
$19,564.00 $15,064.28
- Cu. Ft.: 69
- Door(s): Three (3) sliding glass doors, self closing
- Exterior Dimensions: 81” W x 31.5” D x 81.75” H with casters
- Interior Dimensions: 76"W x 24"D x 48.75"H
- Shelves: Twelve (12) adjustable shelves (adjustable in 1/2" increments)
- Mounting and Installation: Swivel casters - locking front casters
- Interior lighting: LED interior lights are safety shielded and switch controlled
- Airflow Management: Forced draft air circulation, patented air flow technology
- External probe access: 3/4" probe access port on rear wall
- Insulation: Cabinet is foamed-in-place with EPA compliant high-density urethane foam
- Exterior materials: White powder coated steel
- Access control: Keyed door lock
- General warranty: Three (3) year parts and labor warranty
- Compressor warranty: Seven (7) year compressor warranty
- Product Weight (lbs): 623
- Shipping Weight (lbs): 746
- Rated Amperage: 3 Amps
- Power Plug/Power Cord: NEMA 5-15 plug
- Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: ETL, C-ETL listed: certified to UL471 standard. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators.
- Maximum temperature variation (Cabinet air): +/- 1.5° C
- Stability (Simulator ballast): +/- 0.3° C
- Adjustable Temperature Range: 2° C to 15° C
- Energy Consumption (KWh/day): <3.5 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
- Average Heat Rejection (BTU/hr): <830 BTU/h
- Noise Pressure Level (dBA): 40 dBA or less installed
- Pull down time to nominal operating temp: <60 min (empty)
Performance Note: Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
- Condenser: Tube and grid, high efficiency fan forced air
- Evaporator: Fin and tube, high efficiency fan forced air
- Defrost: Cycle Defrost
- Controller technology: Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
- Battery Backup: High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
- Display Technology: 8" touchscreen featuring: Security and Access: Multi-level password protection: User, Supervisor, and Admin roles for access and control. Advanced controls: Customizable passwords/PINs: Ensures tailored access for your team. Calibration adjustments: fine-tune temperature offsets for precise measurements. visual and user interface: intuitive touch screen: pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable display settings: screen brightness, real-time temperature comparison to alarm points. and selectable °C/°F display with 0.1°C/0.2°F resolution.
- Display Communication: 4-20mA Output
- External alarm connection: Remote alarm contacts
- Display probe: Product simulator bottle with glass bead media
- Alarms: Audible & Visual Alarms: customizable sounds and volumes; silent mode with visual persistence. Alarm delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-back functionality. Audible alarms re-engage after a preset delay if the condition persists.
Disclaimers: Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
