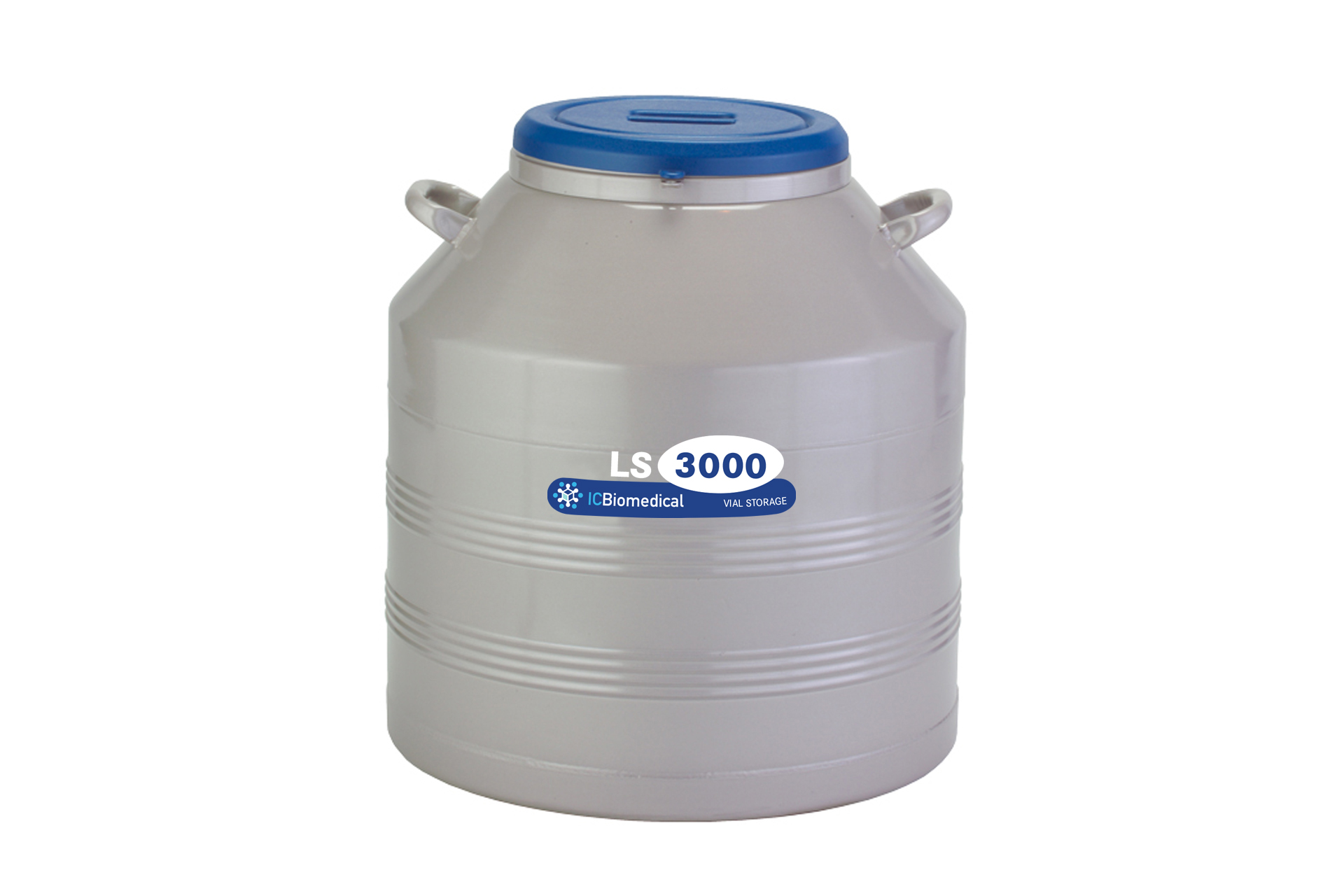

IC Biomedical LS3000 Cryogenic Sample Storage (Capacity: 3000 x 2.0 ml vials)
Item#: LS3000The IC Biomedical Laboratory Systems (LS) LN2 dewars are uniquely designed for large vial capacity in convenient box-type storage racks. They provide maximum holding times. This means lower per vial operating costs and fewer refills.
Please note: This product ships on a pallet
$5,007.00 $4,255.95
- Capacity (Liters.): 81
- Empty Weight: 70 lbs. (31.8 kg)
- Full Weight: 214.2 lbs. (97.4 kg)
- Neck Diameter: 8.5" (216mm)
- Outer Diameter: 26.9" (683mm)
- Total Height: 28.8" (731mm)
- Static Evaporation Loss Rate (Liters/day): 0.76
- Static Holding Time (Days): 106
- Canister O.D.: n/a
- Canister Height: n/a
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): n/a
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 5 years vacuum
*Comes complete with necktube core and racks.
**Boxes and vials are not included. See related products for available storage boxes (2 cases required) and vials (3 cases required).
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
(2) Work time is an arbitrary, reference-only value to estimate container performance under actual operating conditions.
(3) Without canisters or racks.
(5) 2.0 ml vial size: 12.5 mm O.D. internal thread.
(6) 81 cell boxes available.
- New rugged construction: ribbed high strength aluminum body, magniformed necktube design, and a more durable paint system
- Convenient storage systems: rack index location ring and internal location spider, and computer compatible box storage is ideal for simple inventory management
- Superior vacuum performance with super insulation provides maximum holding times
- Security - accessory low-level alarm is available with remote monitor capability
- Lockable lid
- Mobility - roller base is available
- Warranty: 5 years vacuum
-
Model 80 Phase Separator for IC Biomedical LN2 Systems (2 3/4″ x 1 3/8″ FNPT)
Item #: 1193-8C80$107.00$90.95 -

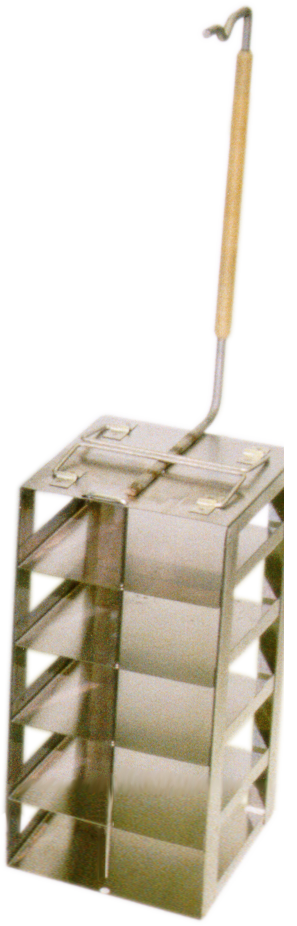

IC Biomedical 2″ Square Rack for LS3000 LN2 System (Holds 5 Boxes)
