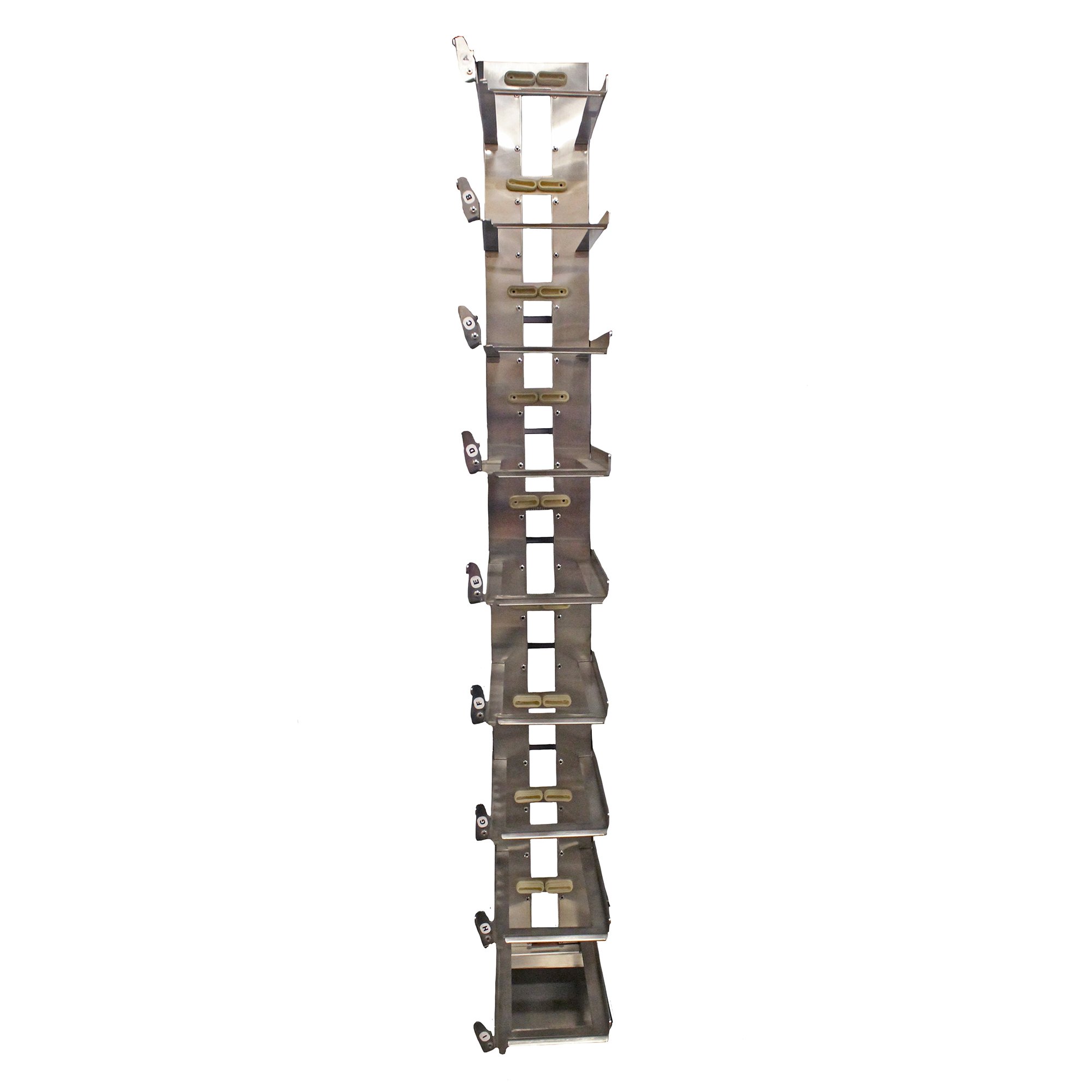

MACS Flex-Air Wall Mount Main Frame Ventilated Caging System
Item#: MAC-FA-F10W-7-BThe MACS Wall Mount Main Frame holds between 50-70 Flex-Air cages. The frame assembly has an upper mounting rail with brackets to hold the upper plenums. A lower mounting rail holds the cage stack bottom support. It also has a protective bumper rail. Frame includes upper main supply and exhaust plenums. This assembly includes the shelf bracket for the air handling unit fans. Appropriate hardware for installation is included. Available in your choice of 3 cage stack heights – 10, 9 or 8 high.
| Part Number | Dimensions W” x D” x H” | Dimensions Wcm x Dcm x Hcm | Cages | Cages Per Stack |
| MAC-FA-F10W-7-B | 67.125″x 18″ x 83.4″ | 170.5 x 45.7 x 211.8 | 70 | 10 |
| MAC-FA-F10W-6-B | 59″ x 18″ x 83.4″ | 149.7 x 45.7 x 211.8 | 60 | 10 |
| MAC-FA-F10W-5-B | 50.875″ x 18″ x 83.4″ | 129.2 x 45.7 x 211.8 | 50 | 10 |
IMPORTANT: INITIAL CLEANING
All components of the Alternative Design stainless steel product must be cleaned, sanitized and sterilized, where applicable, prior to being put into service. This unit is made primarily of 304 stainless steel. Use care when cleaning to prevent corrosion that can shorten useful life. Cleaning solutions which contain high levels of chlorine are not recommended for stainless steel parts.
Caster Maintenance
Caster used on this equipment was chosen for its suitability in applications where frequent washdowns are necessary. It is also well suited for applications exposed to heat, cleaning agents, steam, caustic solutions or other corrosive agents, which could cause rust and contamination. After washing and/or autoclaving, check casters for proper operation. Check the axle nut to ensure it is still tight (125 inch/pound is recommended). If the axle and/or swivel bearing has to be lubricated, use a high temp grease.
- Frame made from 304 stainless steel
- The Wall Mount Main Frame holds between 50-70 Flex-Air mouse cages
- Frame assembly has an upper mounting rail with brackets to hold the upper plenums
- Lower mounting rail holds the cage stack bottom support
- Protective bumper rail on frame
- Frame includes upper main supply and exhaust plenums
- Assembly includes the shelf bracket for the air handling unit fans
- Appropriate hardware for installation is included
- Available in your choice of 3 cage stack heights – 10, 9 or 8 high
The 5-year warranty includes:
* Individually Ventilated Caging (IVC) rack frames and fabricated components
* All other stainless steel fabricated caging systems
* Fabricated material handling, storage and processing equipment made of stainless steel
