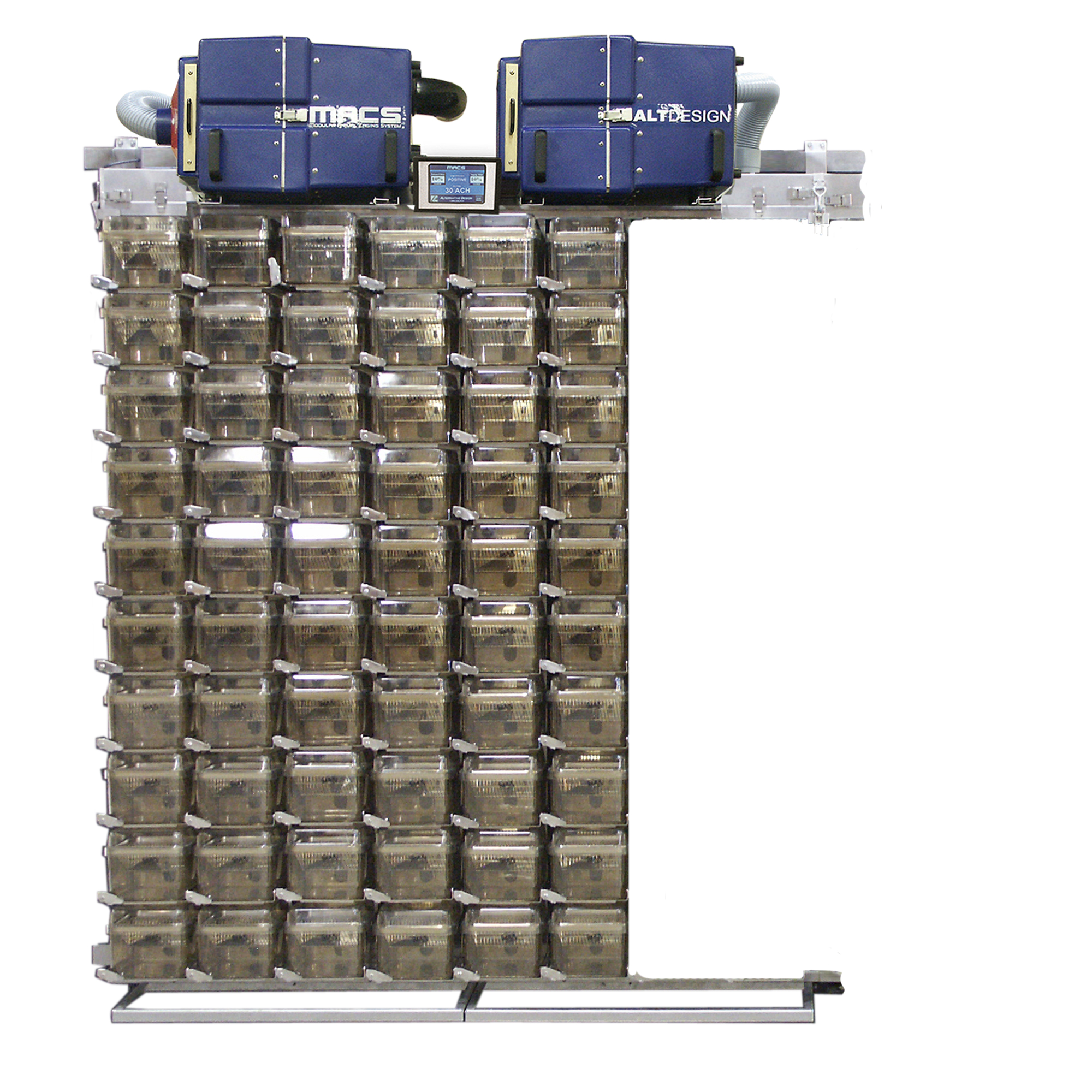

MACS Gentle-Air Wall Mount Main Frame Ventilated Caging System

Item#: MAC-GA-F10W

The MACS Gentle-Air Wall Mount Main Frame Ventilated Caging System is a space-saving solution for housing 60 to 80 Gentle-Air style mouse cages, including Dura Cage, Uni Cage, or Max 75 models in 65 or 75 square inch sizes. Constructed from 304 stainless steel, the frame features an upper mounting rail with brackets for supply and exhaust plenums, a lower rail for cage stack support, and a protective bumper rail. It includes a shelf bracket for the air handling unit fans and all necessary installation hardware. Available in 8, 9, or 10 cage stack heights, this system comes with a five-year warranty for long-term reliability.

Request a Quote

Supplier: Alternative Design

Part Number	Dimensions W” x D” x H”	Dimensions Wcm x Dcm x Hcm	Cages	Cages Per Stack
MAC-GA-F10W-8	67.125″x 18″ x 83.4″	170.5 x 45.7 x 211.8	80	10
MAC-GA-F10W-7	59″ x 18″ x 83.4″	149.7 x 45.7 x 211.8	70	10
MAC-GA-F10W-6	50.875″ x 18″ x 83.4″	129.2 x 45.7 x 211.8	60	10
MAC-GA-F10W-5	42.75″ x 18″ x 83.4″	170.5 x 45.7 x 211.8	50	10
MAC-GA-F10W-4	34.625″ x 18″ x 83.4″	149.7 x 45.7 x 211.8	40	10
MAC-GA-F10W-3	25.6″ x 18″ x 83.4″	129.2 x 45.7 x 211.8	30	10

IMPORTANT: INITIAL CLEANING

All components of the Alternative Design stainless steel product must be cleaned, sanitized and sterilized, where applicable, prior to being put into service. This unit is made primarily of 304 stainless steel. Use care when cleaning to prevent corrosion that can shorten useful life. Cleaning solutions which contain high levels of chlorine are not recommended for stainless steel parts.

Caster Maintenance

Caster used on this equipment was chosen for its suitability in applications where frequent washdowns are necessary. It is also well suited for applications exposed to heat, cleaning agents, steam, caustic solutions or other corrosive agents, which could cause rust and contamination. After washing and/or autoclaving, check casters for proper operation. Check the axle nut to ensure it is still tight (125 inch/pound is recommended). If the axle and/or swivel bearing has to be lubricated, use a high temp grease.

Frame made from 304 stainless steel
The Wall Mount Main Frame holds between 60-80 Gentle-Air style mouse cages (either 65 or 75 square inch floor sizes) including Dura Cage, Uni Cage or Max 75
Frame assembly has an upper mounting rail with brackets to hold the upper plenums
Lower mounting rail holds the cage stack bottom support
Protective bumper rail on frame
Frame includes upper main supply and exhaust plenums
Assembly includes the shelf bracket for the air handling unit fans
Appropriate hardware for installation is included
Available in your choice of 3 cage stack heights – 10, 9 or 8 high

The 5-year warranty includes:

* Individually Ventilated Caging (IVC) rack frames and fabricated components
* All other stainless steel fabricated caging systems
* Fabricated material handling, storage and processing equipment made of stainless steel
