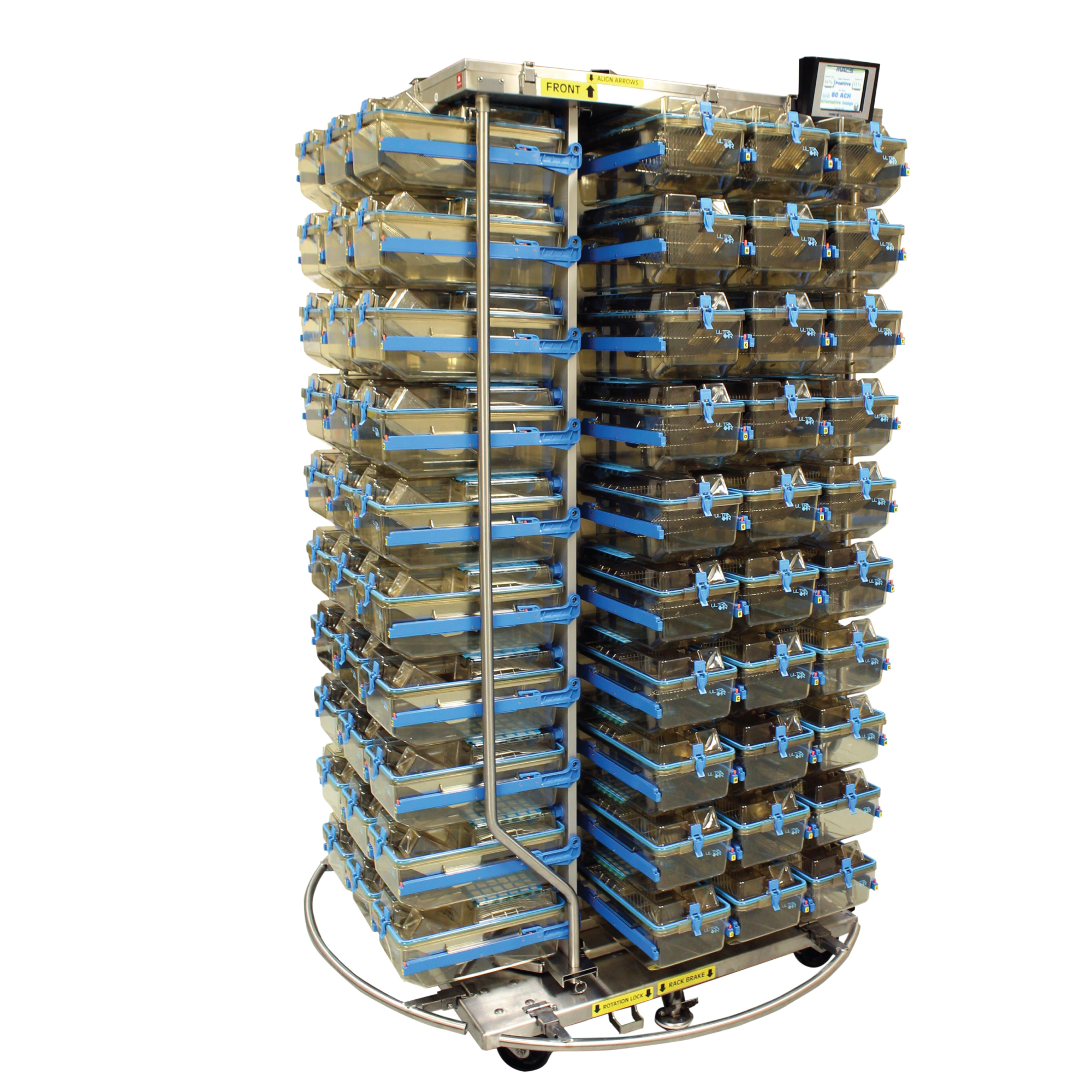

MACS Ultra-Air Rotary Ventilated Caging System

Item#: MAC-UA-F10R-12

The MACS Ultra-Air Rotary Ventilated Caging System is a versatile solution for rodent housing, designed to maximize space efficiency and improve lab workflow. Built from durable 304 stainless steel, this rotating unit holds up to 120 Ultra-Air cages and allows 180-degree access from a single location. Its compact 58″ turning diameter and 5″ locking casters make it easy to maneuver into tight spaces, fitting through doors 42″ or wider. The autoclavable frame, five-year warranty, and optional auto water system ensure long-lasting performance in demanding research environments.

Request a Quote

Supplier: Alternative Design

Part Number	Dimensions W” x D” x H”	Dimensions Wcm x Dcm x Hcm	Cages	Cages Per Stack
MAC-UA-F10R-12	39.29″ x 39.29″ x 82.88″*	99.8″ x 99.8 x 210.5	120	10
MAC-UA-F9R- 12	39.29″ x 39.29″ x 75.88″*	99.8″ x 99.8 x 191.77	108	9
MAC-UA-F8R-12	39.29″ x 39.29″ x 68.88″*	99.8″ x 99.8 x 173.99	96	8

IMPORTANT: INITIAL CLEANING

All components of the Alternative Design stainless steel product must be cleaned, sanitized and sterilized, where applicable, prior to being put into service. This unit is made primarily of 304 stainless steel. Use care when cleaning to prevent corrosion that can shorten useful life. Cleaning solutions which contain high levels of chlorine are not recommended for stainless steel parts.

Caster Maintenance

Caster used on this equipment was chosen for its suitability in applications where frequent washdowns are necessary. It is also well suited for applications exposed to heat, cleaning agents, steam, caustic solutions or other corrosive agents, which could cause rust and contamination. After washing and/or autoclaving, check casters for proper operation. Check the axle nut to ensure it is still tight (125 inch/pound is recommended). If the axle and/or swivel bearing has to be lubricated, use a high temp grease.

Frame made from 304 stainless steel
Rotary will hold up to 120 standard size Ultra-Air cages
Unit rotates 180 degrees in either direction with a 58″ turning diameter
5″ casters with a foot brake to secure the unit in place
Fits into tight spaces within rooms to increase cages per square feet
From one location, the laboratory technician can access all 120 cages
Fits through doors 42″ or wider
Frame is autoclavable

The 5-year warranty includes:

* Individually Ventilated Caging (IVC) rack frames and fabricated components
* All other stainless steel fabricated caging systems
* Fabricated material handling, storage and processing equipment made of stainless steel

Options include:

Auto water – options available from either Edstrom or Systems Engineering Lab Group

MACS Ultra-Air Rotary Ventilated Caging System
