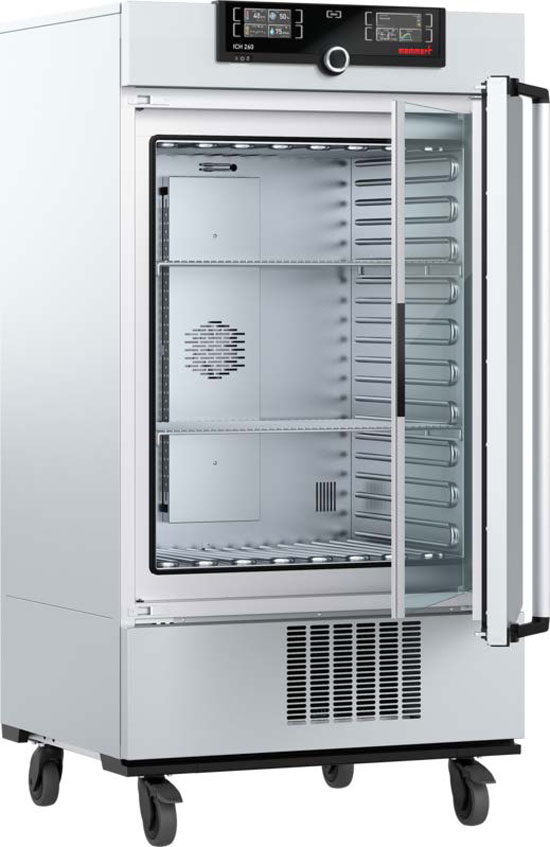

Memmert ICH260 Stability Climate Chamber | 9.04 cu. ft.
Item#: ICH260115VThe Memmert ICH260 is a 9.04 cu. ft. stability climate chamber for controlled temperature and humidity testing. Its 256 L chamber supports stability studies and environmental testing that require uniform, repeatable conditions.
The chamber is mounted on lockable casters and provides flexible internal shelf positioning for larger workloads. Memmert control technology is designed to maintain homogeneous temperature and humidity throughout the chamber for dependable long-term testing.
$21,468.00
- Volume: 9.04 cu. ft. | 256 L
- Interior Dimensions W x H x D in (mm): 25.20" x 31.50" x 19.67" (640 x 800 x 500 mm)
- Exterior Dimensions W x H x D in (mm): 32.44" x 61.10" x 28.90" (824 x 1552 x 734 mm)
- Housing: rear zinc-plated steel
- Installation: on lockable castors
- Max. number of internals: 9
- Max. loading of chamber: 440.9 lbs (200 kgs)
- Max. loading per internal: 44.09 lbs (20 kgs)
- Electrical data: 115 V, 50/60 Hz approx. 1450 W (230V model available, please inquire)
Temperature Specs:
- Setting temperature range: -10 to +60 °C
- Working temperature range without humidity: -10°C up to 60°C
- Working temperature range with humidity: 10°C up to 60°C
- Setting accuracy temperature: 0.1°C
- Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Humidity Specs:
- Humidity supply with distilled water from external tank by self-priming pump
- Humidification by hot steam generator
- Active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 %
- Stainless Steel Exterior: Scratch resistant, hygienic and durable.
- Warranty: A limited 2 year warranty is included with the option to purchase an extra year.
- ControlCOCKPIT: TwinDISPLAY. Adaptive multi-functional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
- Language Setting: German, English, Spanish, French, Polish, Czech, Hungarian
- Adjustable Parameters: Temperature (Celsius or Fahrenheit), relative humidity, program time, time zones, summertime/wintertime
- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
- Function SetpointWAIT: The process time does not start until the set temperature is reached
- Calibration: Three freely selectable values each, temperature/humidity/CO2
- Temperature control: mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature
- AutoSAFETY: additionally integrated over- and under temperature protection “ASF”, automatically following the setpoint value at a preset tolerance range, alarm in case of over- or under temperature, heating is switched off in case of overtemperature, the compressor in case of under temperature
- Alarm: with visual and acoustic alarm in case of over-/under temperature and under humidity, open door and empty water tank
- Temperature control: over- and under temperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, adjustable at the controller
- Autodiagnostic system: integral fault diagnostics for temperature and humidity control
Request a Proposal
