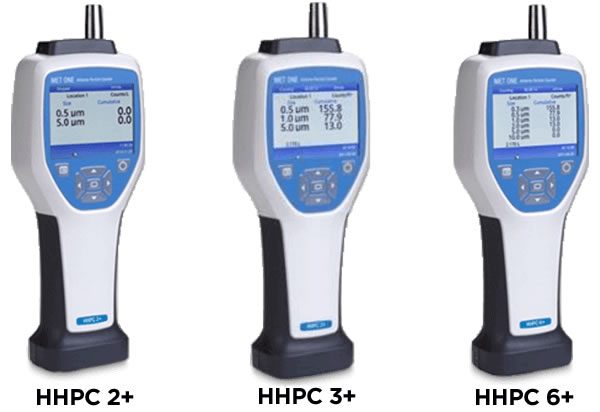

MET ONE HHPC+ Series Handheld Particle Counters
Item#: METONEHHPCThe MET ONE HHPC+ Series handheld particle counters from Beckman Coulter allow easy ISO Class 5 to 7 monitoring in hard-to-reach places. Lightweight with a high-resolution display, these handheld counters are ideal for routine monitoring of controlled environments and mini-environments, easy filter leak troubleshooting for particle-contamination issues, spot-checking critical areas, and targeting particle generation within process equipment.
- Performance- ISO 14644-1 class 5 compliant 0.3 µm samples in a minute
- Industry Standards- 21 CFR Part 11, ISO 14644-1:2015, CE, FCC
- Particle Size Analysis Range- 0.30|10.00|μm / 0.3|10|μm
- Coincidence Loss- 10% at 4,000,000 per cubic foot
- Sample Volume- 10.00|µm
- Throughput- 83 L per minute
- Zero Count- Conforms to JIS B9921 (1 count or less in 5 min; 95% UCL)
- Counting Efficiency- 50% at 0.3 µm (100% for particles > 0.45 µm)
- Count Alarms Display & Cycles- User-defined alarm counts, Raw counts: N/CF, N/CM, N/L in cumulative or differential mode
- Item Specifications Referenced- 2089310-06
Standards
- ISO 14644-1 Class 5 (FED STD Class 100 or higher) compliant sampling
- Counting efficiency to ISO 21501-4
- Zero count level to JIS B9921
Data Management
- On-the-spot process profiling for fast particle event tracking
- Easy network connectivity for 21 CFR Part 11 compliance
- Store up to 10,000 records
- Convenient charge cradle for access to particle counting data via Ethernet or USB cable
- Data download via Ethernet
- Connectivity through USB and memory card
Ergonomic Design
- Easy-to-read high resolution display
- Fully configurable display
- Slim & lightweight design (0.7 kg) for single-hand use
Applications
- Routine monitoring in high-tech manufacturing & GMP-regulated cleanrooms
- Particle contamination troubleshooting in critical processing areas
- Spot checking & troubleshooting in mini-environments & workstations
