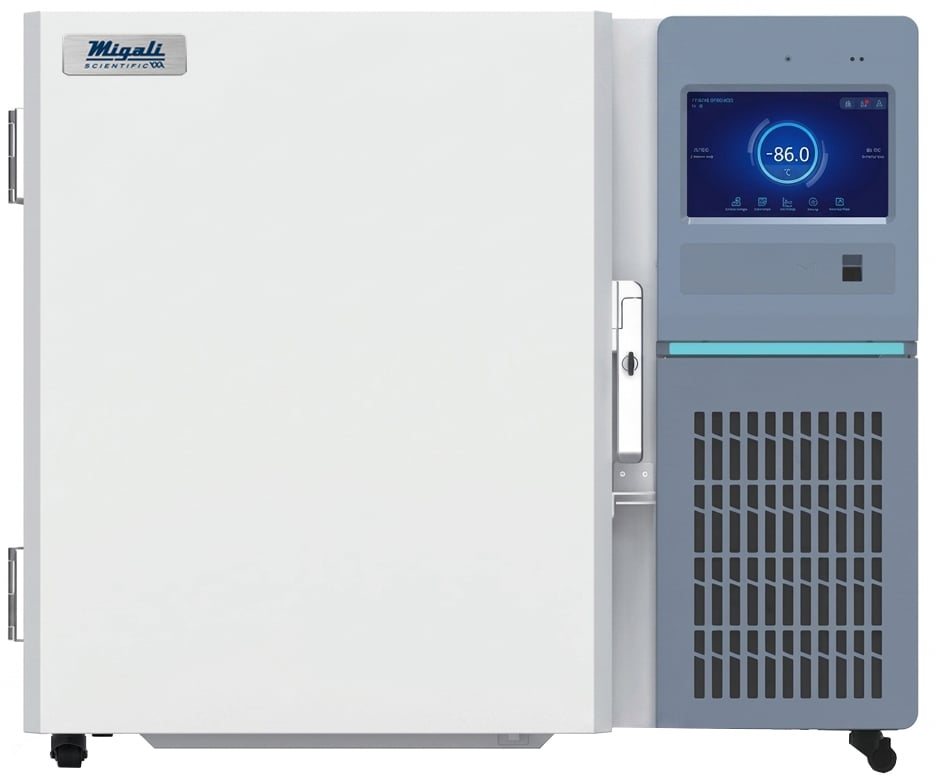

Migali EVO-U39-ULTA High Performance -86C Ultra-low Temperature Freezer | 3.9 cu. ft. (110 Liters)
Item#: EVO-U39-ULTAMigali EVO-U39-ULTA High Performance -86°C Ultra-Low Temperature Freezer provides reliable ultra-low temperature storage in a compact 3.9 cu. ft. undercounter design, making it ideal for laboratories, research facilities, biobanks, and clinical environments where space is limited. Its dual variable-speed cascade refrigeration system delivers exceptional temperature uniformity and rapid recovery while consuming just 4.48 kWh/day, helping reduce operating costs without compromising sample protection. The 10-inch UltraVU™ full-color touchscreen offers intuitive monitoring with interactive temperature graphing, USB data logging, and comprehensive alarm management, while a glycol-filled product simulator provides accurate sample temperature monitoring. Built with vacuum insulated panels (VIP), a keyed door lock, optional electronic access, four-hour battery backup, and a 5-year compressor, parts, and labor warranty, this freezer delivers dependable performance for protecting valuable biological samples.
$10,116.00 $7,785.00
- Cabinet Type: Upright
- Capacity: 3.9 cu ft (110 L)
- Internal Size (W*D*H): 37.6" W x 26.1" D x 32.1"H
- External Size(W*D*H): 17.13"W x 16.77" D x 22.91"H
- Net Weight (lbs): 263
- Shipping Weight (lbs): 304
- Insulation: Vacuum Insulated Panels (VIP) & Polyurethane
- Exterior & Interior Finish: Powder Coated Steel
- Casters: 4
- Doors: 1 Hinged, Solid Door
- Access Port: Yes
- Shelves: 1, Stainless Steel
- LED Health Light: Yes - Green Ok / Yellow Warning / Red Urgent
Powder - Temperature Range: -40~-86℃
- Set-Point: -80℃
- Refrigeration System: Direct Cooling, Cascade
- Compressor: Variable Speed, 2,000 to 4,500 RPM
- Condenser Type: Finned Condenser
- Expansion Device: Capillary Tube
- Evaporator Type: Cold Wall
- Defrost Method: Manual
- Refrigerant: R600a / R1150 / R50
- Uniformity | °C: (+/-) 1.6
- Recovery to -80°C after 1 min door opening | min: 17.5
- Stability | °C: 2
- Energy consumption | kWh/day: 4.48
- Noise emission | dB: 47
- Pull-down time to -80°C | min: 103
- Amperage: 9.4
- Electrical Power: 115 V
- Facility Supply Rating: Branch circuit with earth ground, compliant with plug ratings and local electrical codes. 110-120V AC: 20 A (minimum)
- Power Plug/Power Cord Length: NEMA 5-20P; 8.2ft Cord
- Certifications: UL
- Application Environment: Non-hazardous
- Ambient Temperature & R.H.: 80°F / 27°C / 55% R.H.
- Warranty: 5 years compressor, 5 years parts, 5 year labor
*Clearance Requirements Minimum of 3” behind back and along sides of unit for proper ventilation
- Premium -86°C performance in a compact undercounter design
- User Interface: UltraVU™ 10 inch full color touch screen
- Power Switch: On/Off
- Controller Type: Custom Machine Microprocessor
- Control Sensor: PT-1000
- Communication Port: Remote alarm dry contacts
- Access: Log Yes
- Interactive Temperature Graph: Yes
- Product Simulator: Yes, Glycol Solution
- Battery Backup: Yes, 4 hours for alarm and data logger
- Advanced Monitoring:
- Large 10-inch UltraVU™ full-color touchscreen
- Interactive temperature graphing
- USB data logging with up to 12 months of exportable data
- Comprehensive alarm package:
- High/Low Temperature
- Power Failure
- Door Ajar
- Four-hour battery backup for alarms and data logging
- Product simulator using glycol solution for accurate sample temperature monitoring
- Keyed door lock
- Padlock-compatible latch
- Password-protected access
- Optional electronic access with PIN, fingerprint, or ID card authentication
- Vacuum Insulated Panels (VIP) with polyurethane insulation
- Compact footprint fits beneath standard laboratory benches
Request a Proposal
Related Products
-
Item #: MDF-MU549DHL-PA
$11,599.00$7,655.00 - Item #: MDF-DU703VXHA-PA
-
Item #: EVO-U18-LTA
$7,930.00$6,299.00 - Item #: NU-99100JGA $9,400.00
-
Item #: L2X-5-ULT85
$8,402.62$7,226.25 - Item #: ULUFP50MV $11,780.31

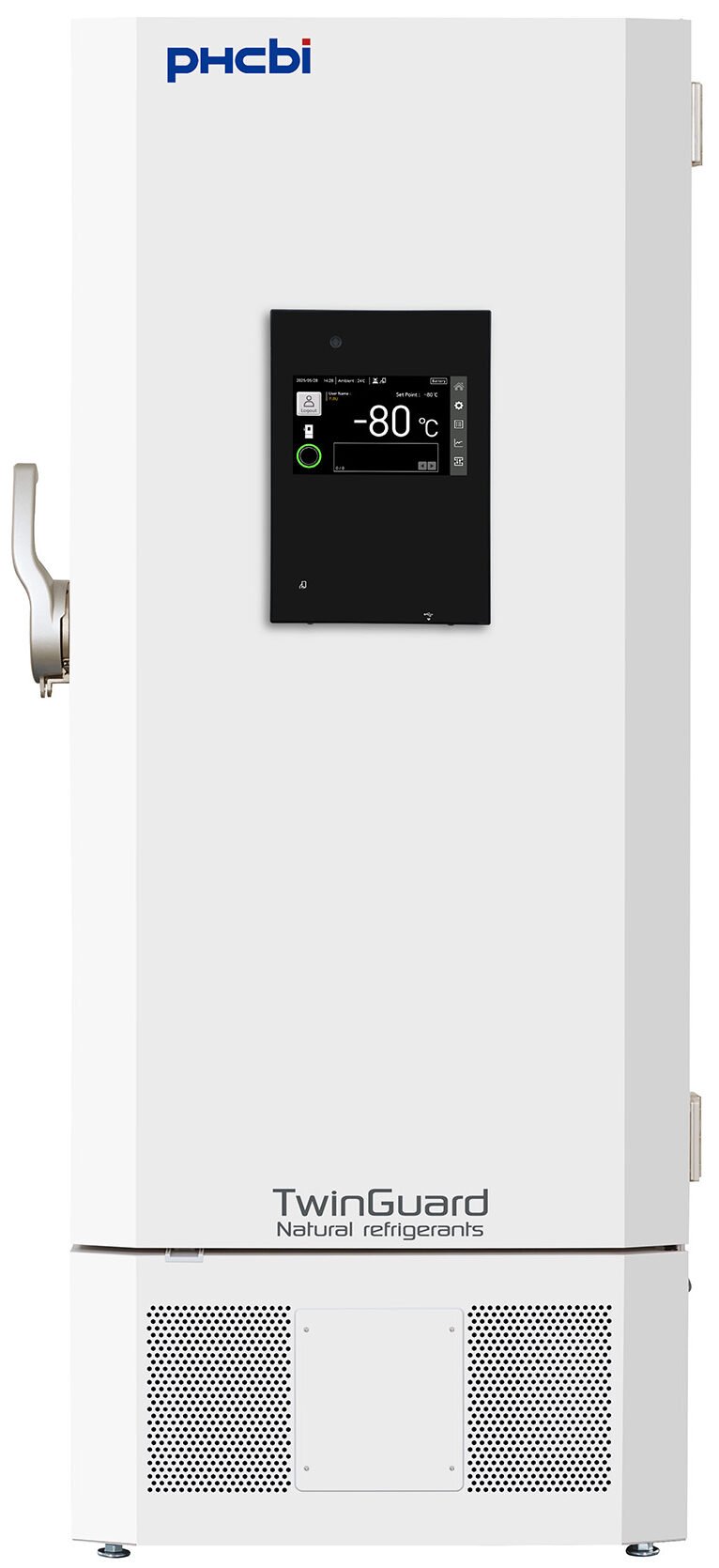

- Item #: MDF-DU503VXHA-PA
-
