- Cu. Ft.: 49
- Exterior dimensions: 54" W x 35 3/4" D x 80 3/4" H with casters; 77 1/4" H without casters
- Interior dimensions: 49 1/8" W x 25 1/2" D x 59" H
- Two swing glass door, self-closing, right hinged, not reversible
- Six, 304 stainless steel sliding tray shelves
- Temperature set-point range: 20°C to 60°C
- Temperature control: +/- 0.1°C
- Temperature stability: +/- 0.5°C from 20°C to 60°C (Range dependent per test protocol)
- Temperature uniformity: +/- 1°C from 20°C to 60°C (Range dependent per test protocol)
- Humidity set point range: 15 to 95% RH
- Humidity control: +/- 0.1%RH
- Humidity Stability: +/- 3% RH (Range dependent per test protocol)
- Cabinet is foamed-in-place with EPA compliant high density; polyurethane foam insulation
- White-powder coated steel exterior
- 304 stainless steel interior
- Plenum air distribution
- Floor drain
- Top mounted, variable speed compressor
- Hydrocarbon natural refrigerant
- Ultrasonic humidification
- Multi-element, independent proportional electric heating
- Temp sensor Type: NTC
- RH sensor Type: Capacitive
- Condensate evaporation
- Shielded, switched interior LED lighting
- Heavy duty door handles
- Magnetic door gaskets for positive seal
- Keyed door locks
- Probe access port (3/4")
- 4 swivel casters (3 1/2")
- 18 months parts and labor warranty
- 3 year compressor warranty
- 10-60 PSI demineralized water supply required
- 115V, 60 Hz, 12.4 Amps, 1/3 HP
- ETL Listed
- Shipping weight: 594 lbs.

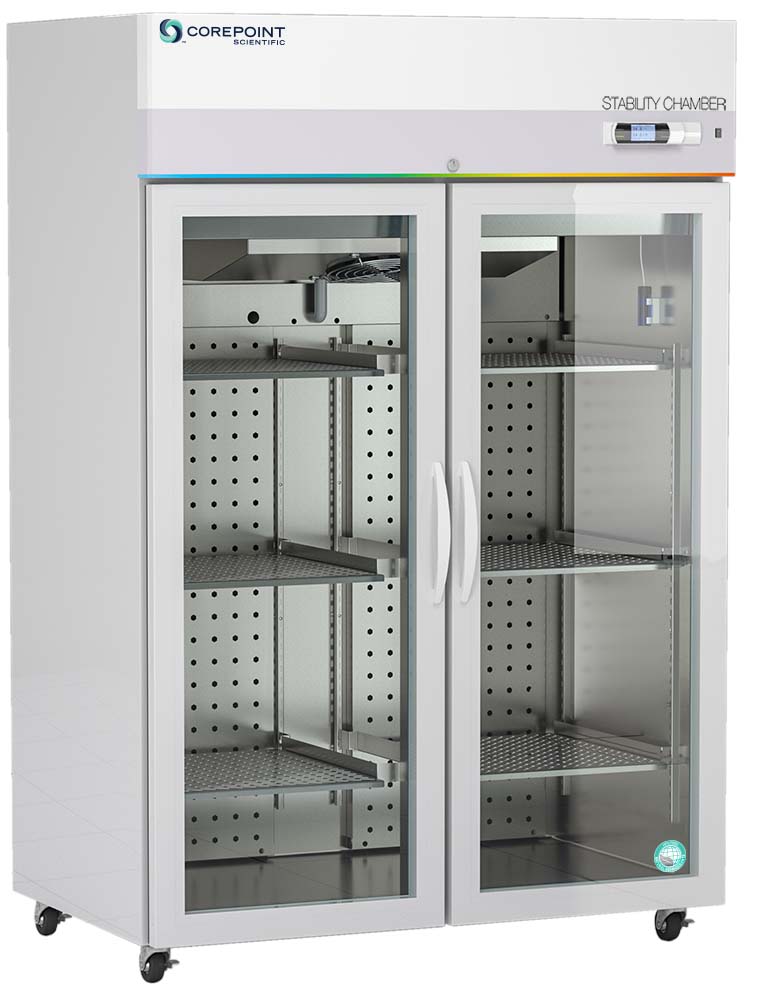

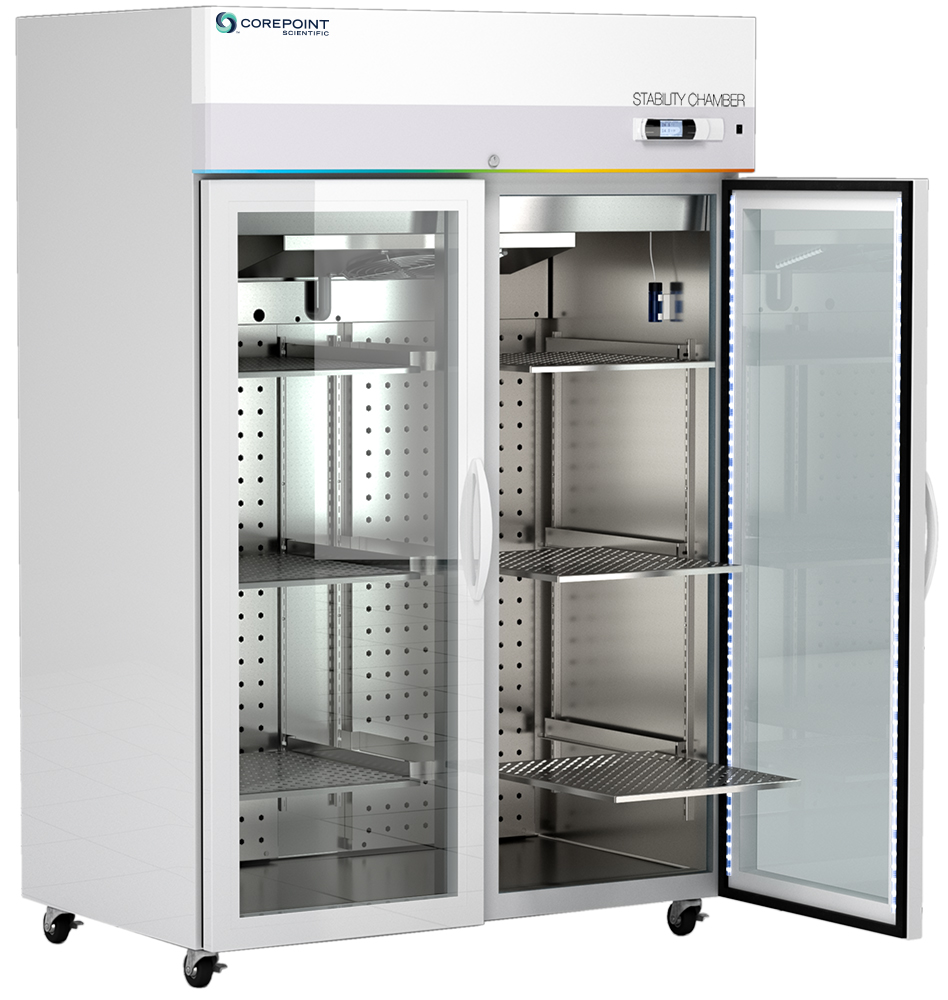

Corepoint Scientific Temperature and Humidity Stability Chamber Double Glass Door 49 Cu. Ft.
Item#: NSRI492WSG-0H$31,415.00 $28,273.50
- Proportional integral derivative (PID) controller with LCD display
- Programmable ramp and soak
- Process phase graphic animations
- USB data port
- RS-485 communication (MODBUS-RTU)
- Real time clock
- Battery backup
- Event logs: 100
- Visual alarm indicator
- Audible alarm indicator
- Process phase specific temp alarm
- Process phase specific humidity alarm
- Power failure alarm
- Sensor failure alarm
Request a Proposal
