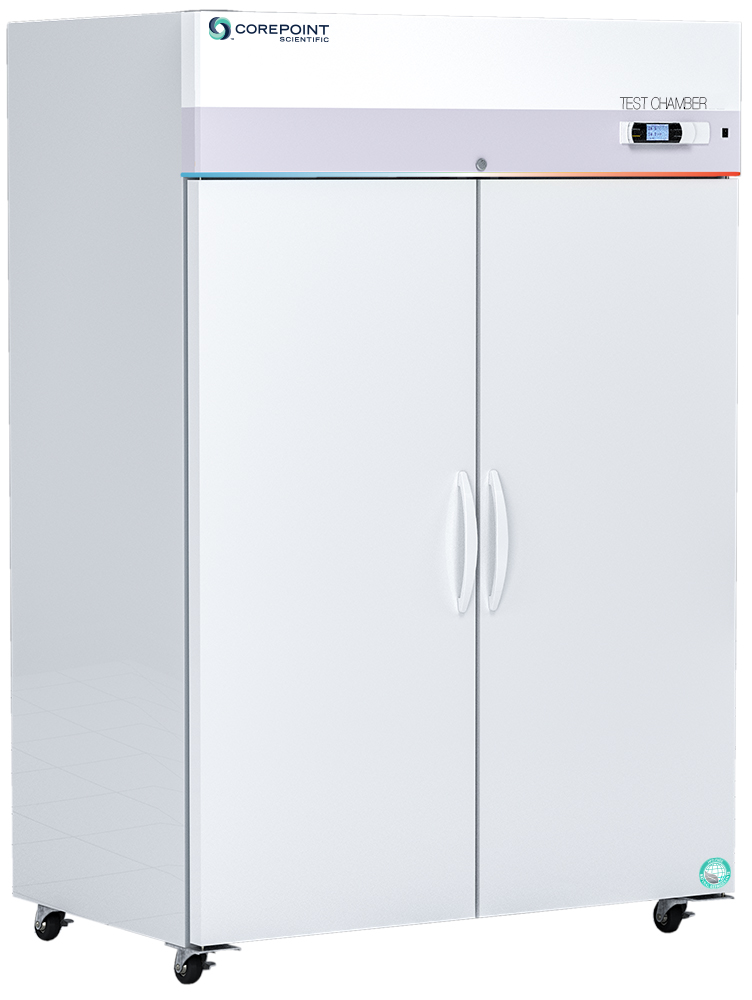

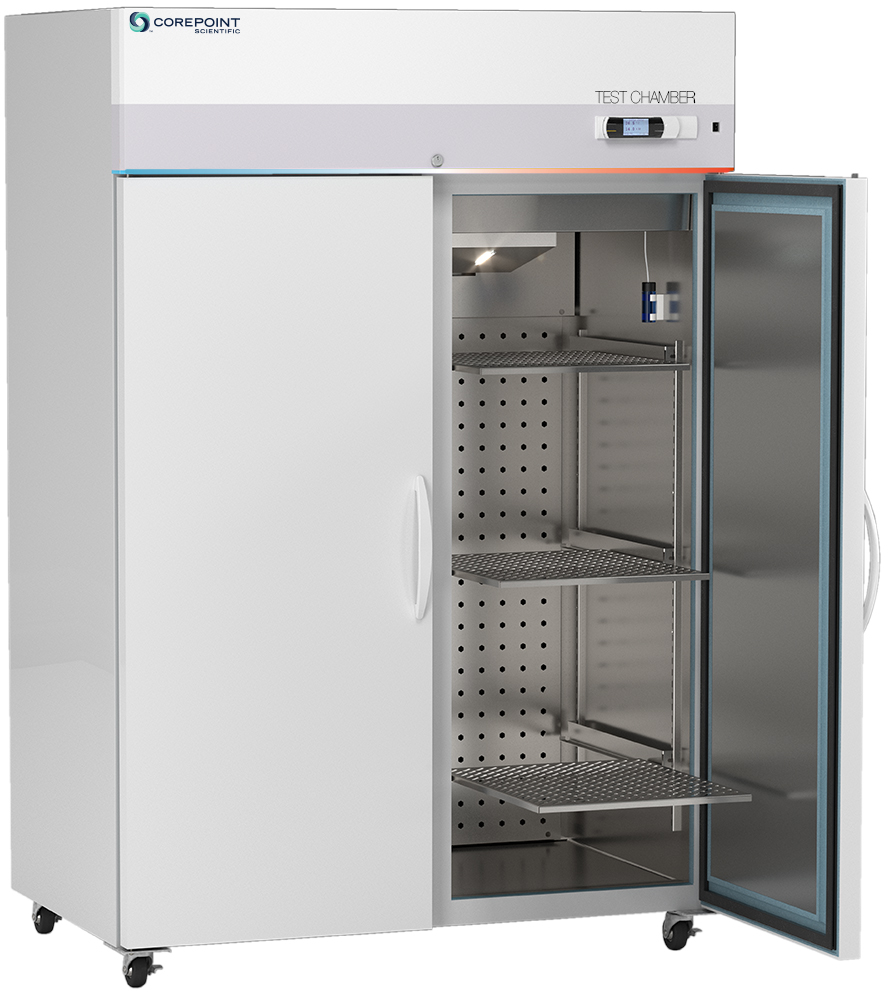

Corepoint Scientific Temperature Test Chamber Double Solid Door 49 Cu. Ft.
Item#: NSRI492WSW-0$21,332.00 $18,132.00
Supplier: Corepoint Scientific
Tags: Stability Chambers, Temperature Test Chambers- Cu. Ft.: 49
- Exterior dimensions: 54" W x 36 3/8" D x 81 1/2" H with casters; 77 1/4" H without casters
- Interior dimensions: 49 1/8" W x 25 1/2" D x 59" H
- Two solid swing doors, self-closing, right hinged, not reversible
- Six, 304 stainless steel sliding tray shelves
- Temperature setpoint range: 4°C to 70°C
- Temperature control: +/- 0.1°C
- Temperature stability: +/- 0.5°C from 4°C to 70°C (Range dependent per test protocol)
- Temperature uniformity: +/- 1°C from 4°C to 70°C (Range dependent per test protocol)
- Cabinet is foamed-in-place with EPA compliant high density; polyurethane foam insulation
- White-powder coated steel exterior
- 304 stainless steel interior
- Plenum air distribution
- Top mounted, variable speed compressor
- Hydrocarbon natural refrigerant
- Multi-element, independent proportional electric heating
- Temp sensor Type: NTC Condensate evaporation
- Condensate evaporation
- Shielded, switched interior LED lighting
- Heavy duty door handle
- Magnetic door gasket for positive seal
- Keyed door lock
- Probe access port (3/4")
- 4 swivel casters (3 1/2")
- 18 months parts and labor warranty
- 5 year compressor warranty
- 115V, 60 Hz, 12 Amps, 1/3 HP
- ETL Listed
- Shipping weight: 560 lbs.
- Proportional integral derivative (PID) controller with LCD display
- Programmable ramp and soak
- Process phase graphic animations
- USB data port
- RS-485 communication (MODBUS-RTU)
- Real time clock
- Battery backup
- Event logs: 100
- Visual alarm indicator
- Audible alarm indicator
- Process phase specific temp alarm
- Power failure alarm
- Sensor failure alarm
Corepoint Scientific NSRI492WSW-0 Exterior Cutsheet
DownloadCorepoint Scientific NSRI492WSW-0 Interior Cutsheet
DownloadCorepoint Scientific Temperature Test Chamber User Manual
DownloadCorepoint Scientific NSRI492WSW-0 Test Chamber Data Sheet
Download-
